Electrical Diagrams

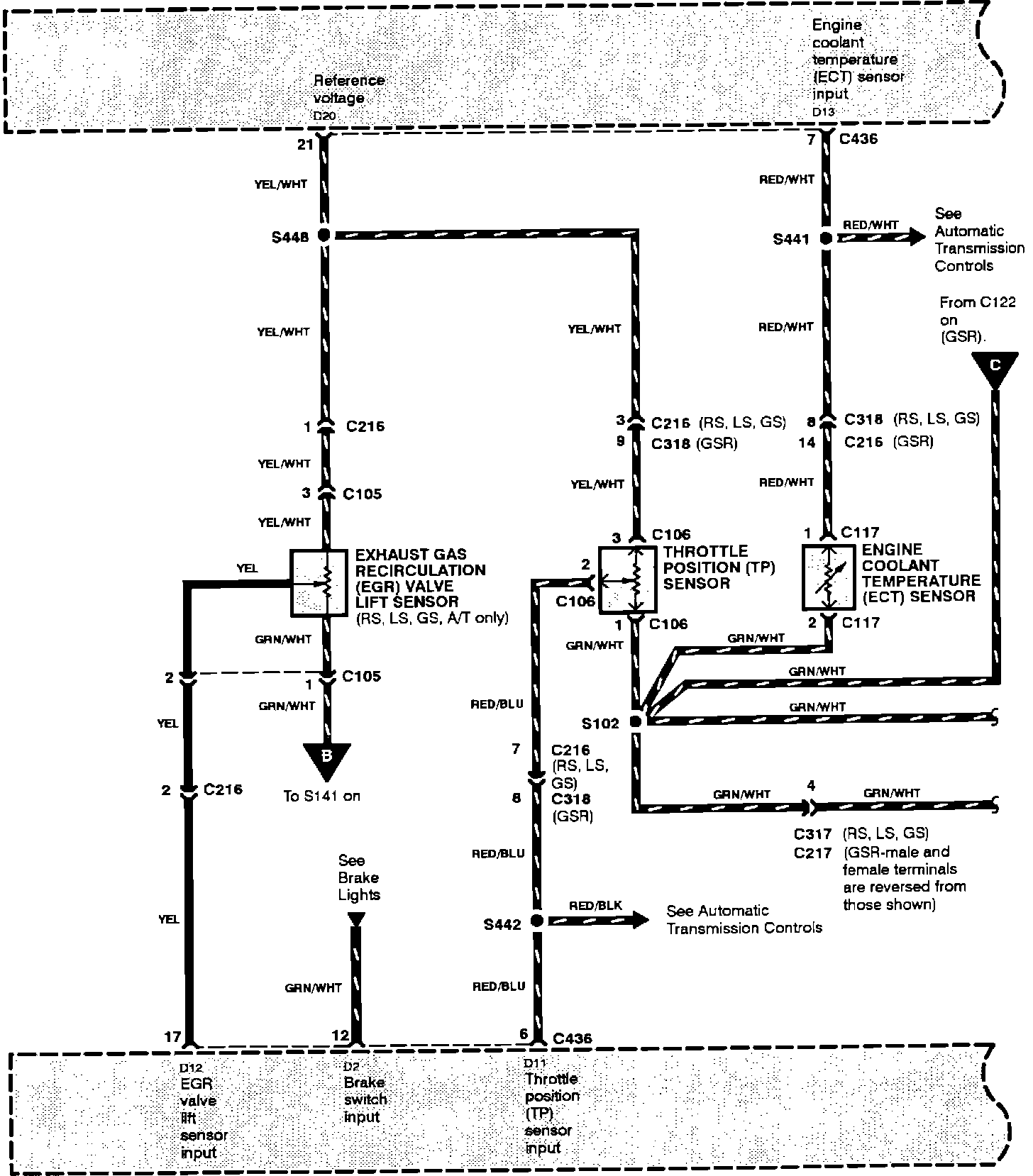

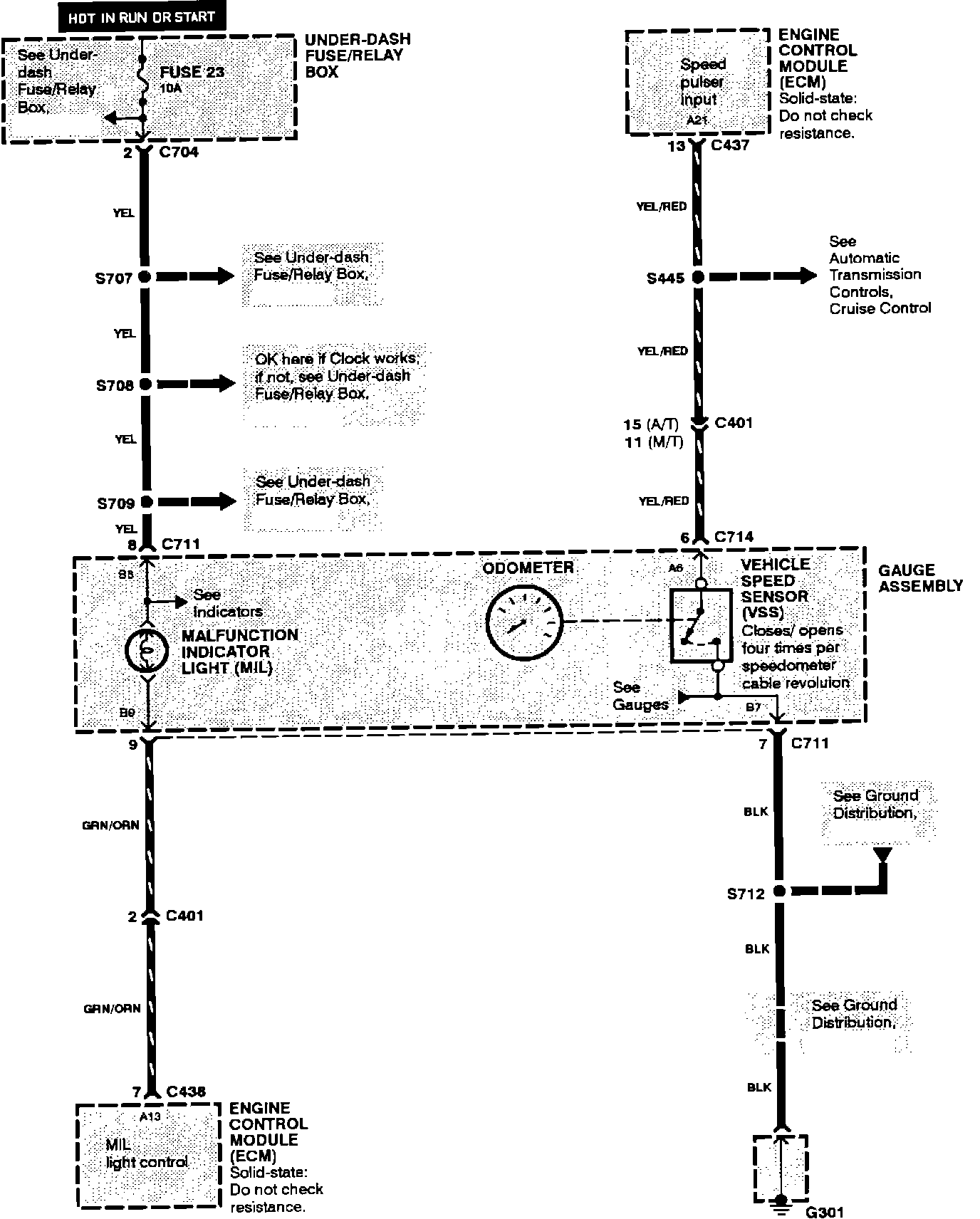

Programmed Fuel Injection (PGM-FI) System:

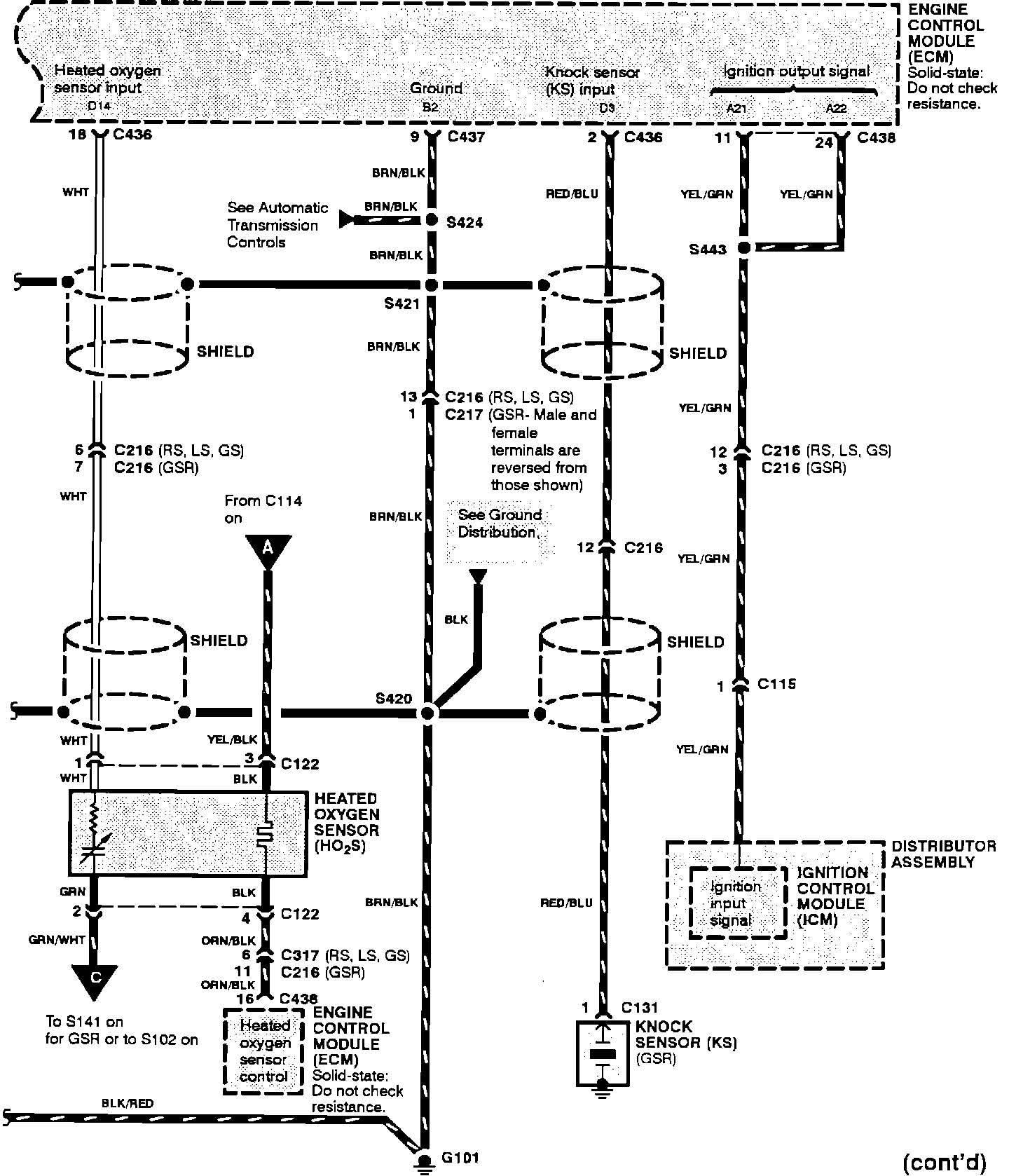

Programmed Fuel Injection (PGM-FI) System:

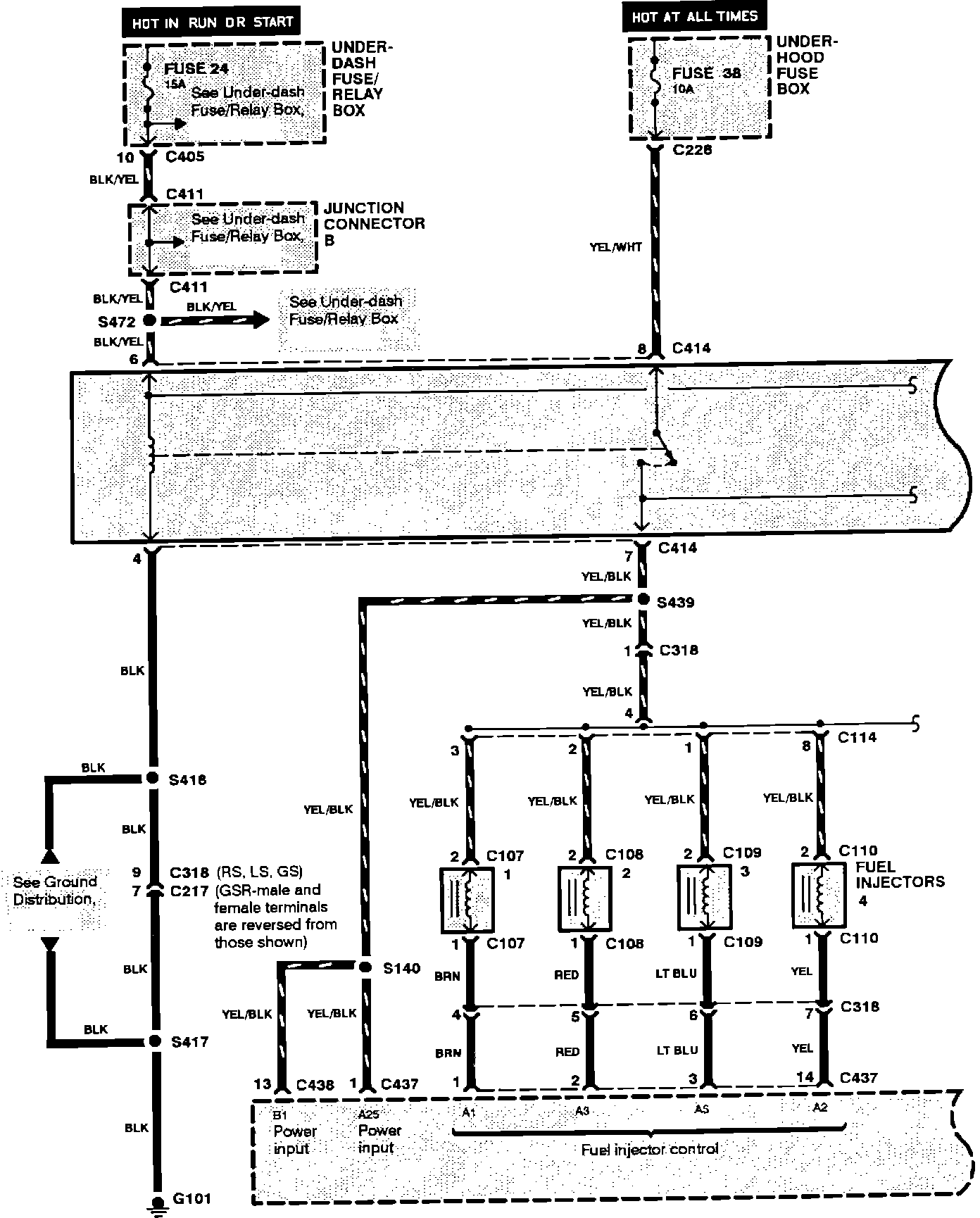

Programmed Fuel Injection (PGM-FI) System:

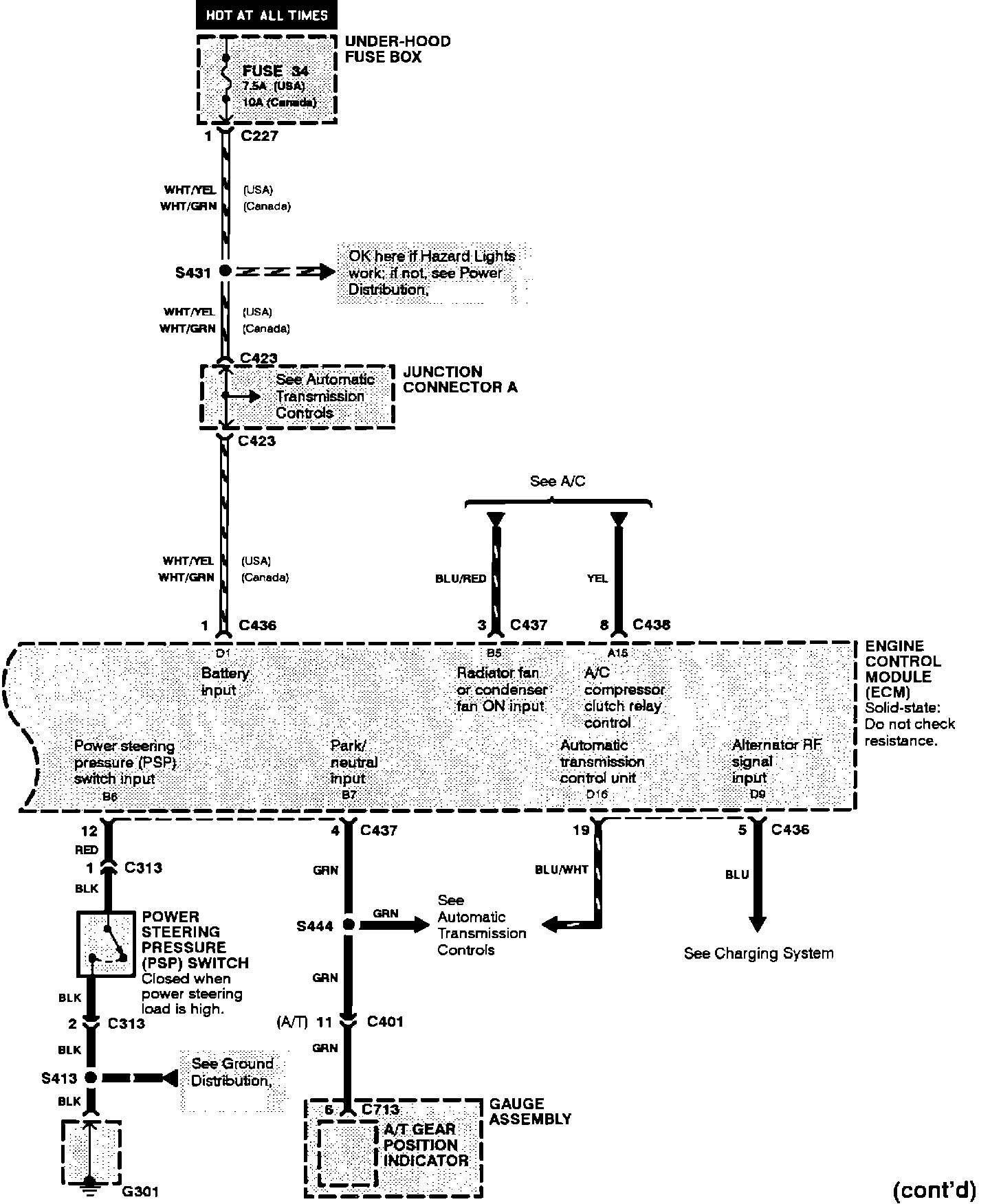

Programmed Fuel Injection (PGM-FI) System:

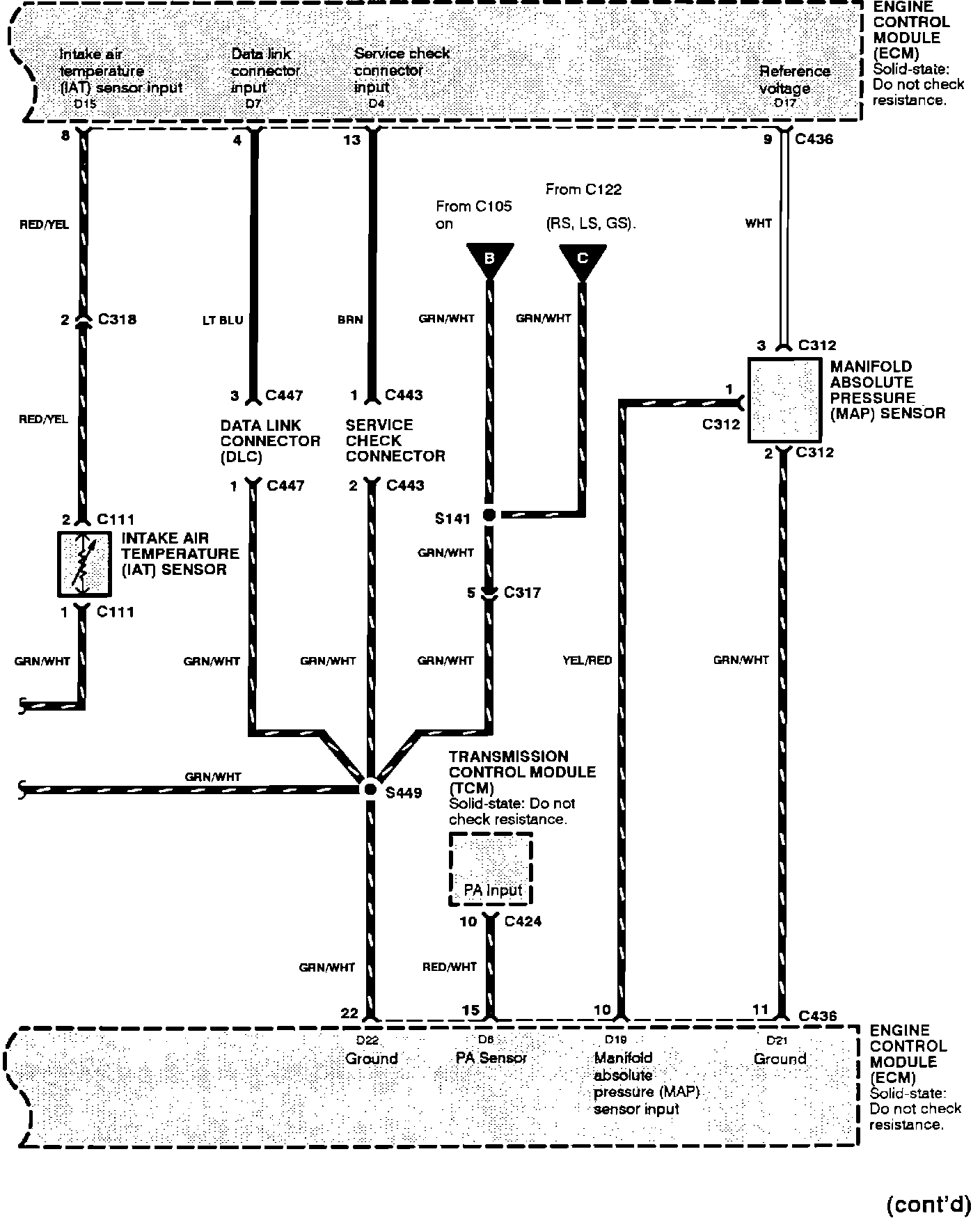

Programmed Fuel Injection (PGM-FI) System:

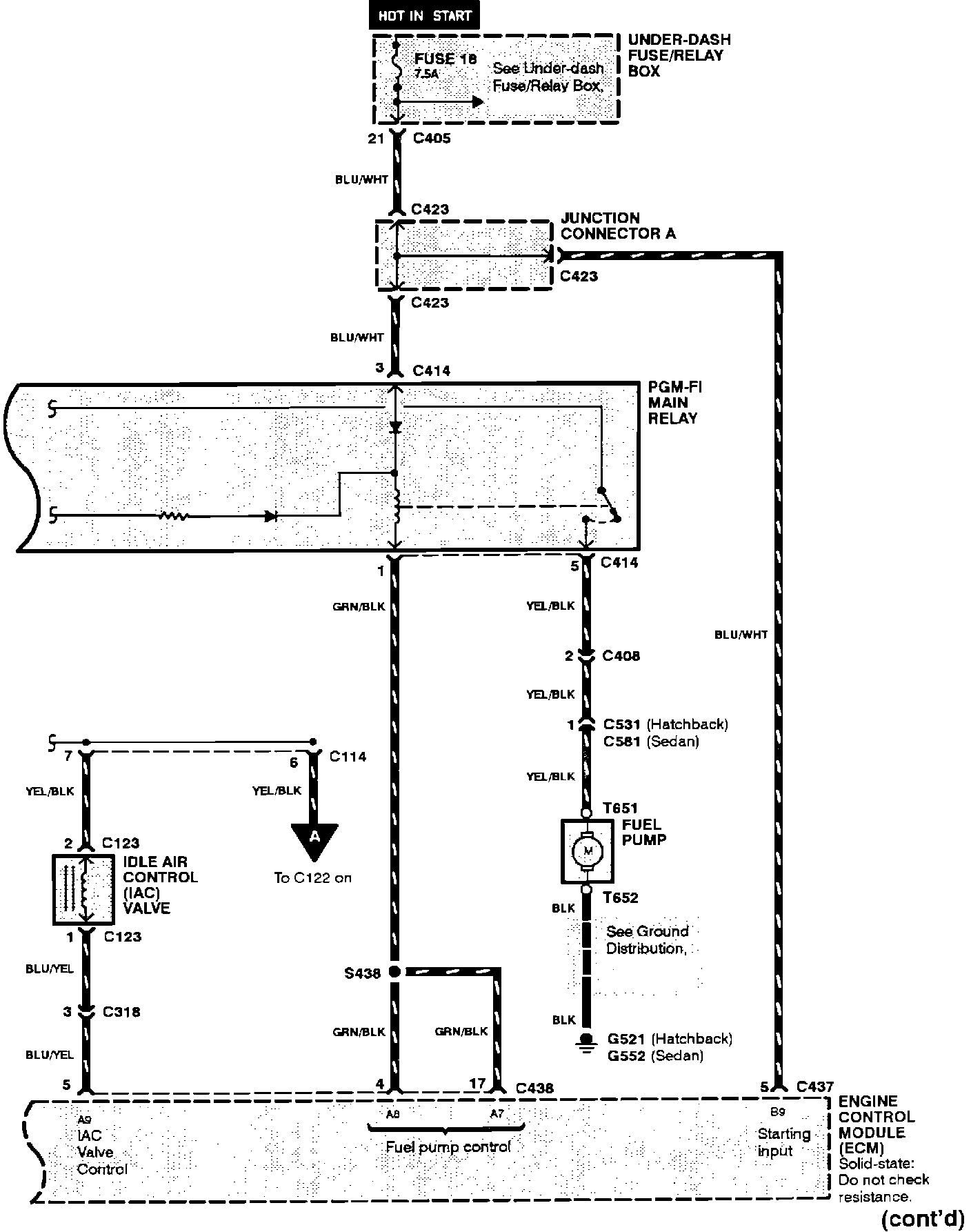

Programmed Fuel Injection (PGM-FI) System:

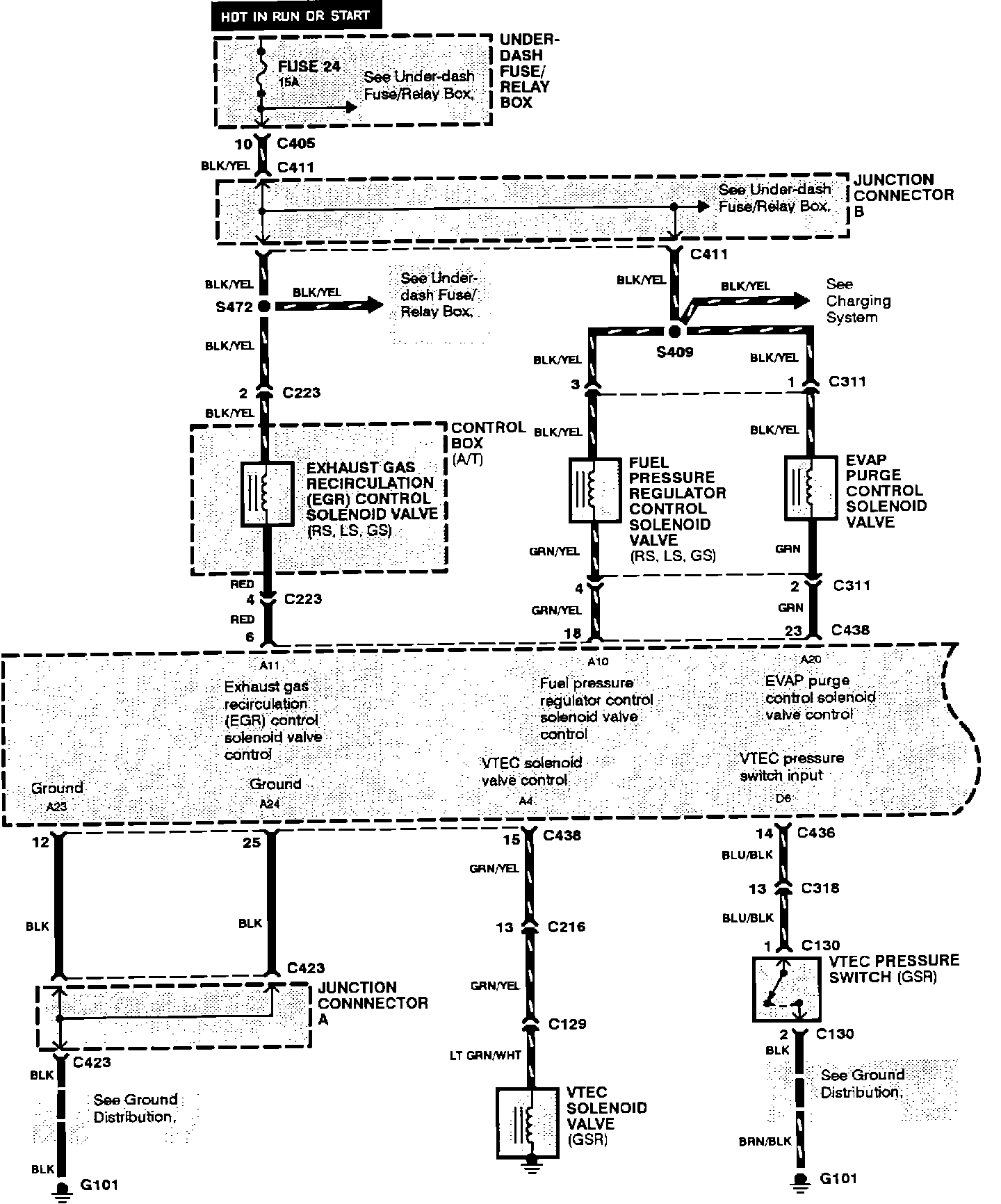

Programmed Fuel Injection (PGM-FI) System:

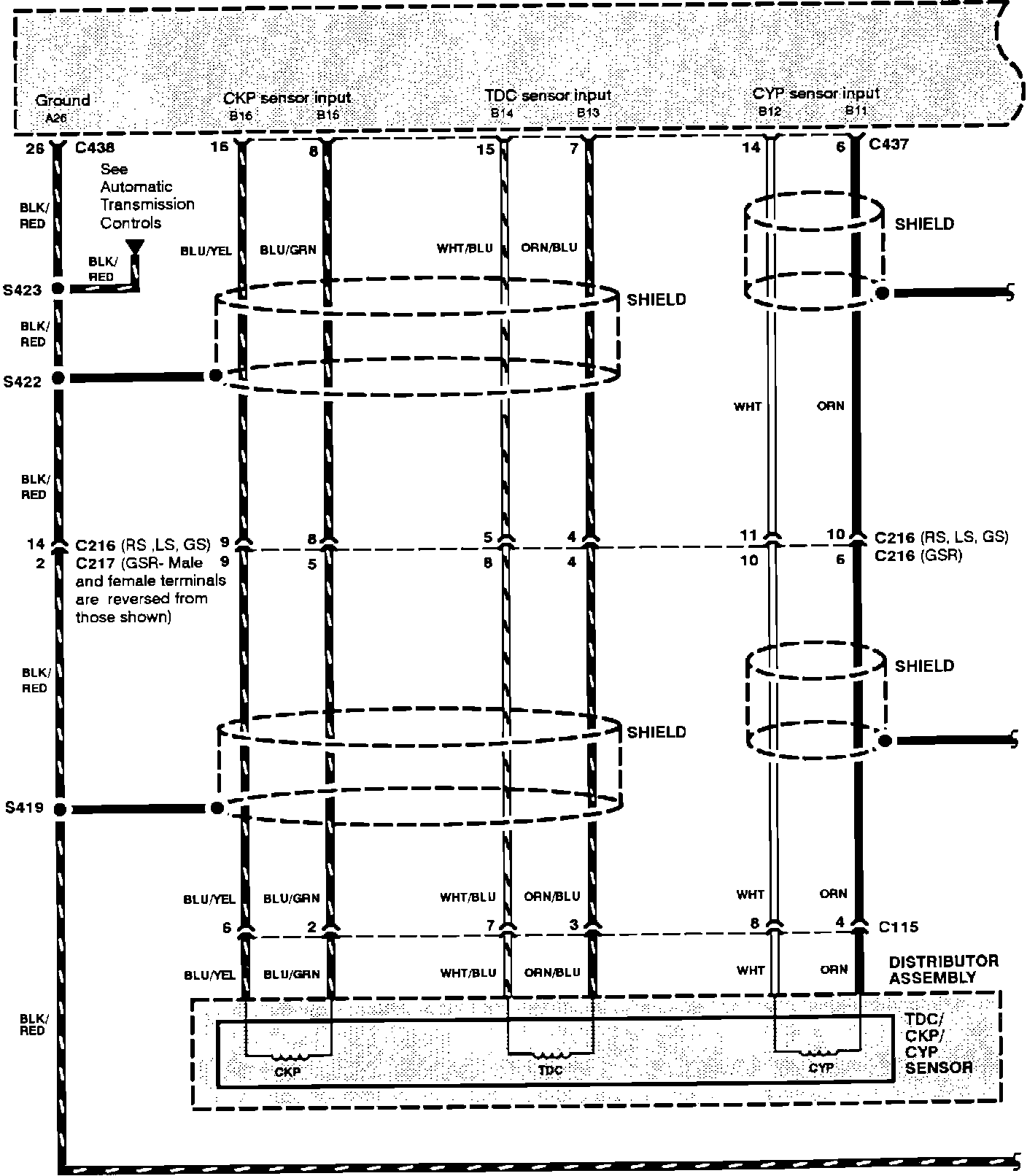

Programmed Fuel Injection (PGM-FI) System:

Programmed Fuel Injection (PGM-FI) System:
