Timing Belt: Testing and Inspection

Inspection
1. Remove the cylinder head cover.

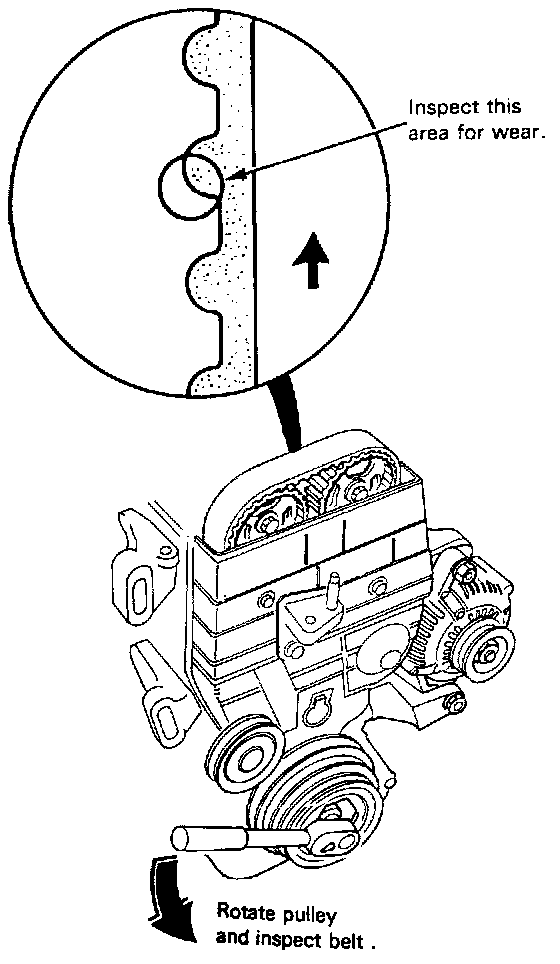

2. Inspect the timing belt for cracks and engine coolant or oil soaking.

NOTE:
- Replace the belt if oil soaked.
- Remove any oil or solvent that gets on the belt.

4. After inspecting, retorque the crankshaft pulley bolt to 180 N.m (18.0 kg.m, 130 lb.ft).
