Home >> Acura >> 1993 >> Integra L4-1678cc 1.7L DOHC (VTEC) FI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Thermostat >> Service and Repair

Thermostat: Service and Repair

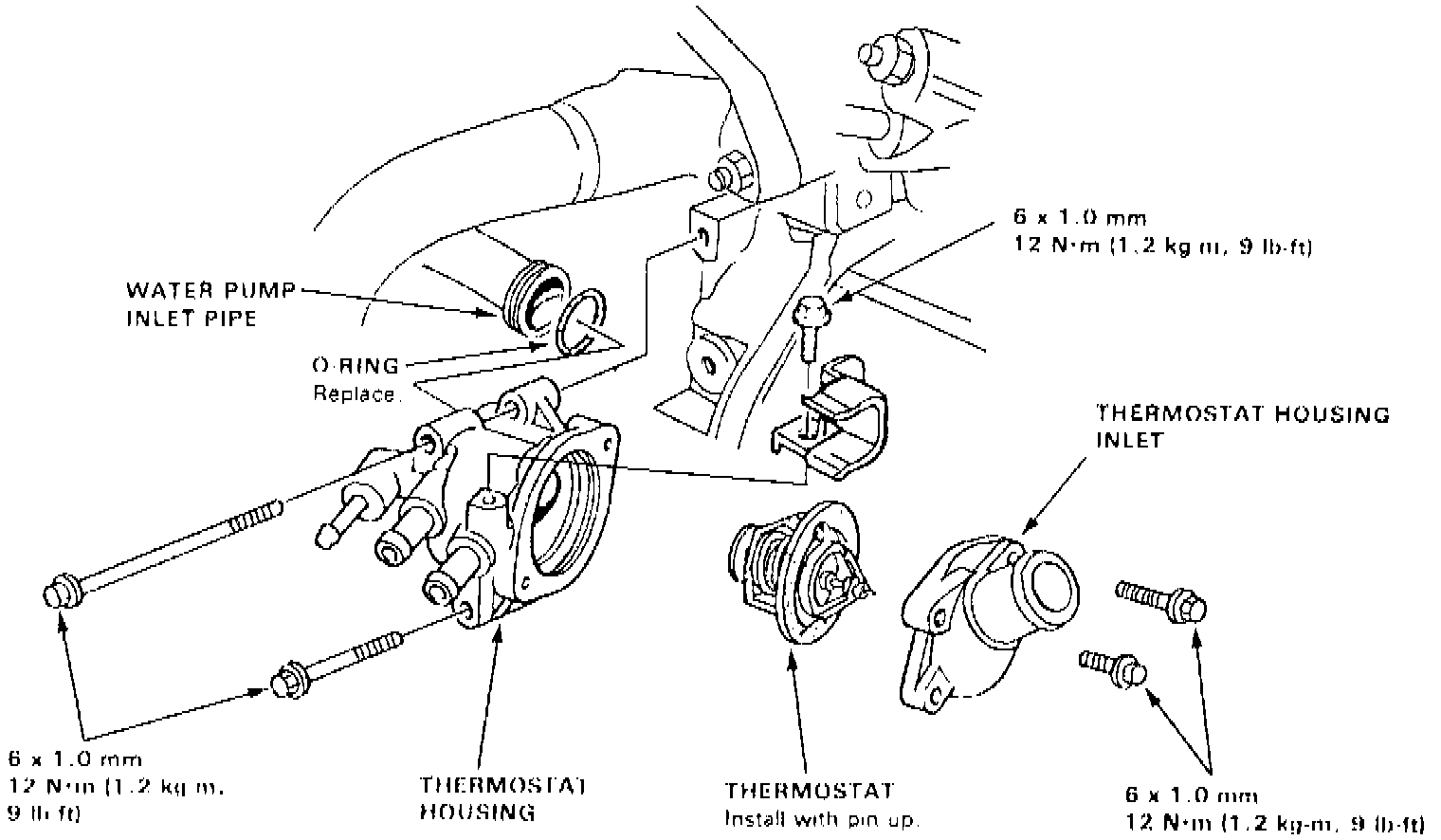

Fig. 101 Thermostat Replacement:





Refer to Fig. 101 for thermostat replacement.
