Transmission Shift Position Indicator Lamp
Transmission Shift Position Indicator Lamp

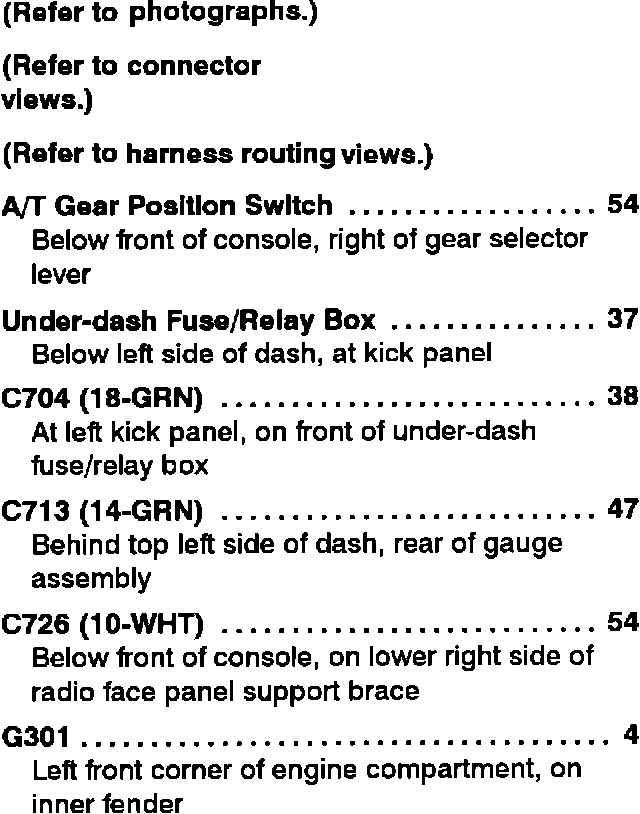

Automatic Transmission Gear Position Indicator Component Location Index:

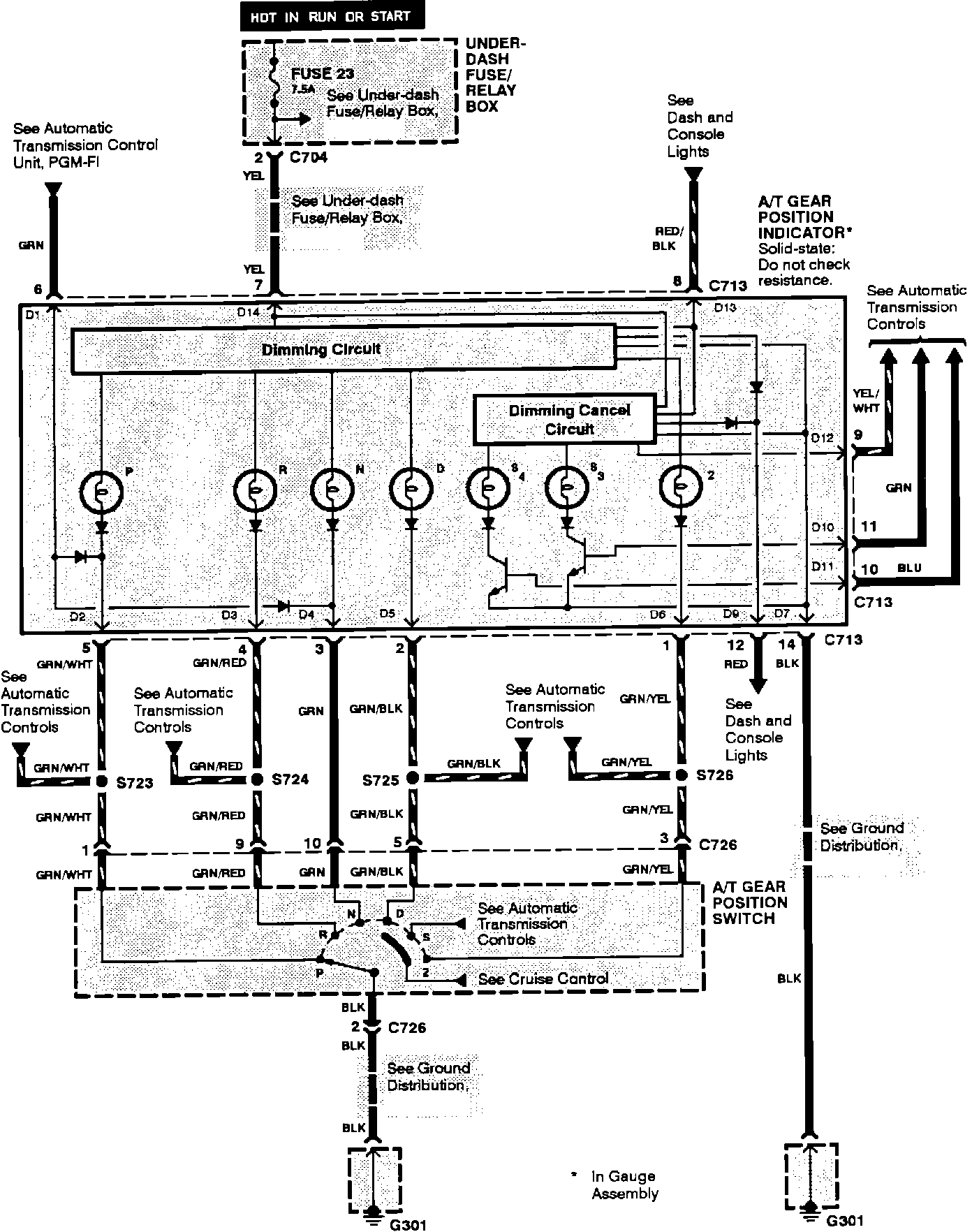

Automatic Transmission Gear Position Indicator:
