Power and Ground Distribution
>>
Fuse
>>

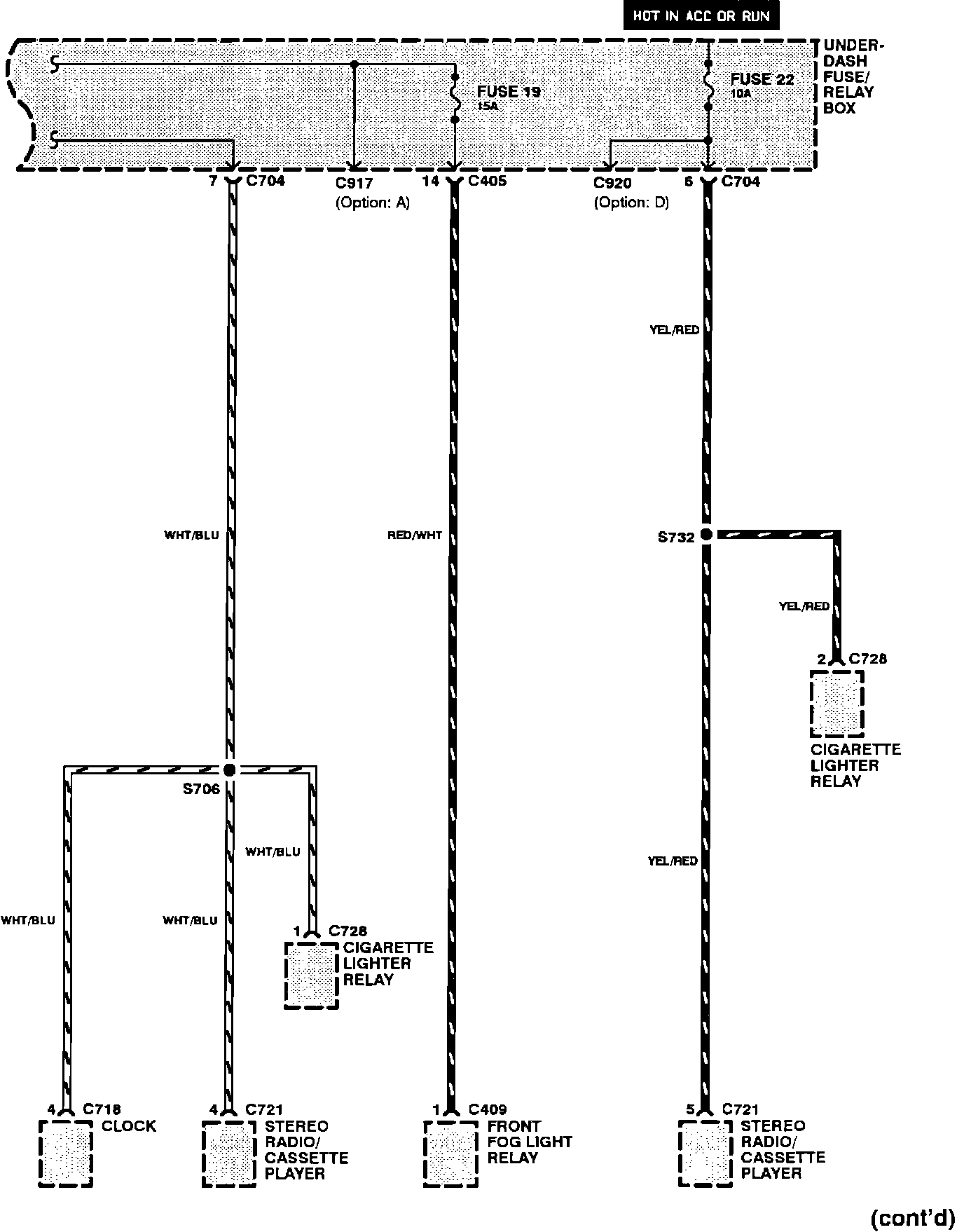

Fuse 19, 22
Fuse 19, 22
Power Distribution Under-Dash Fuse/Relay Box:
