Home
>>
Acura
>>
1993
>>
Integra L4-1678cc 1.7L DOHC (VTEC) FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 1
Fuse 1

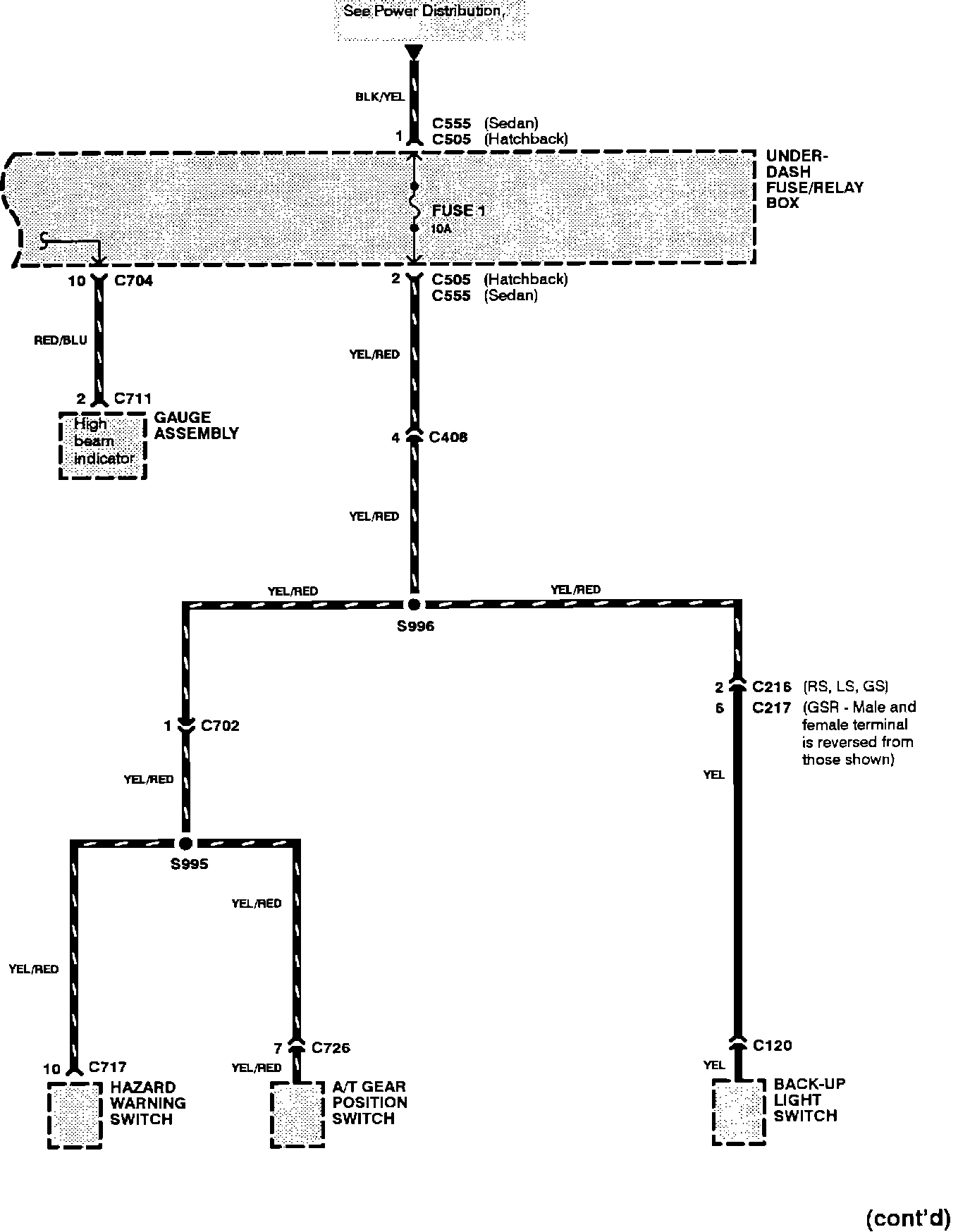

Power Distribution Under-Dash Fuse/Relay Box:
