Home >> Acura >> 1992 >> Vigor L5-2451cc 2.5L SOHC G25A4 FI >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Switch >> Testing and Inspection

Windshield Washer Switch: Testing and Inspection

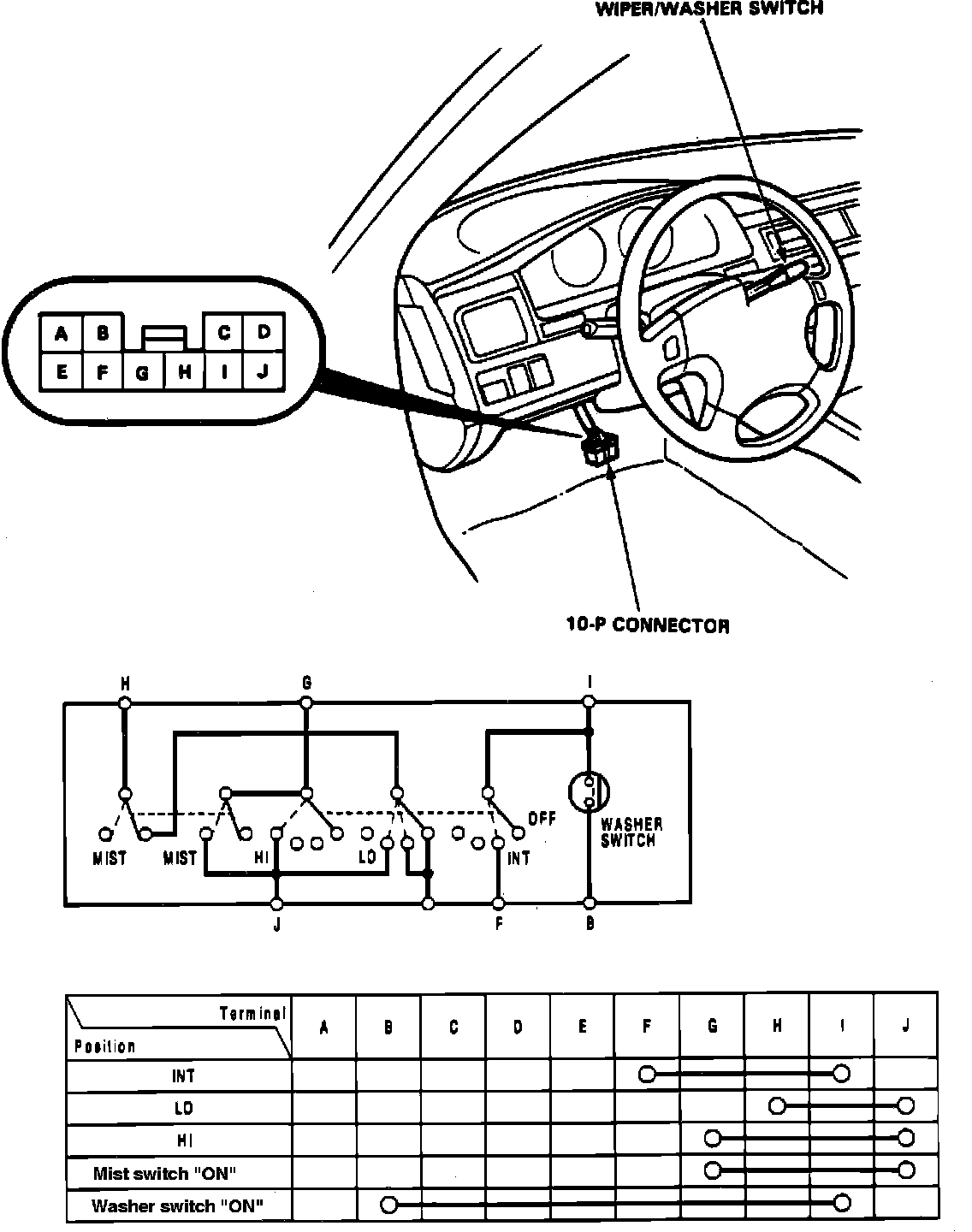

Fig. 15 Washer/wiper Switch Test:
