Interior - Squeak and Rattle Repair Tips: Overview

BULLETIN NO.
92-034



December 1, 1992



YEAR
1992



MODEL
VIGOR



VIN APPLICATION
ALL



Vigor Interior Squeaks and Rattles

PROBABLE CAUSE AND CORRECTIVE ACTION

See appropriate page for each symptom.

NOTE:
Most of these noises occur during normal driving. Some occur only at certain minimum driving speeds or over certain road surfaces. Ask the customer to describe the driving conditions surrounding each noise.

PARTS INFORMATION

The following special materials are available through normal ordering channels.

EPT Sealer 3 mm thick: P/N 06990-SA5-000

EPT Sealer 5 mm thick: P/N 06991-SA5-000

EPT Sealer 10 mm thick: P/N 06992-SA5-000

Melt Sheet: P/N 72846-282-001XF

Wool Felt 1 mm thick: P/N 06993-SA5-000

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number, flat rate time. failed part number. defect code, and contention code are listed under WARRANTY CLAIM INFORMATION for each type of interior squeak or rattle.

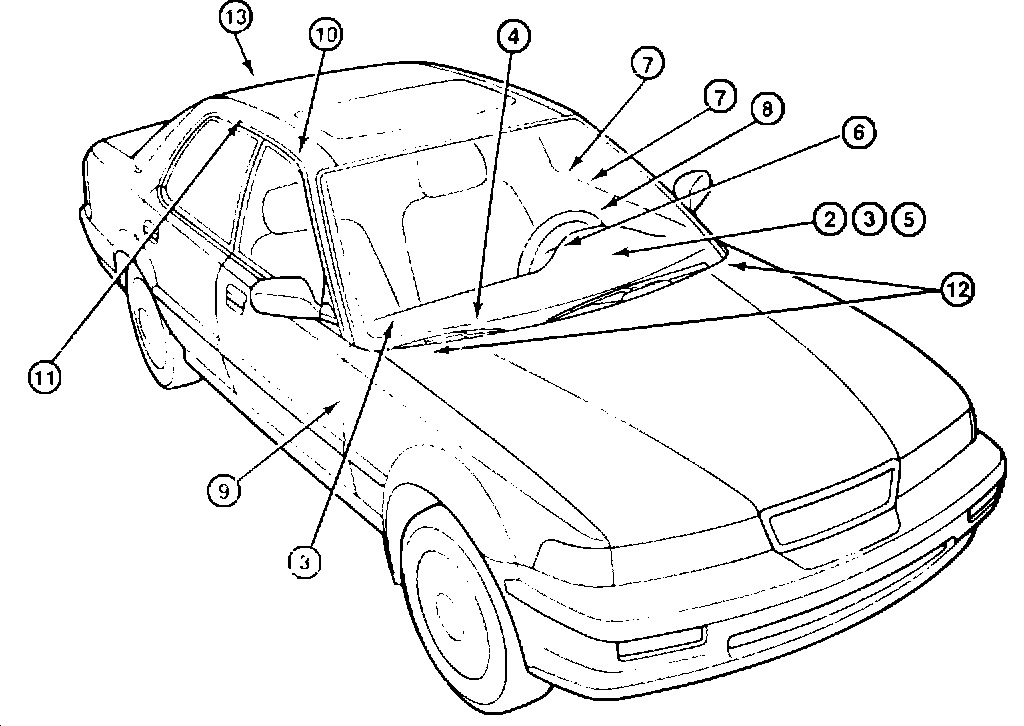

INDEX OF SOURCES





Type/Location

DASHBOARD
Squeaks Around the Instrument Panel

Squeaks Around the Instrument Panel Visor Rattles at the Glove Box

Rattles in the Dashboard Vents

Rattles Behind the Driver Side Knee Bolster

Rattles at the Lower Steering Column

FRONT DOOR
Rattles at the Door Lock Knob

Rattles at the Door Handle Rattles at the Door Lining Squeaks at the Door

ROOF
Squeaks at the Headliner

Squeaks From the Grab Handle

HOOD
Rattles at the Hood

REAR SEAT
Squeaks at the Rear Seat Back
