Starter Relay: Locations

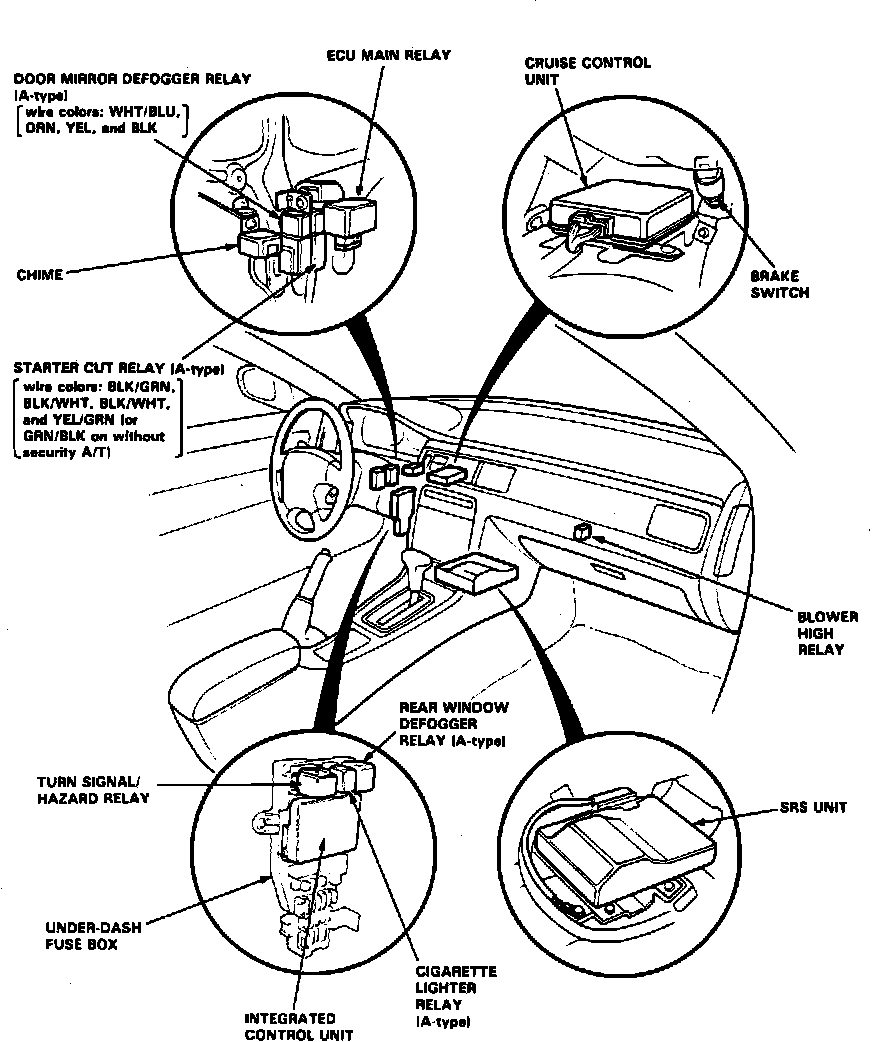

LH Instrument Panel Relays & Control Units:

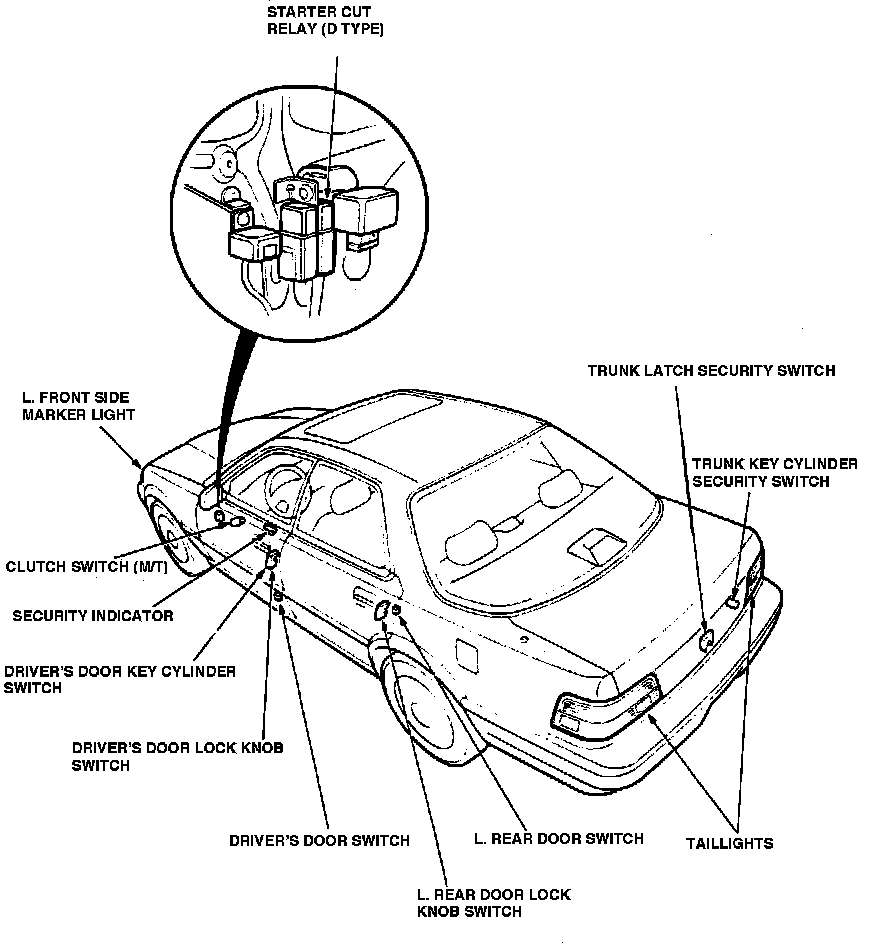

LH & Rear Security System Components:

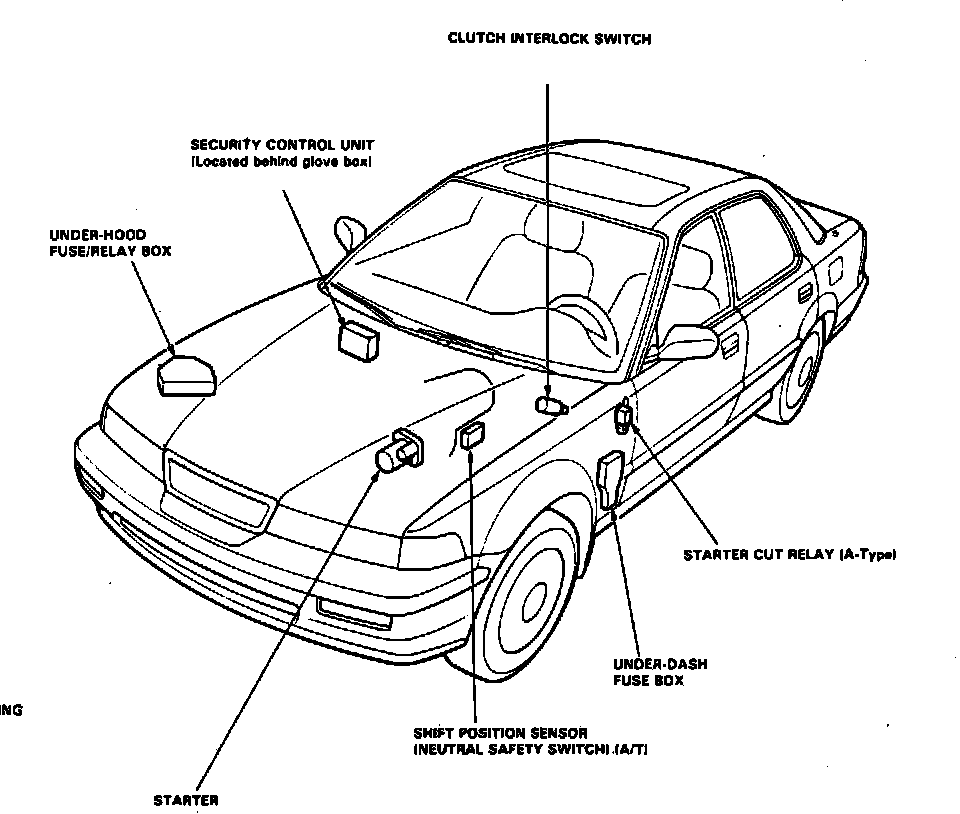

Starting System Components:




Lower LH Side Of I/P
