Home >> Acura >> 1992 >> Vigor L5-2451cc 2.5L SOHC G25A4 FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Cigarette Lighter Relay >> Locations

Cigarette Lighter Relay: Locations

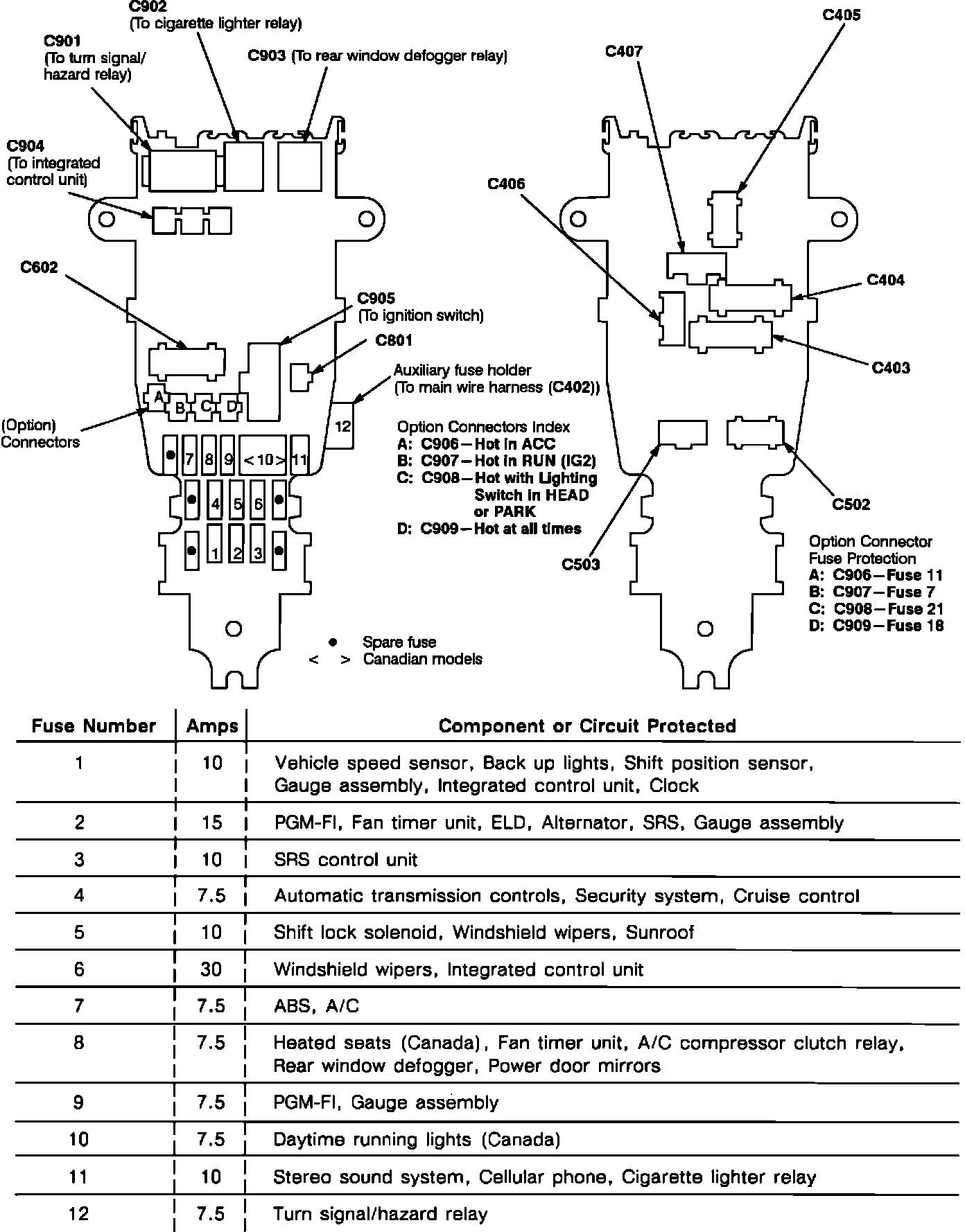

Fuse Panel Details: Under-dash Fuse/Relay Box:
