Intake Manifold: Service and Repair

Intake Manifold Installation

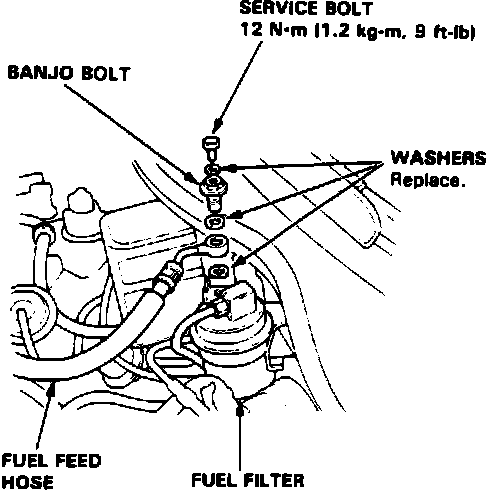

Fuel Pressure Relief:

Relieve fuel system pressure by loosening the service bolt on top of fuel filter one complete revolution.

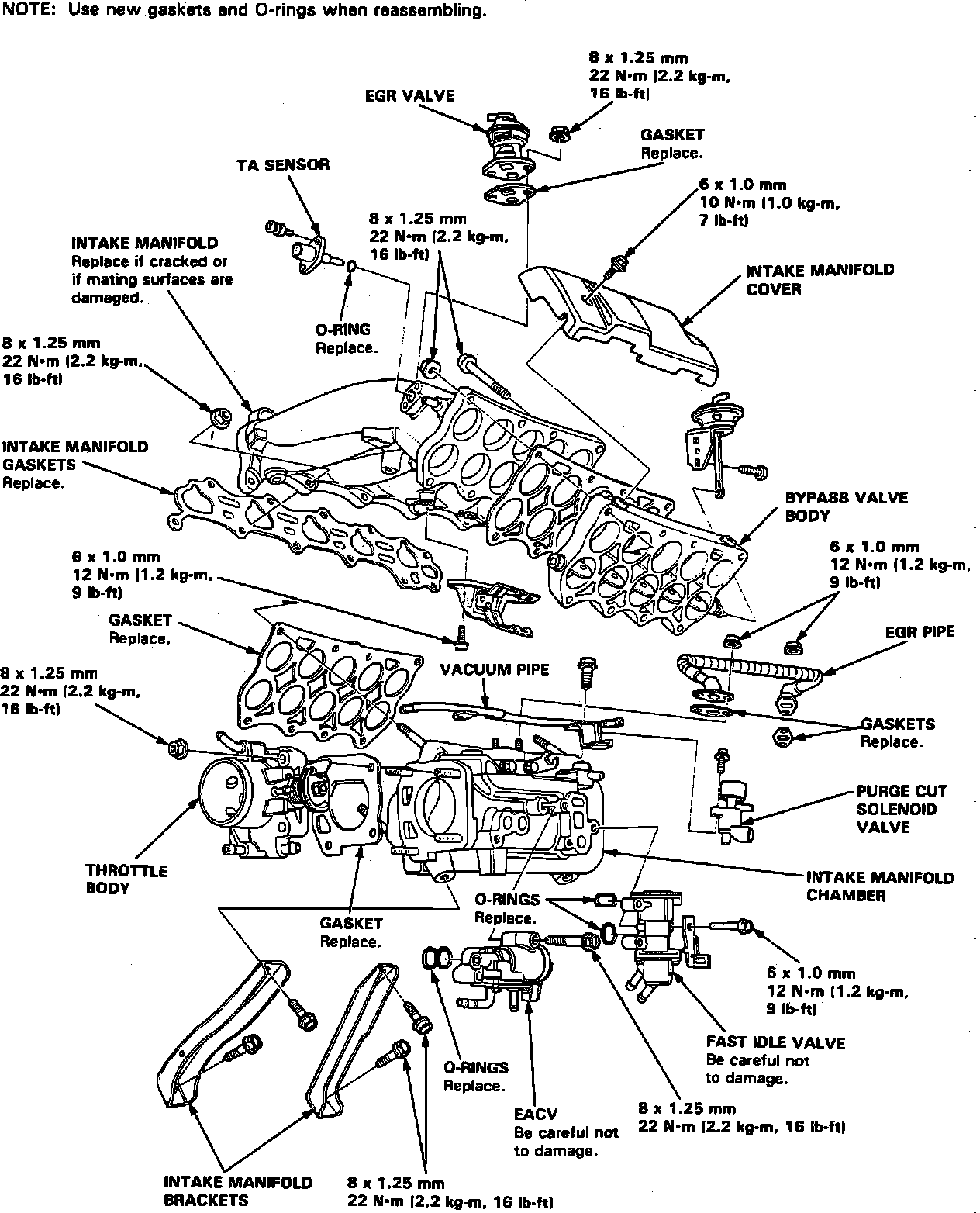

Intake Manifold Replacement:

Install the intake manifold on the cylinder head, then tighten the nuts in a criss-cross pattern in two or three steps beginning with the inner nut.

Always use a new intake manifold gasket.
