Vehicle Speed Sensor

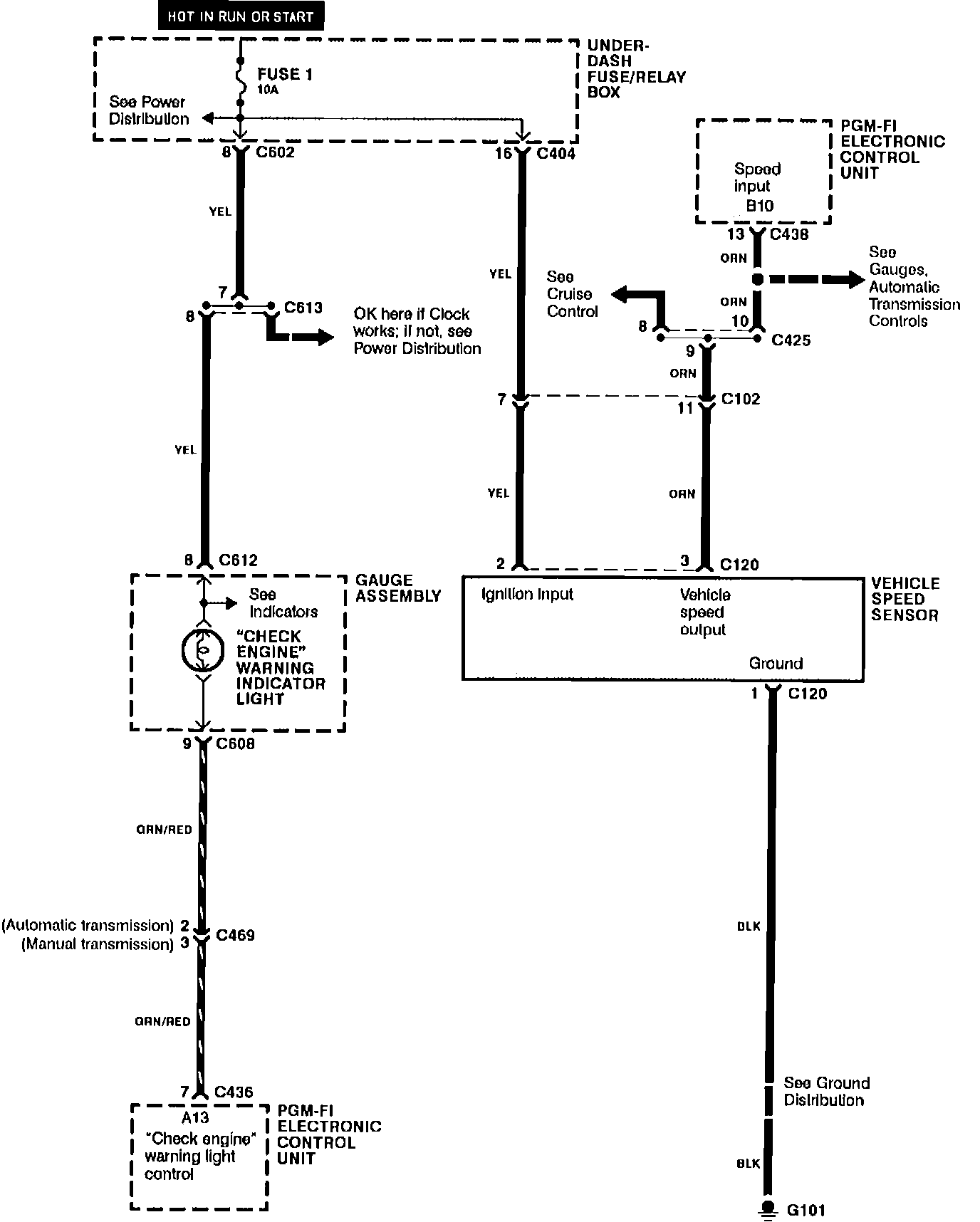

Engine Management: Check Engine Light And Vehicle Speed Sensor:

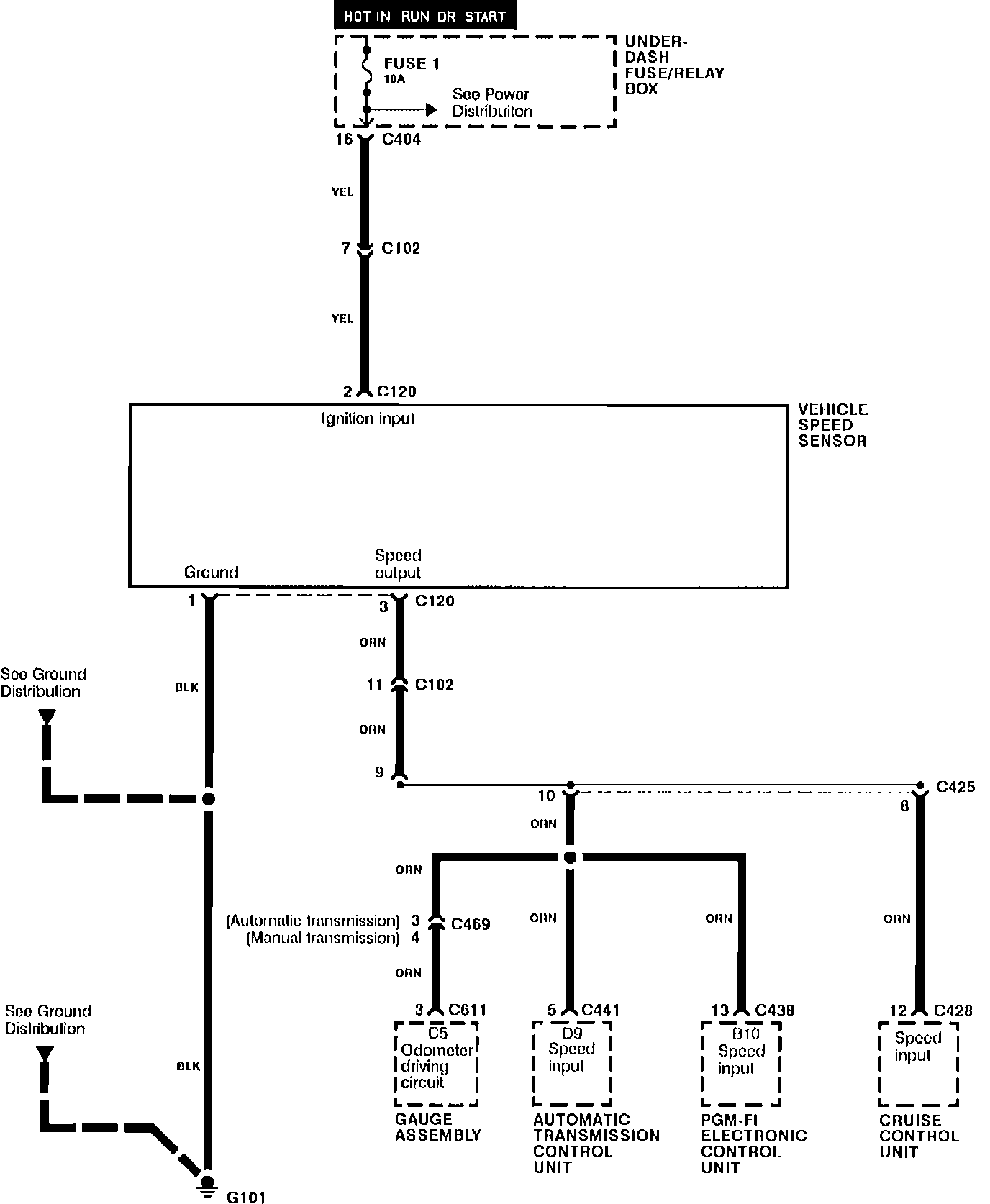

Vehicle Speed Sensor:
