Accumulator Pressure Switch

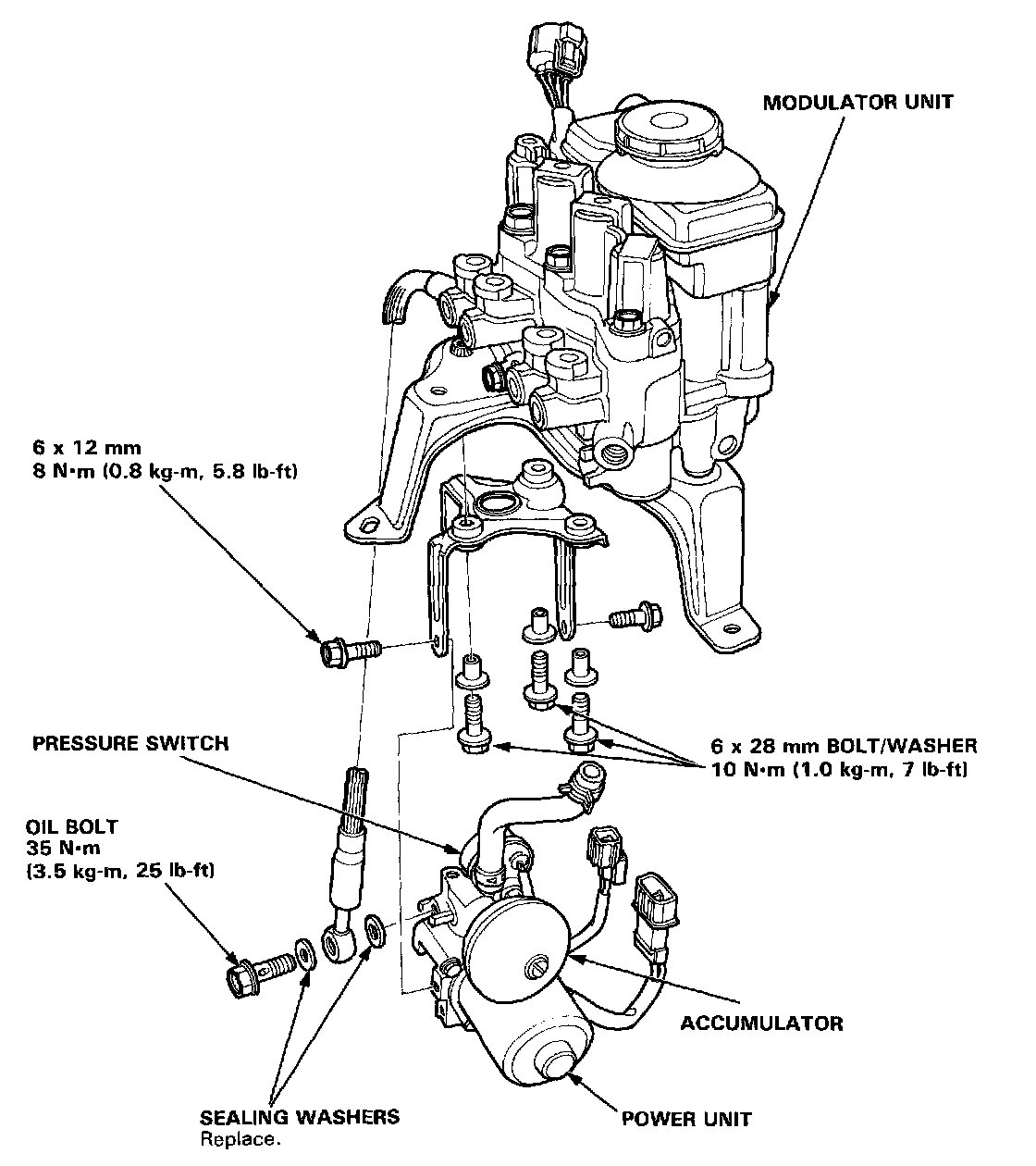

Power/Accumulator/Pressure Switch Unit

CAUTION:
- Be careful not to bend or damage the brake pipe when removing the power unit and accumulator.

- Do not spill brake fluid on the car; it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

- To prevent spills, cover the hose joints with rags or shop towels.

- Before reassembling, check that all parts are free of dust and other foreign particles.

- Do not try to disassemble the power/accumulator unit assembly. Replace the assembly with a new part if necessary.

- Do not mix different brands of brake fluid as they may not be compatible.

- Do not reuse the drained fluid. Use only clean Dot 3 or 4 brake fluid.

- When connecting the brake pipes, make sure that there is no interference between the brake pipes and other parts.

NOTE: Replace the accumulator, power unit, and pressure switch as an assembly.
