Downshift Switch: Adjustments

Kick-down Switch Adjustment

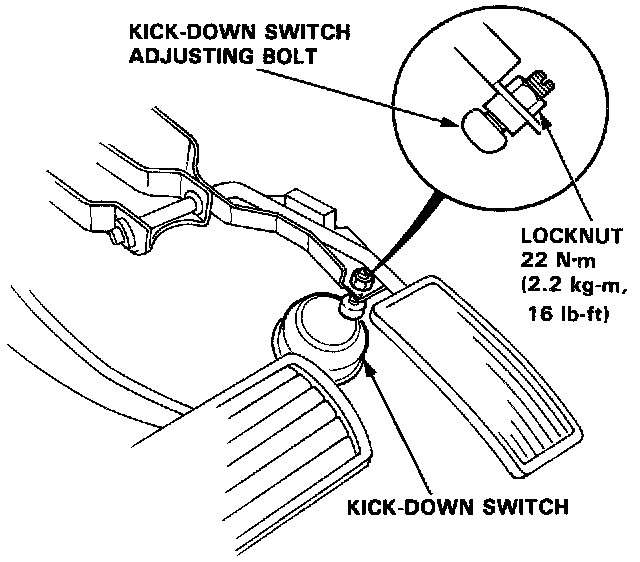

1. Loosen the locknut.

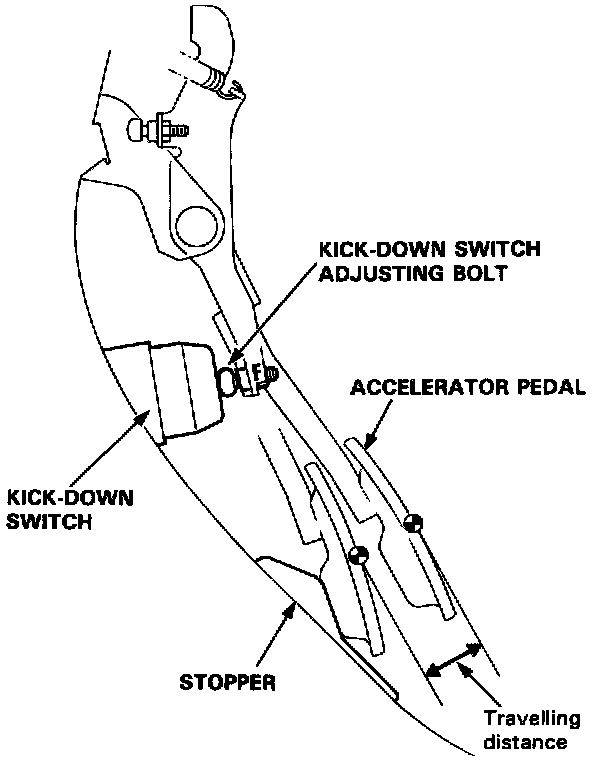

2. Adjust the length of the kick-down switch adjusting bolt so that the accelerator pedal travelling distance between the point where the bolt first contacts with the kick-down switch and the point where the accelerator pedal hits the stopper becomes the specified value.

STANDARD: 11 - 17 mm (0.43 - 0.70 in)
