Home
>>
Acura
>>
1992
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Under-Dash Fuse Box
>>

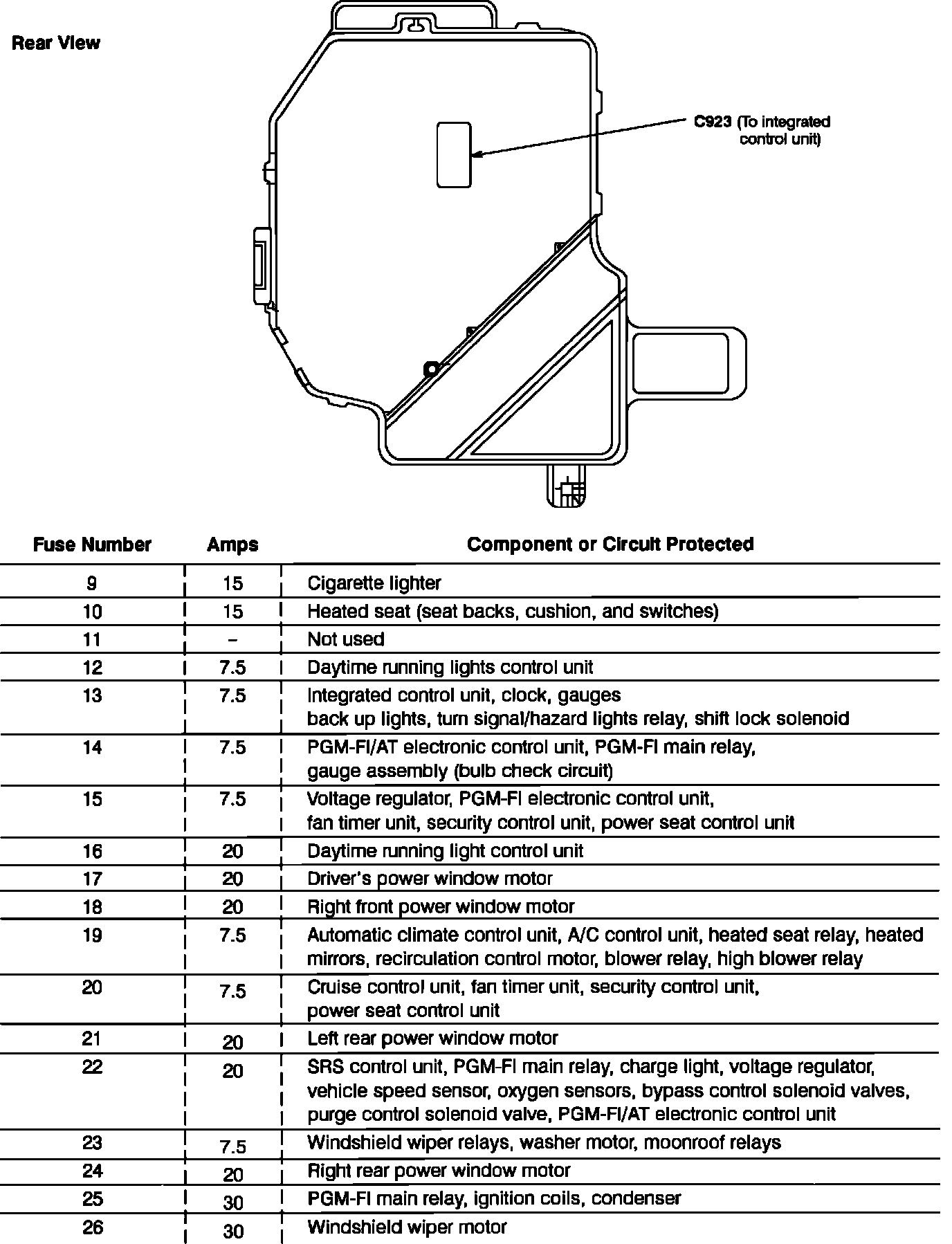

Rear View
Rear View
Fuse Panel Details: Under-dash Fuse Box:
