D4 Indicator Light Does Not Come ON
D4 Indicator Light Does Not Come ON

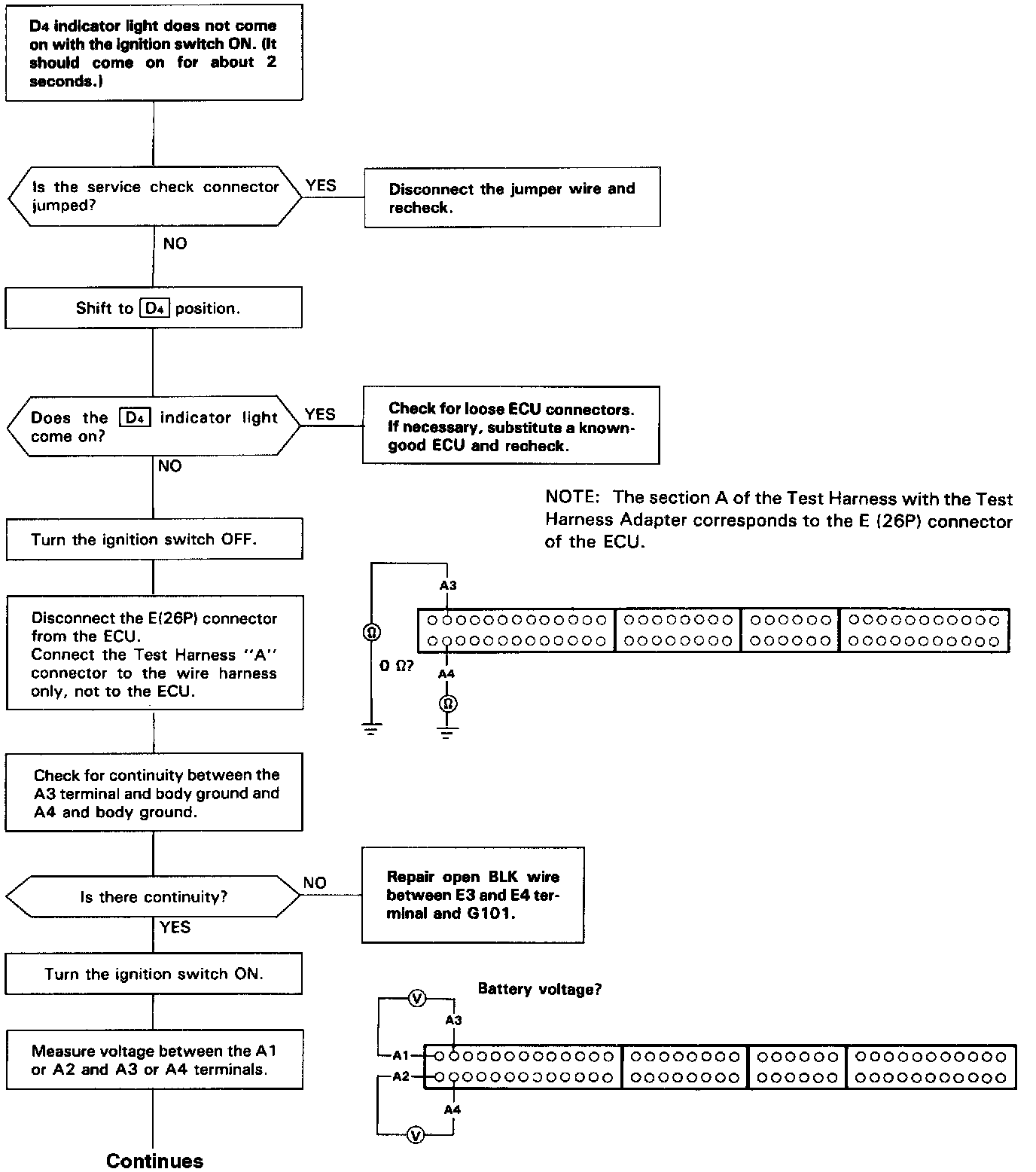

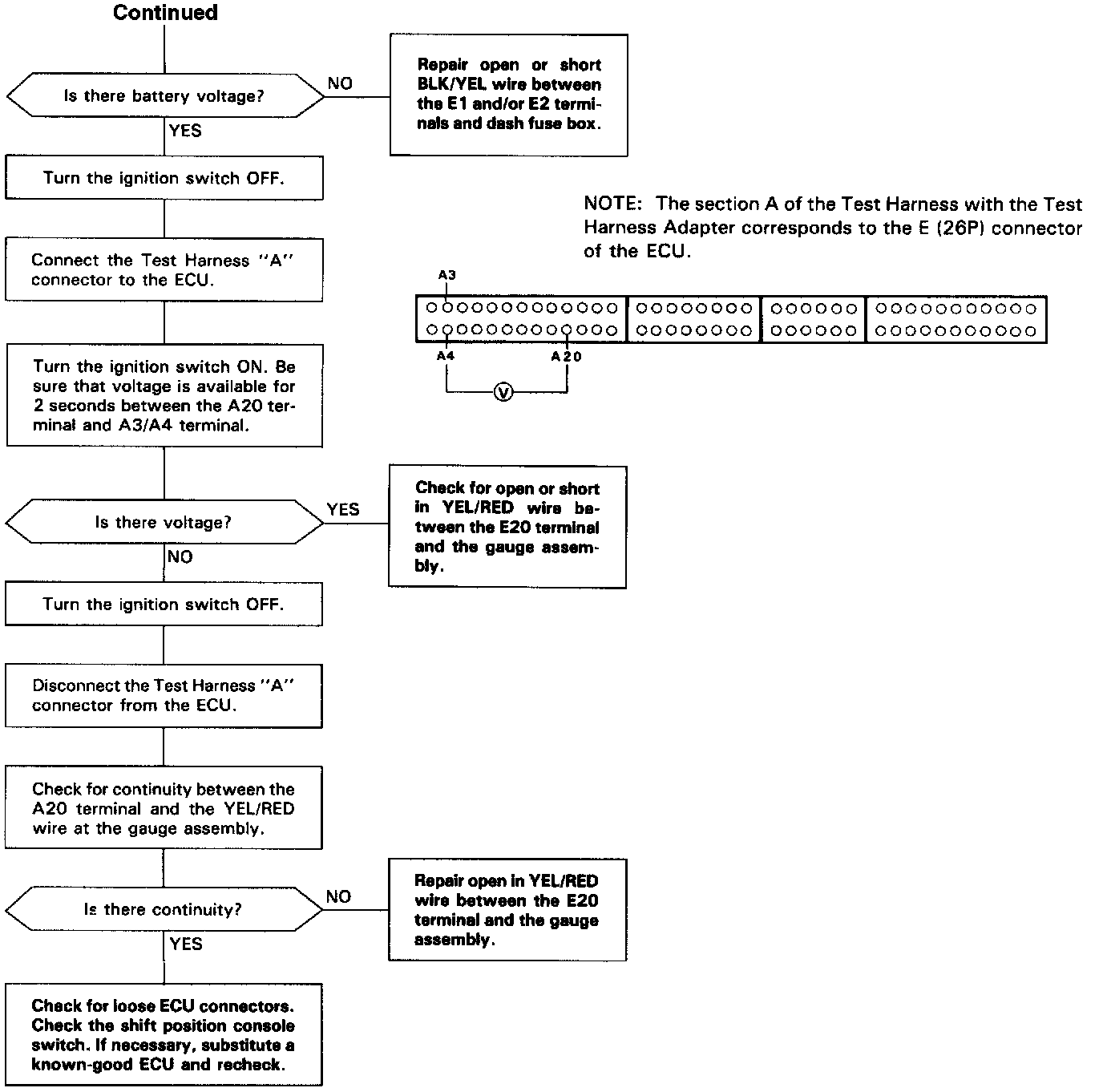

Troubleshooting Flowchart
D4 indicator light does not come on with the
ignition switch
ON. (It should come on for about 2 seconds.) / Inspection of self-diagnostic indicator circuit.
