Home
>>
Acura
>>
1992
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Variable Induction System
>>
Testing and Inspection
>>
Diagnostic Chart
Diagnostic Chart
Chamber Volume Control System

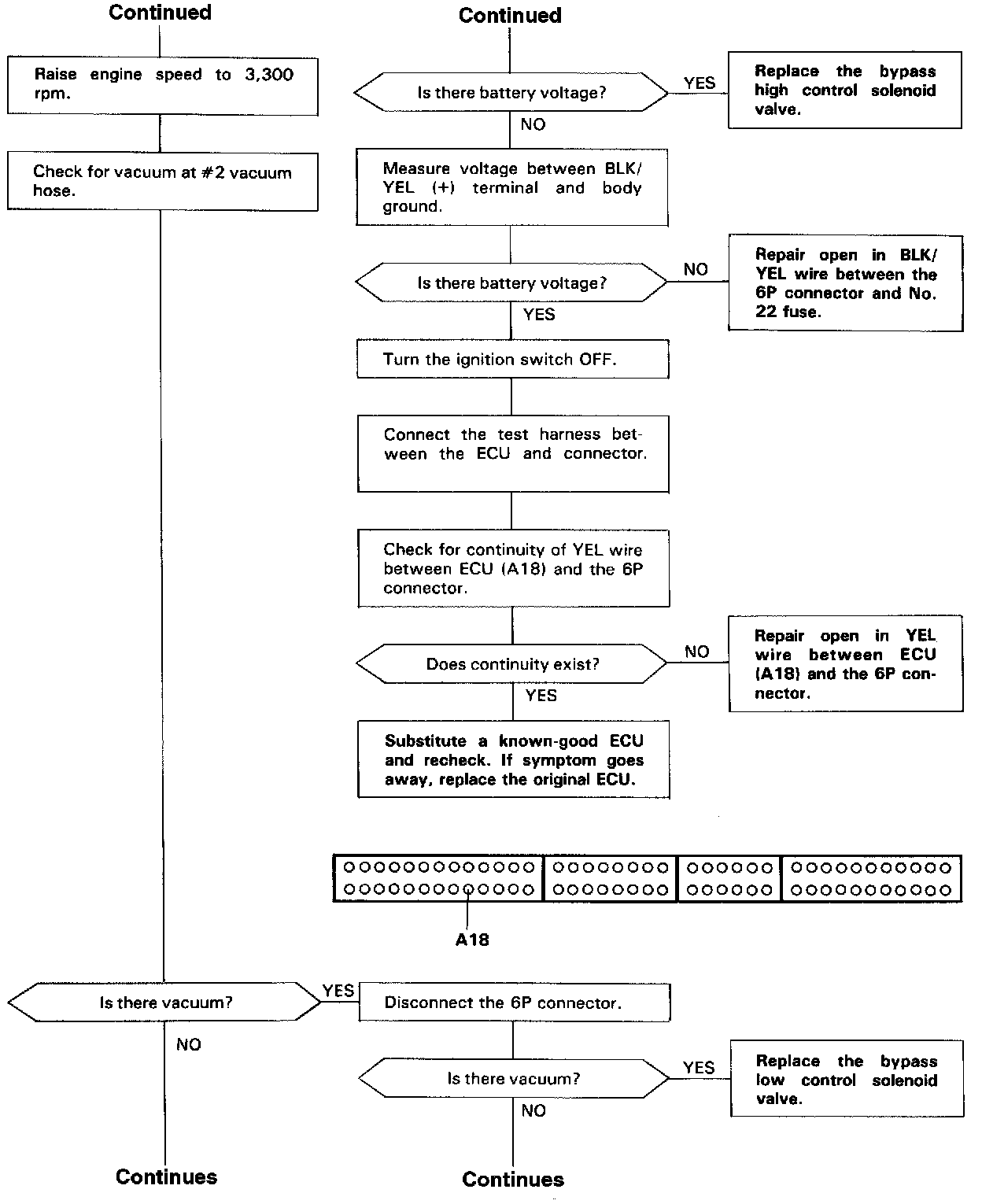

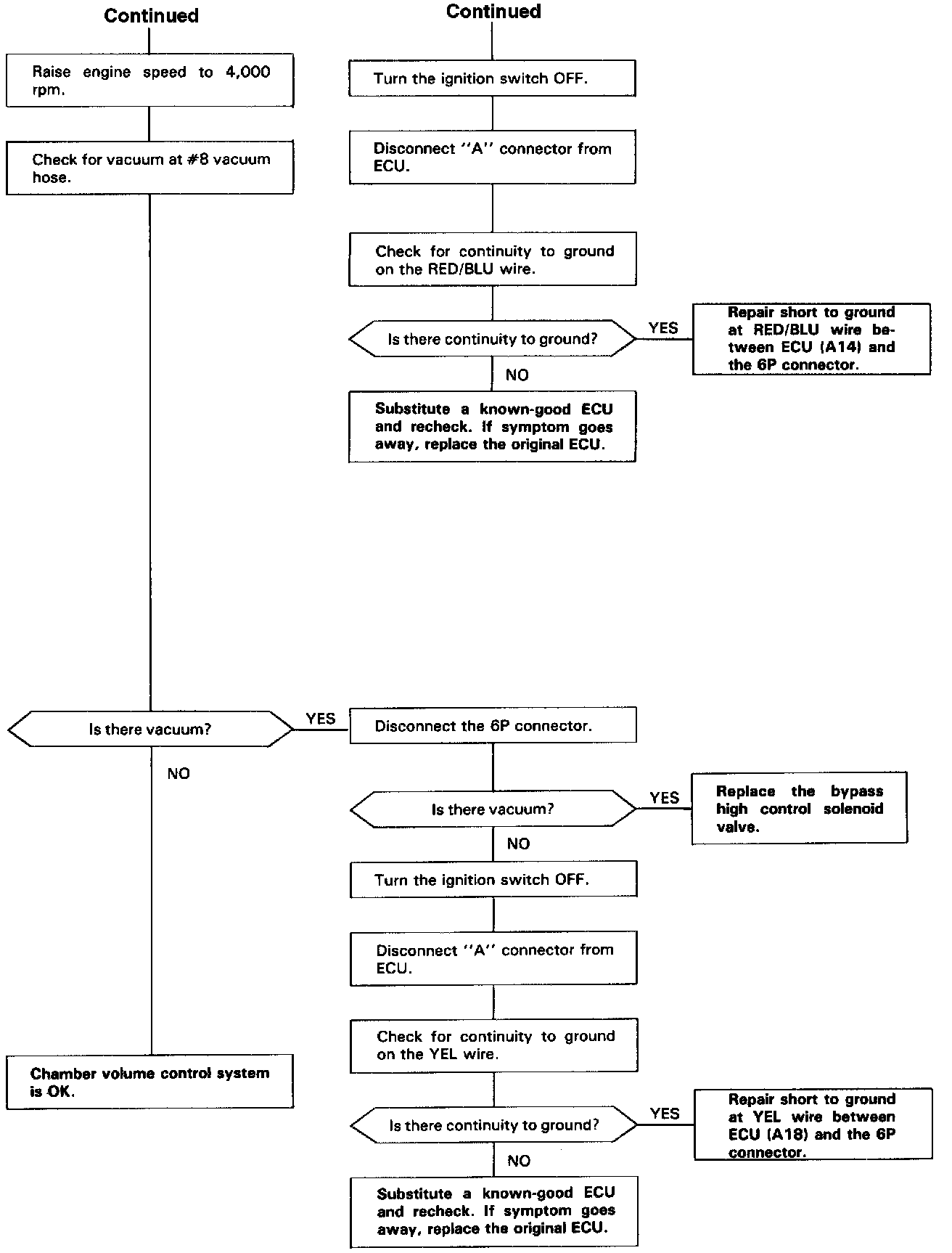

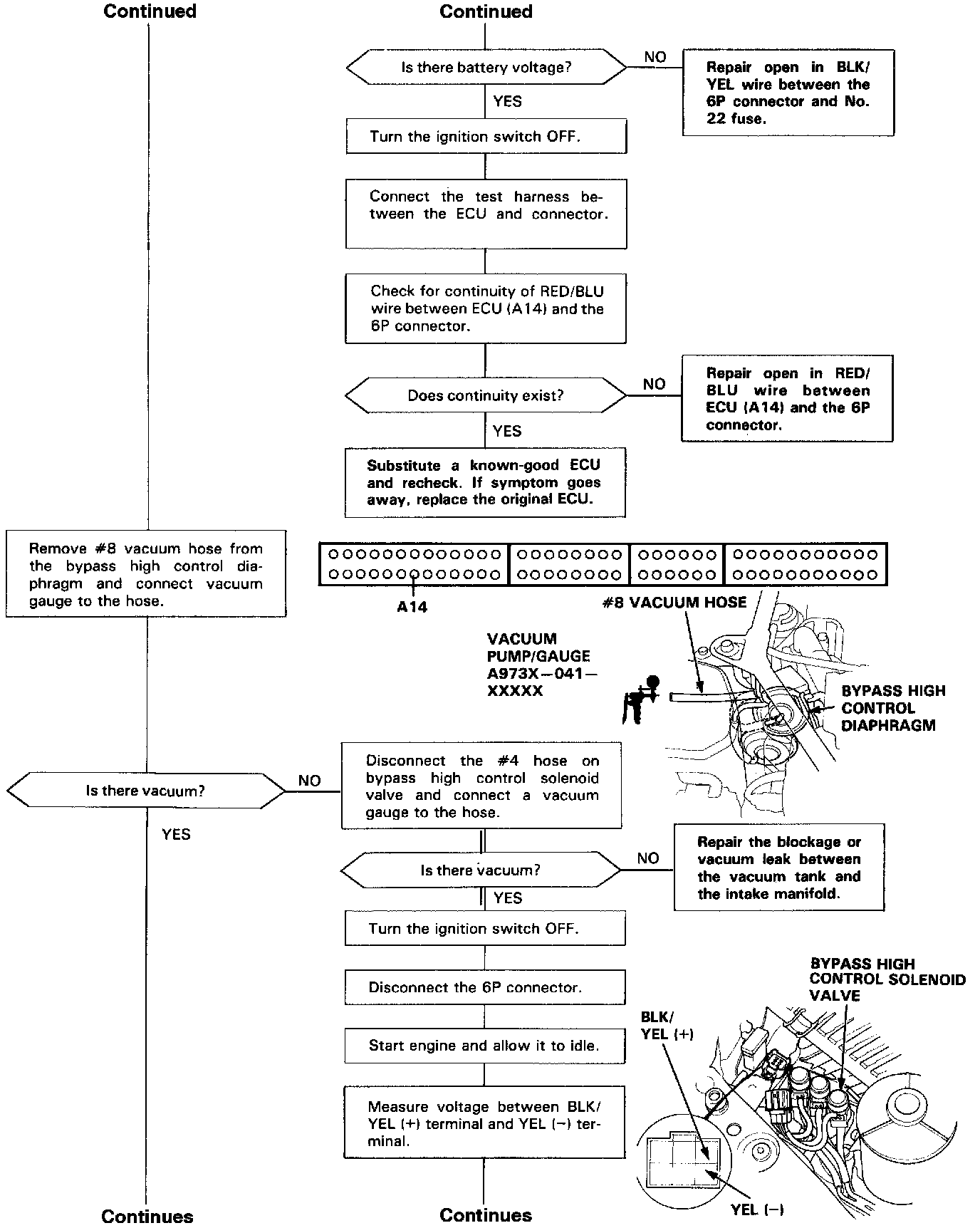

Troubleshooting Flowchart
