Acura
>>
1992
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Diagrams
>>
Electrical Diagrams
>>
Coupe
Coupe

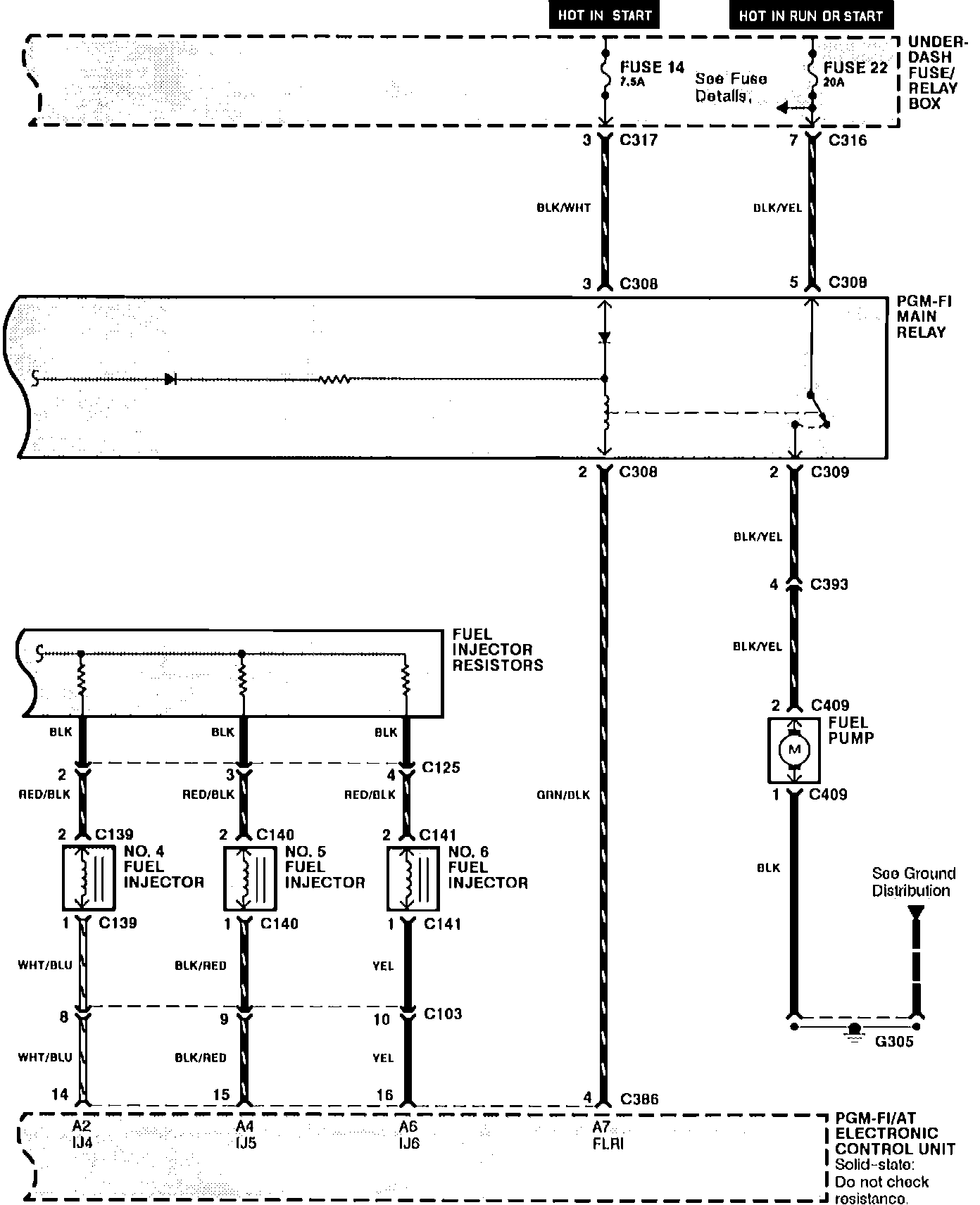

Engine Management: Main Relay And Fuel Controls:

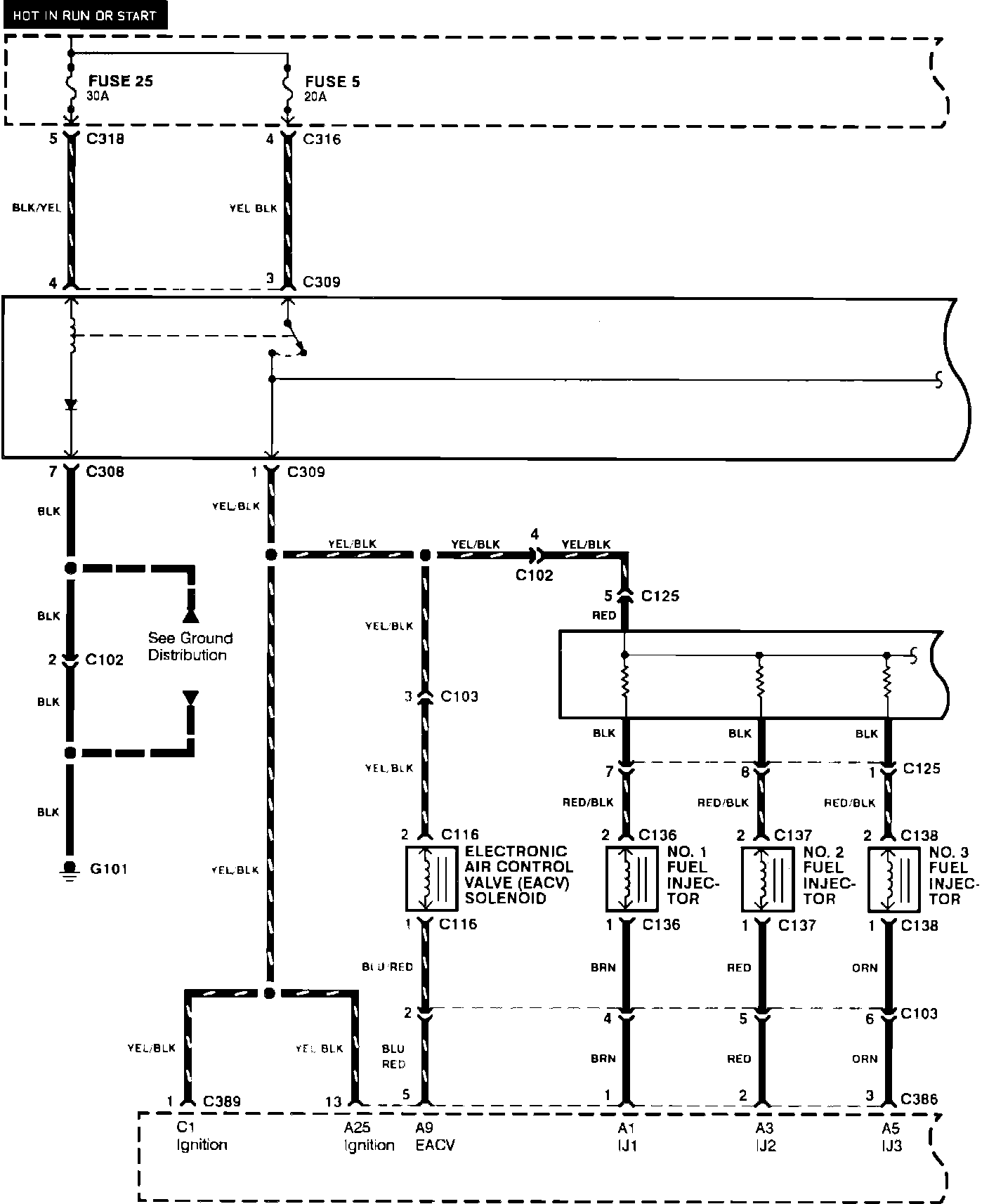

Engine Management: Main Relay And Fuel Control:
