Fresh Air/Recirculation Control Box

CAUTION:

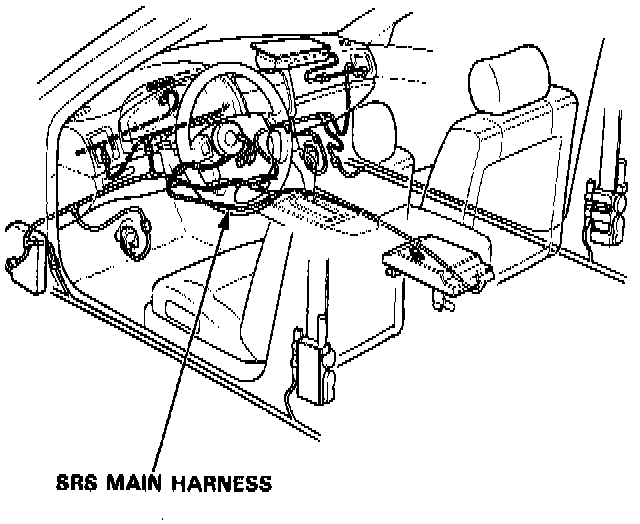

- All SRS wiring harnesses are covered with yellow outer insulation.
- Before disconnecting any part of the SRS wire harness, install the short connectors.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.

BLOWER UNIT REMOVAL

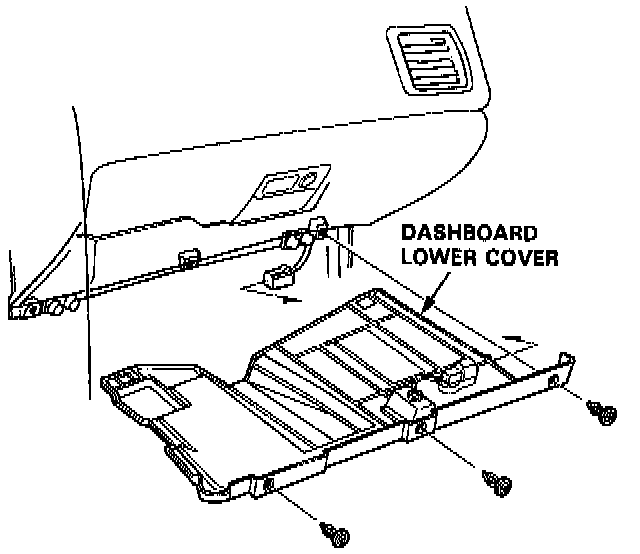

1. Remove the dashboard lower cover and disconnect the connector from it.

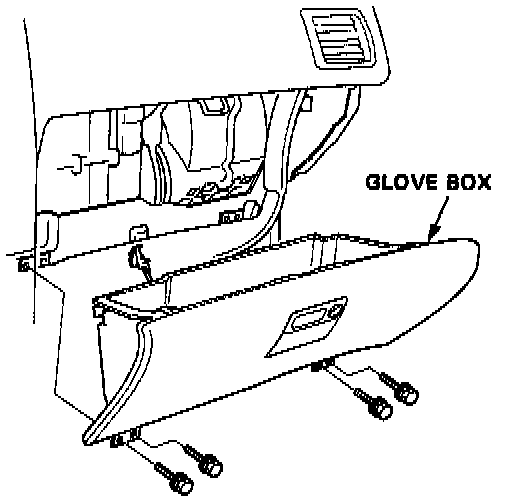

2. Disconnect the glove box light connector and glove box mounting bolts, then remove the glove box.

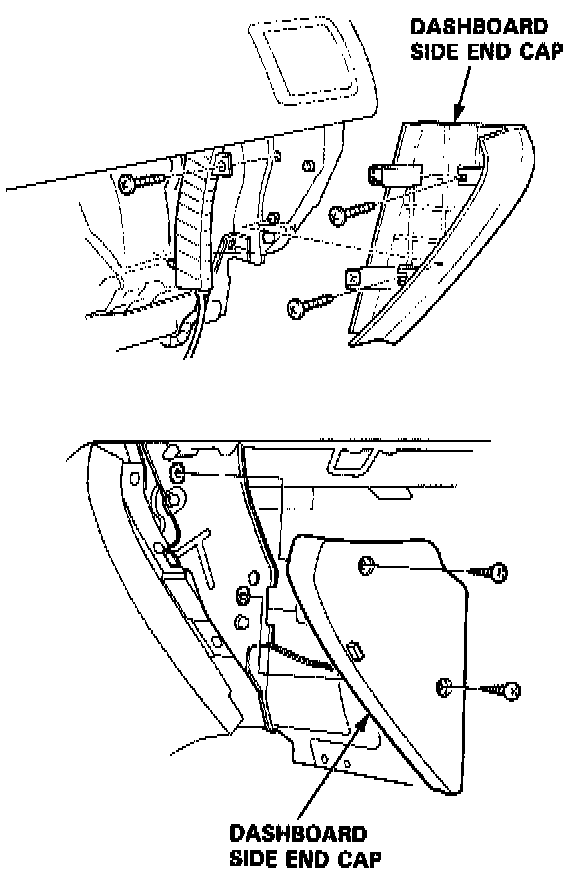

3. Remove both dashboard right end cap and the left side panel in the glove box opening.

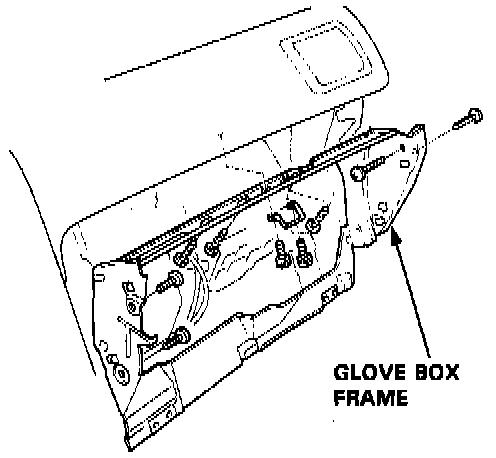

4. Remove the glove box frame mounting bolts and nuts, then remove the glove box frame.

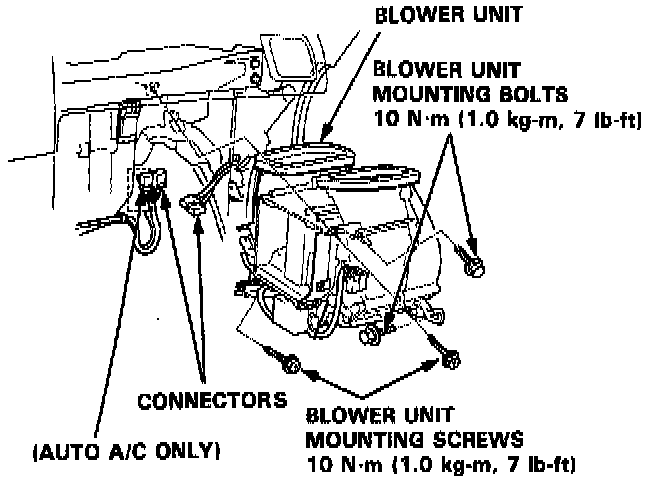

5. Disconnect the connectors as shown.
6. Remove the blower mounting bolts and screws, then remove the blower.
7. Install the blower in the reverse order of removal, then make sure it runs and doesn't leak any air.

BLOWER UNIT OVERHAUL

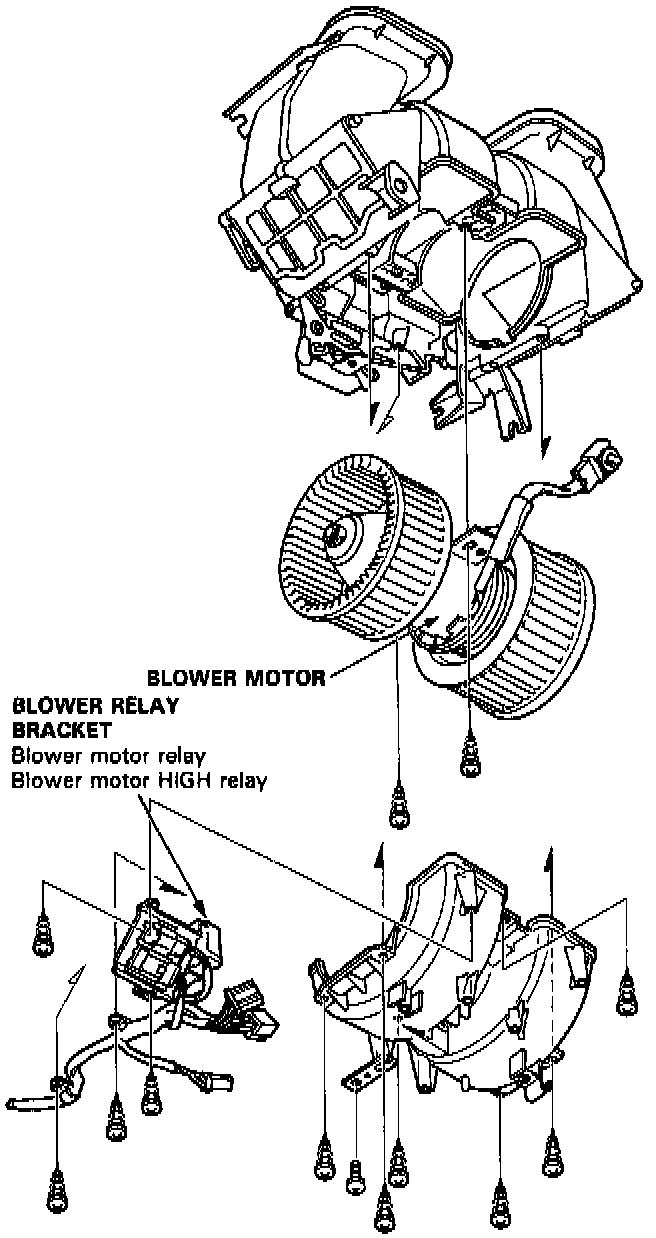

Refer to image for disassembly of blower unit, and replacement of blower motor.
