Diagnostic Flowchart - Automatic Climate Control - Electronic Climate Control
Diagnostic Flowchart - Automatic Climate Control - Electronic Climate Control

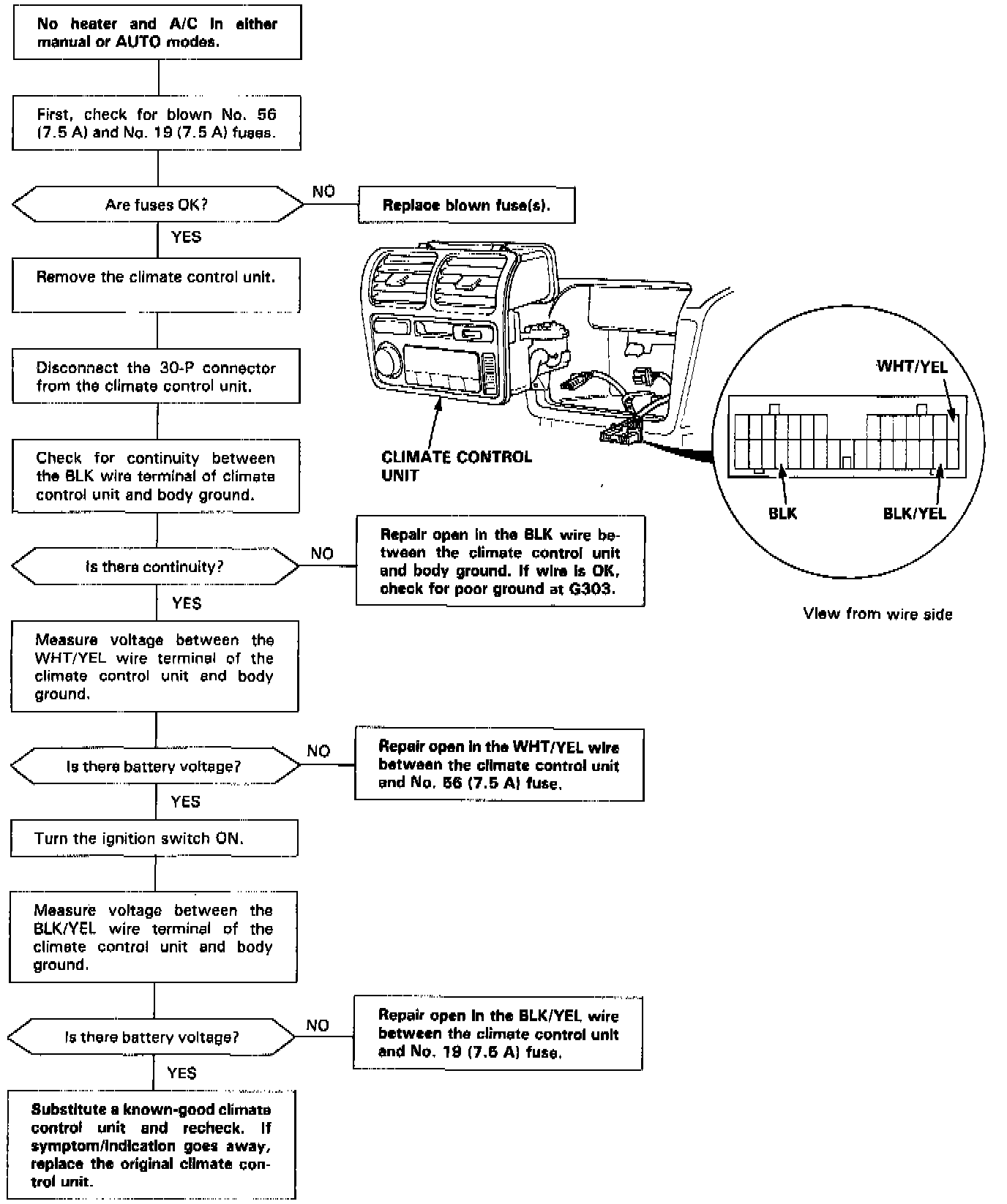

Flowchart - Climate Control Unit:
