Component Test - Automatic Climate Control

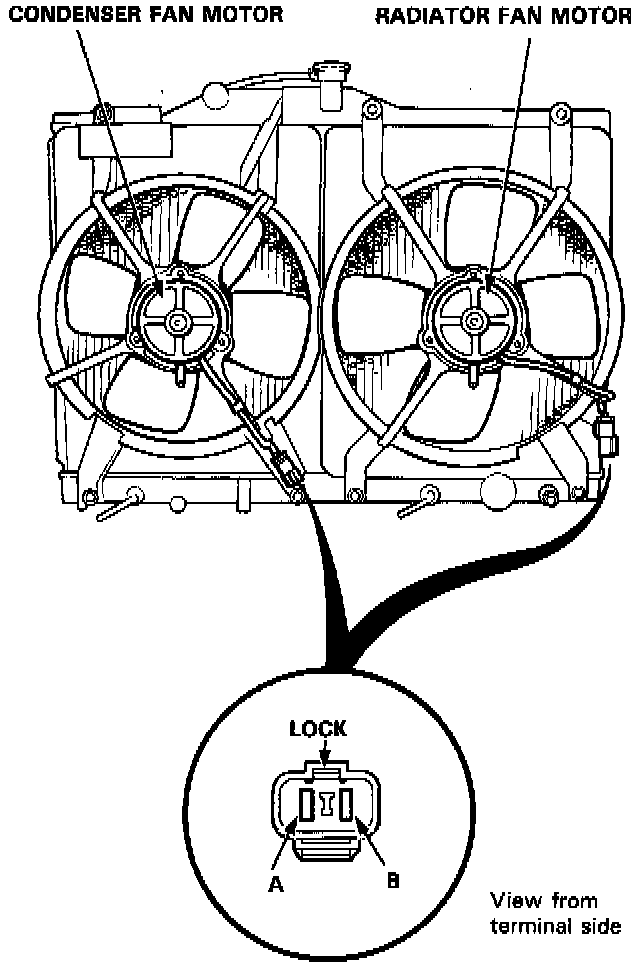

1. Disconnect the 2-P connector from each fan motor.
2. Test motor operation by connecting battery power to the A terminal, and ground to the B terminal.
3. If the motor fails to run or does not run smoothly, replace it.
