A/C Compressor

Compressor Clutch, Part 1 Of 4:

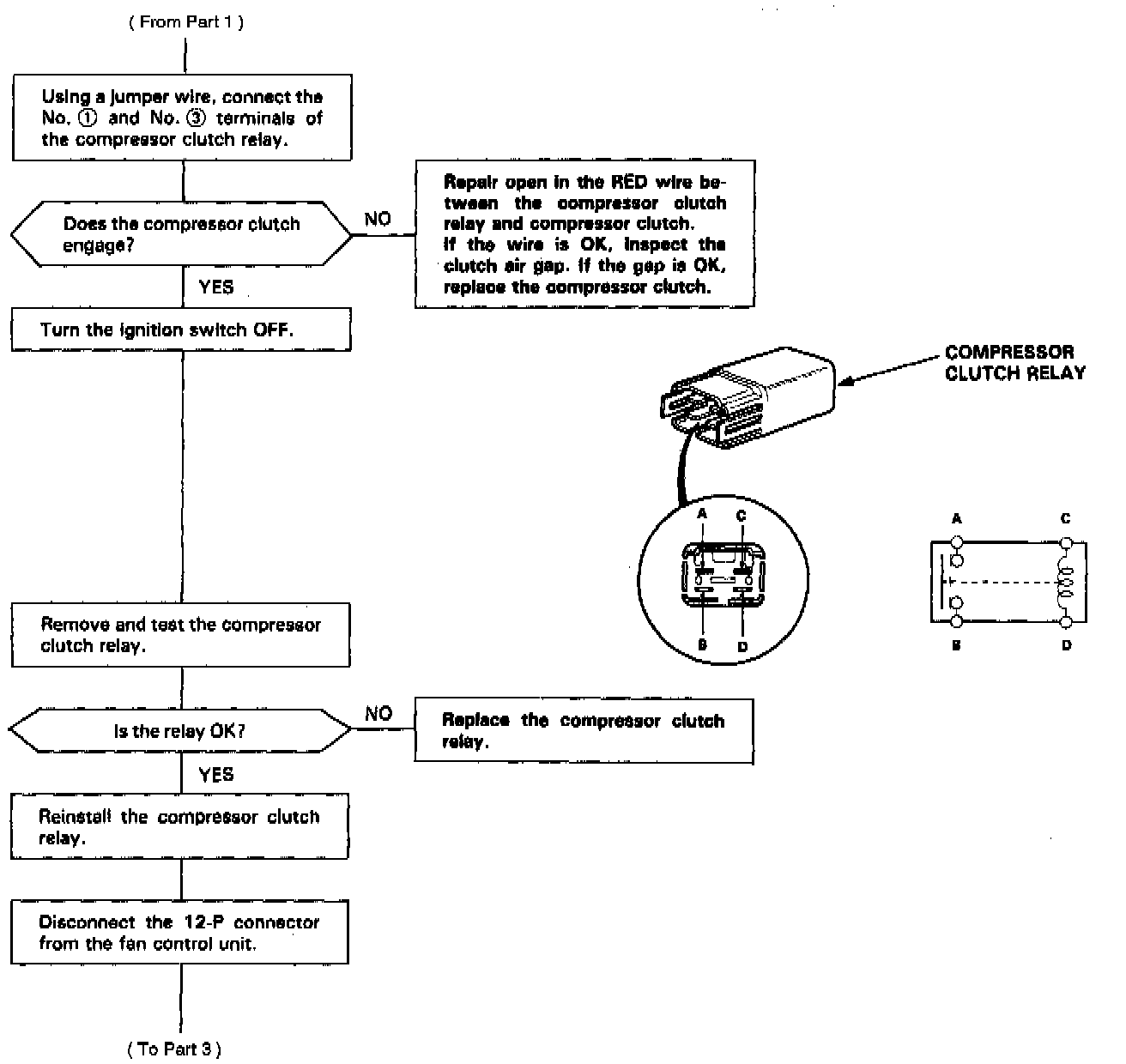

Compressor Clutch, Part 2 Of 4:

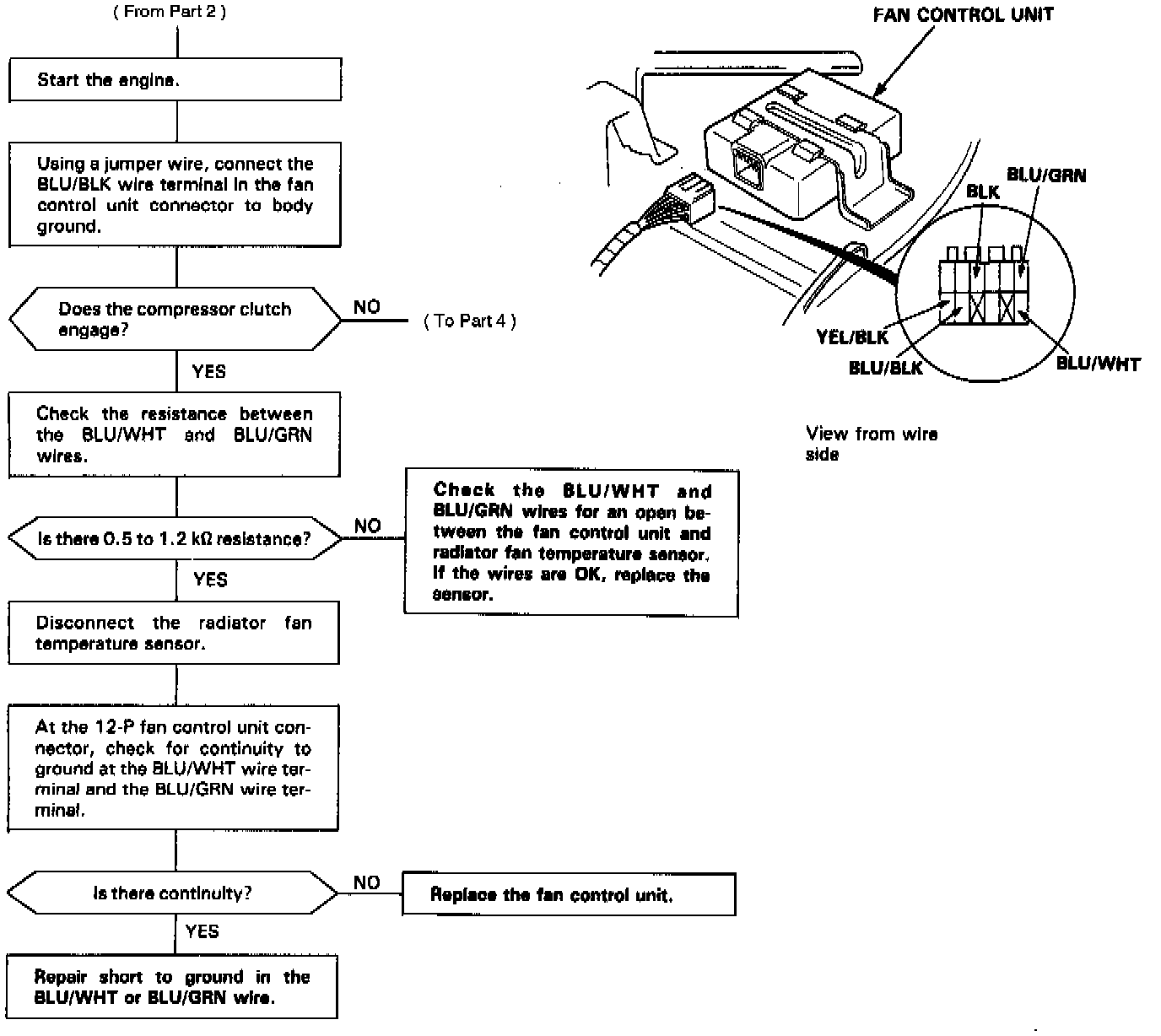

Compressor Clutch, Part 3 Of 4:





Compressor Clutch, Part 4 Of 4:
