Compressor Clutch Coil: Testing and Inspection

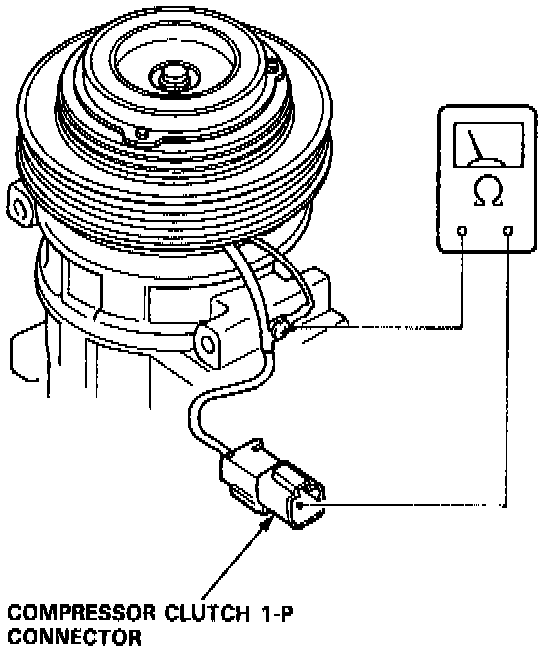

Check resistance of the field coil:

Field Coil Resistance: 3.6 ± 0.2 ohm at 68°F (20°C)

If resistance is not within specifications replace the coil.
