Blower Motor Does Not Run at All

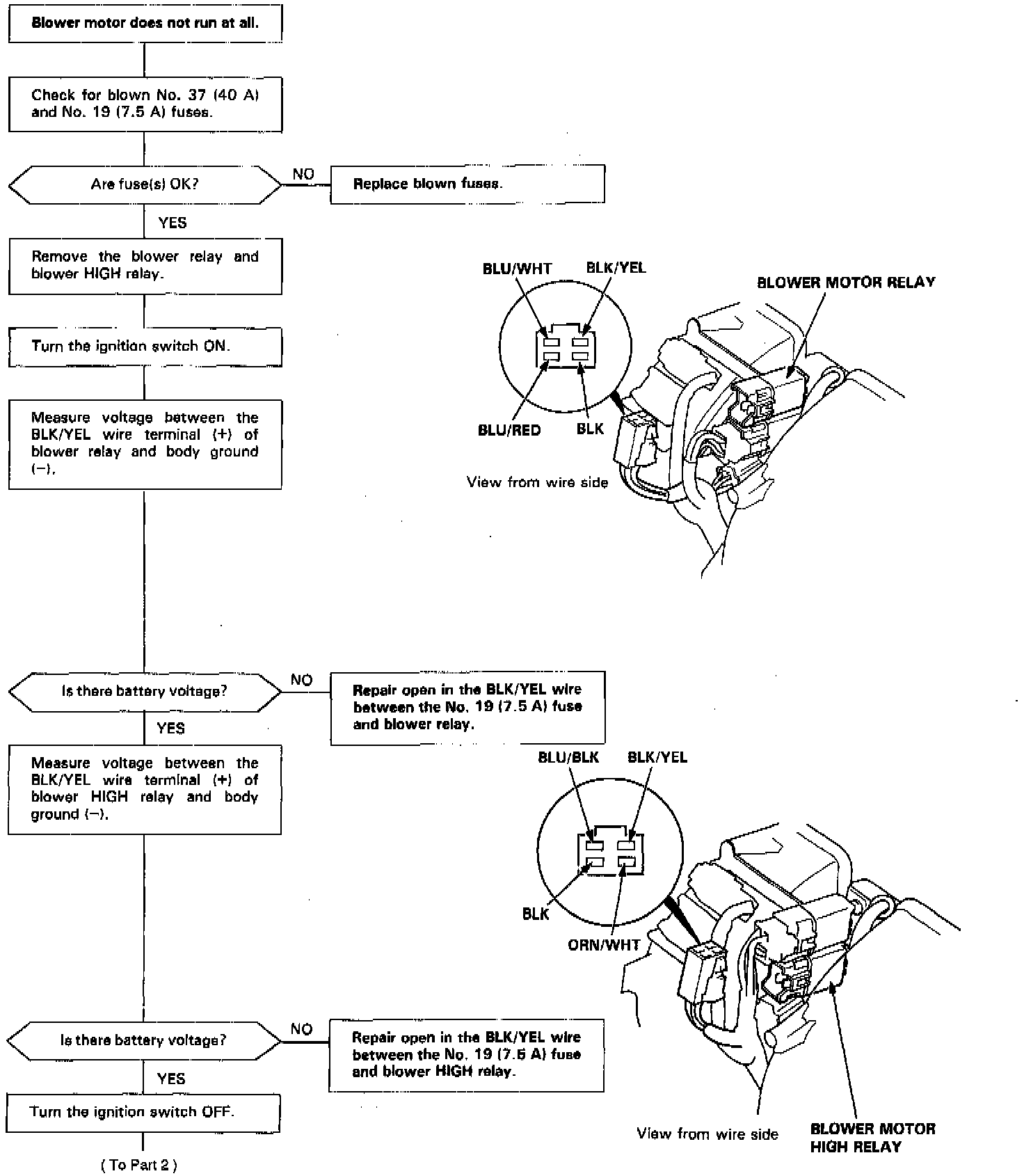

Blower Motor Doesn't Run, Part 1 Of 4:

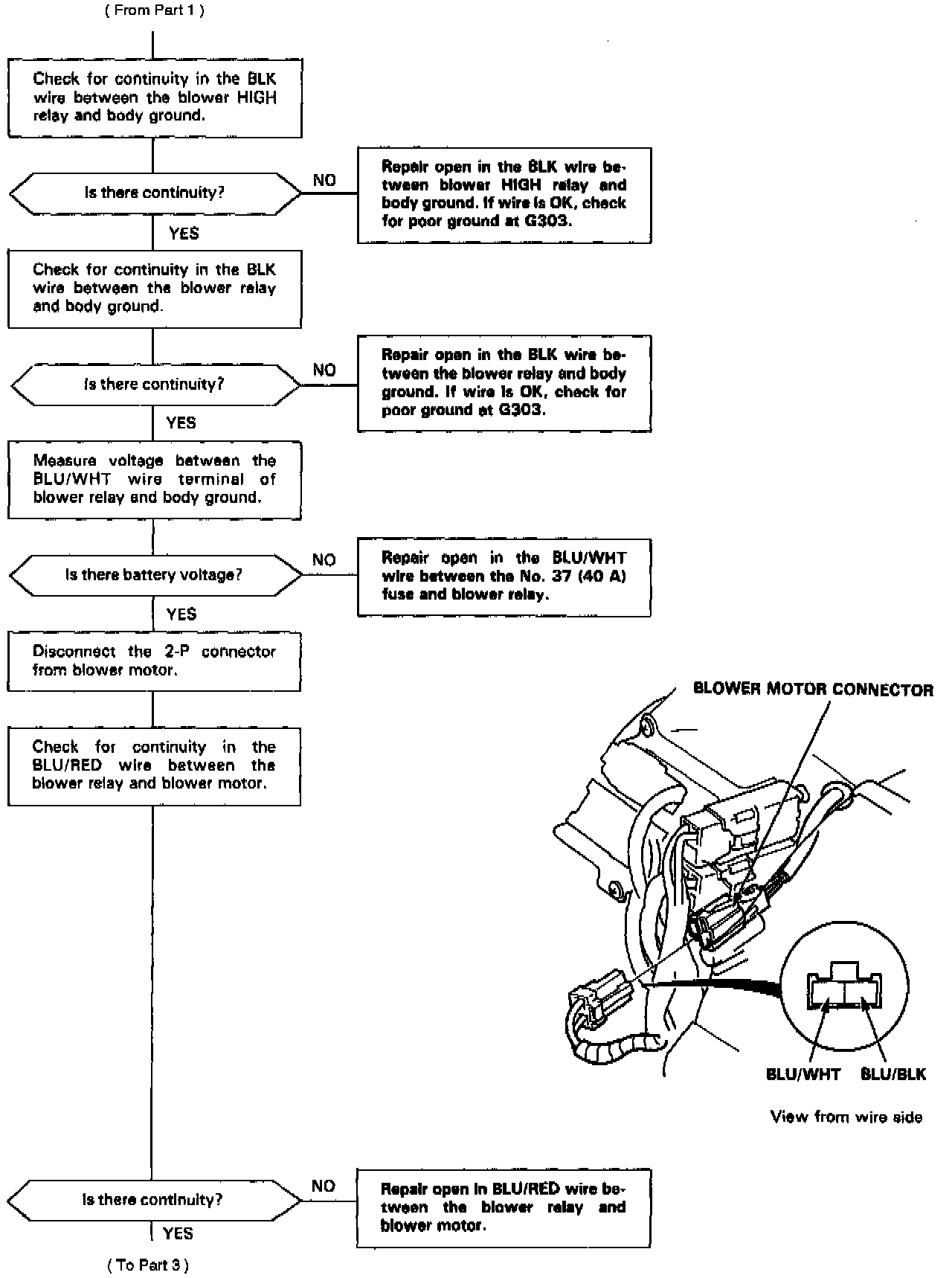

Blower Motor Doesn't Run, Part 2 Of 4:

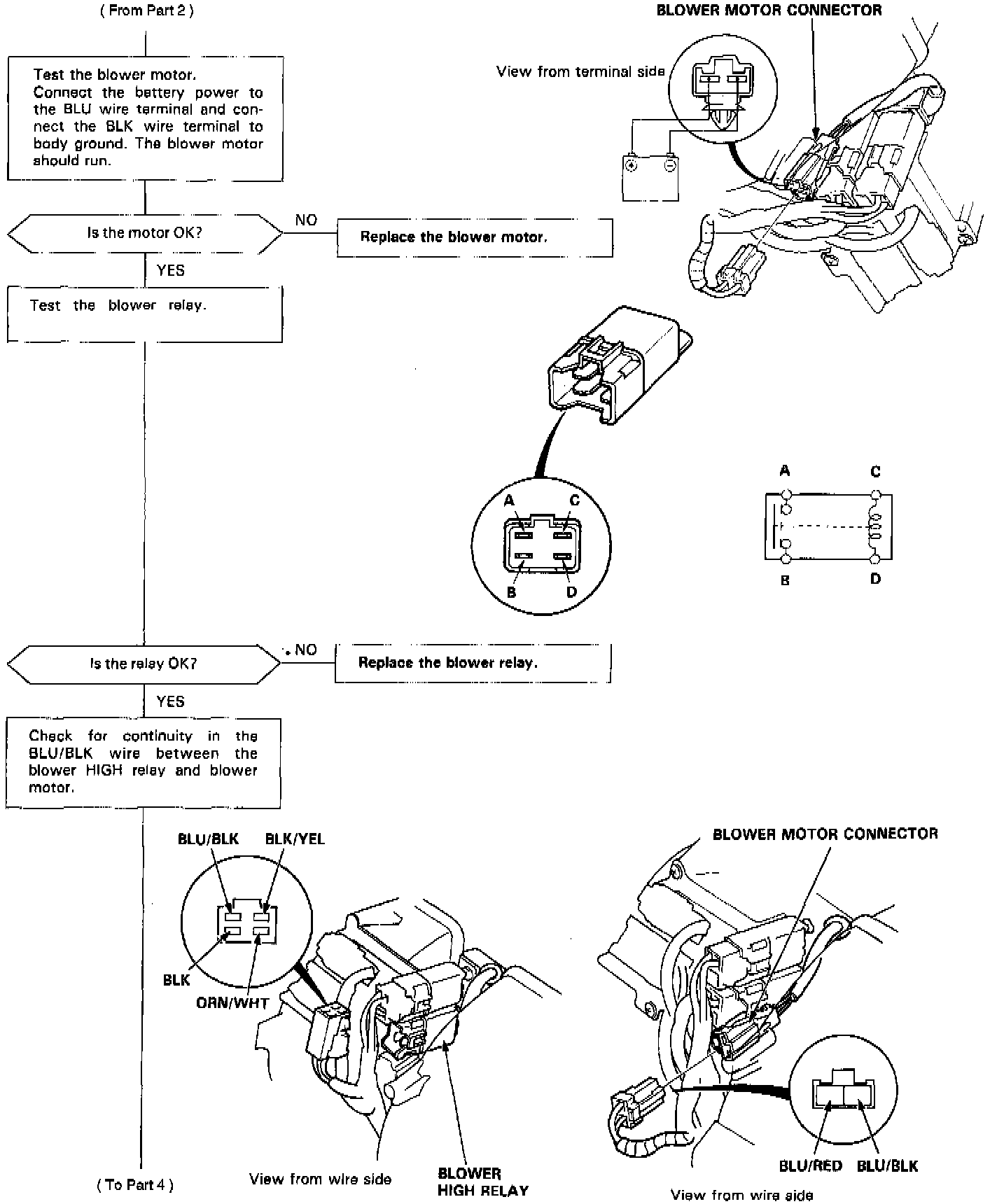

Blower Motor Doesn't Run, Part 3 Of 4:

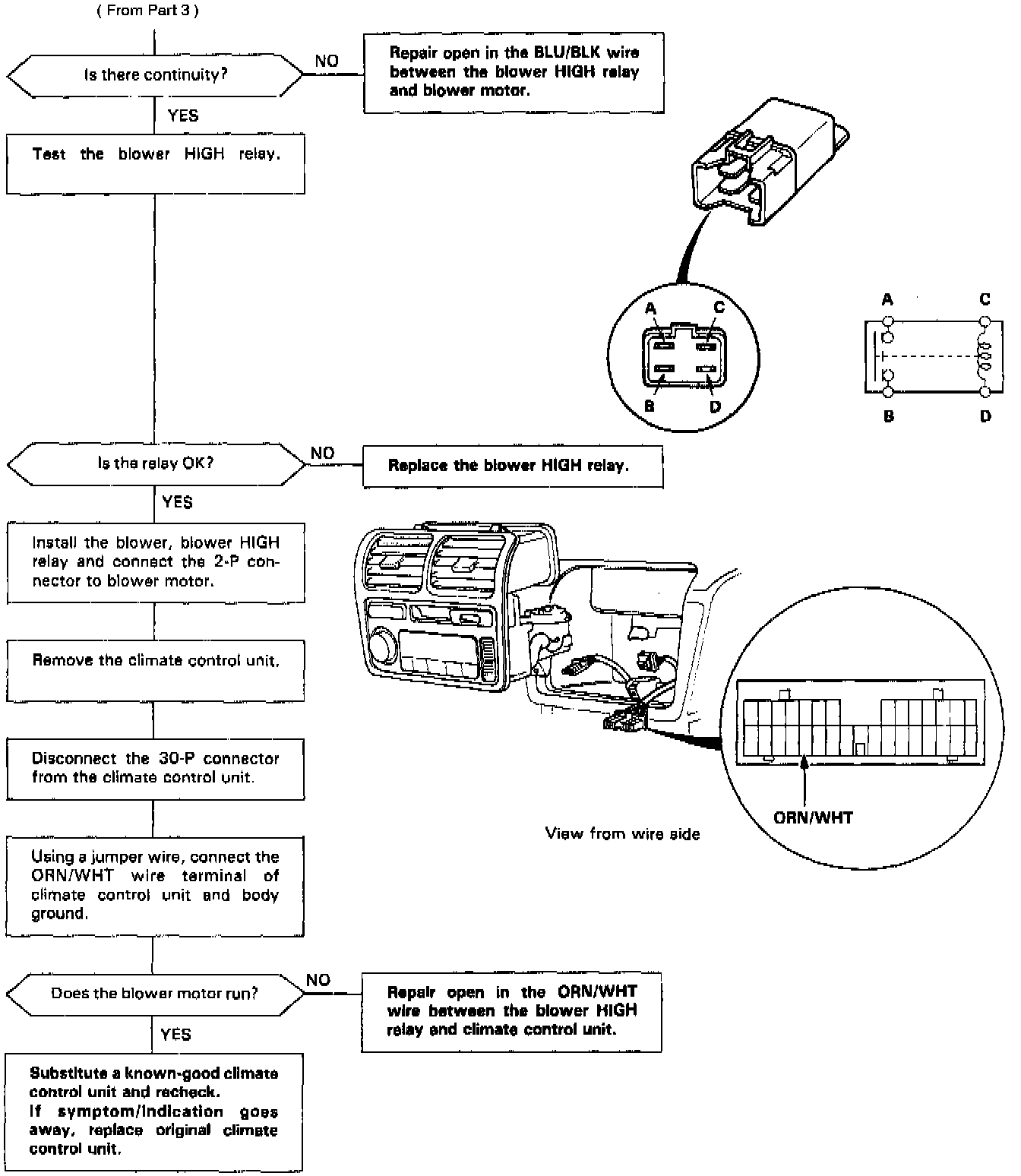

Blower Motor Doesn't Run, Part 4 Of 4:
