Blower Motor Relay: Testing and Inspection

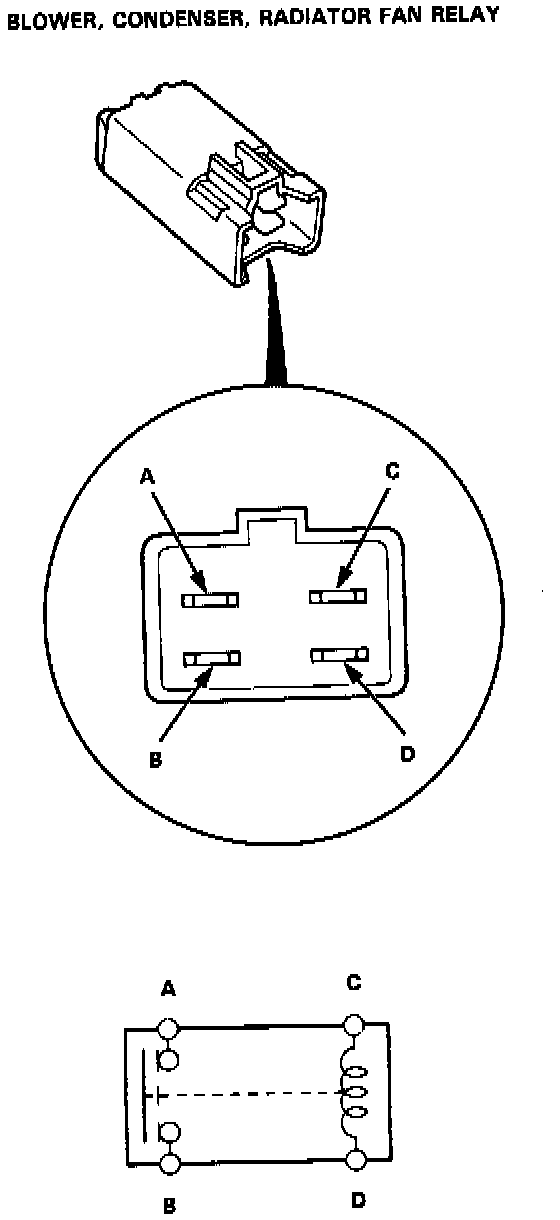

[1][2]BLOWER MOTOR RELAY AND BLOWER MOTOR HIGH RELAY
There should be continuity between the A and B terminals when the battery is connected to the C and D terminals.
There should be no continuity when the battery is disconnected.
