Aspirator: Service and Repair

CAUTION:

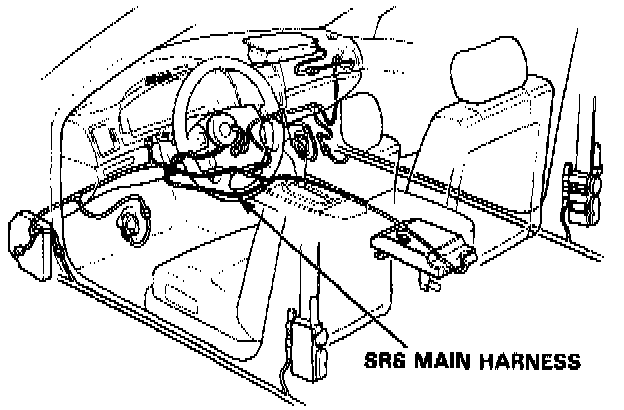

- All SRS wiring harnesses are covered with yellow outer insulation.
- Before disconnecting any part of the SRS wire harness, install the short connectors.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.





1. Remove the climate control unit.

NOTE: The original equipment radio has a coded theft protection circuit. If service to the car requires any of the following, be sure you get the customer's code number before you begin work:
- disconnecting the battery.
- removal of fuse No. 56 (7.5 A).
- removal of the radio.
After service, reconnect power to the radio and turn it on.
The word "CODE" will be displayed. Enter the customer's 5-digit code to restore radio operation.

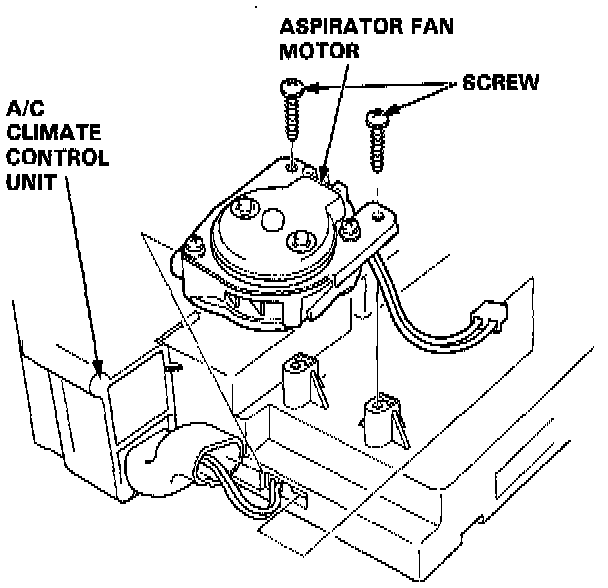

2. Disconnect the aspirator fan connector as shown.
3. Remove its mounting screws, then remove the aspirator fan.
