Diagnostic Flowchart

Outside Air Temperature Sensor, Part 1 Of 2:

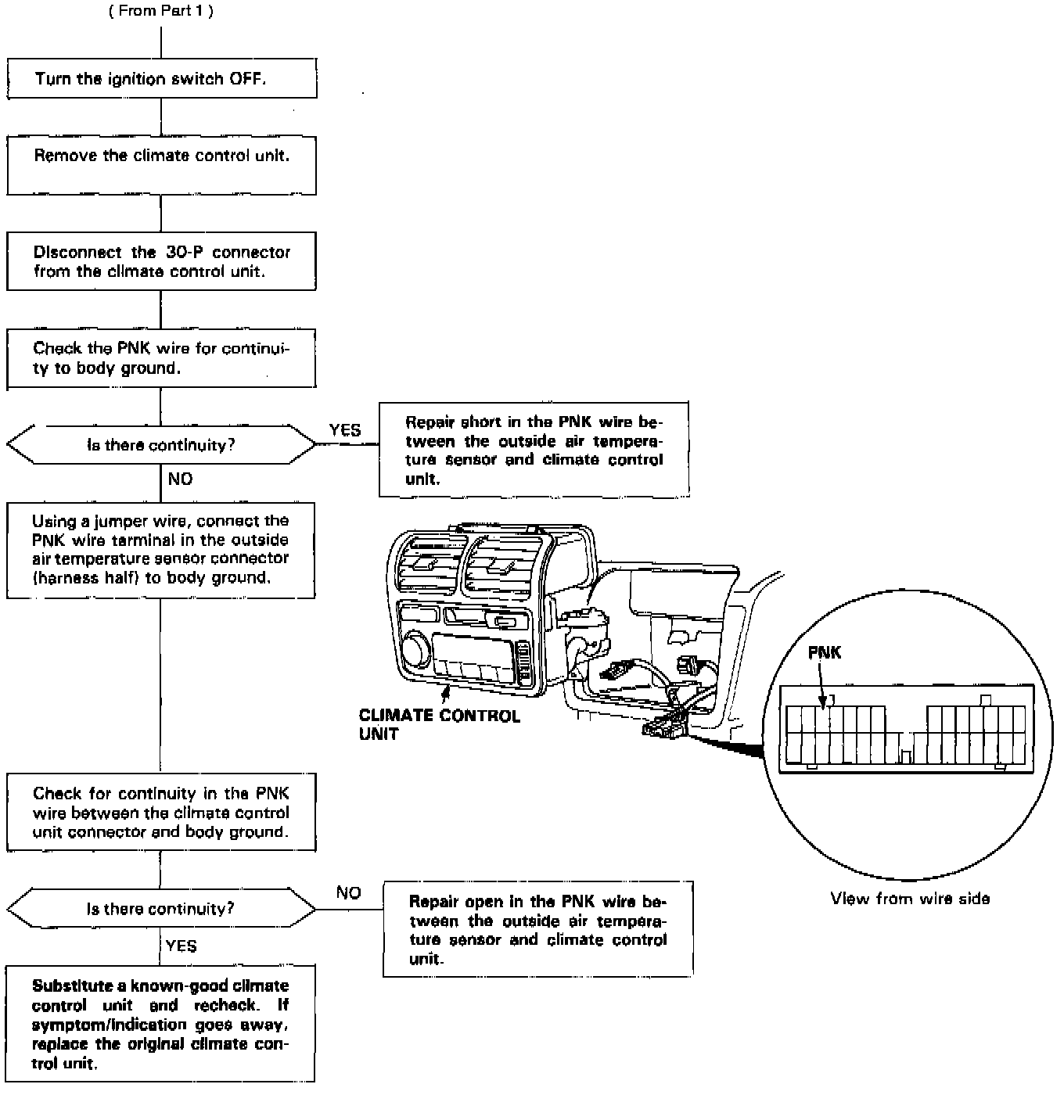

Outside Air Temperature Sensor, Part 2 Of 2:
