Acura
>>
1992
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Starting System
>>
Mitsubishi Starter
Mitsubishi Starter

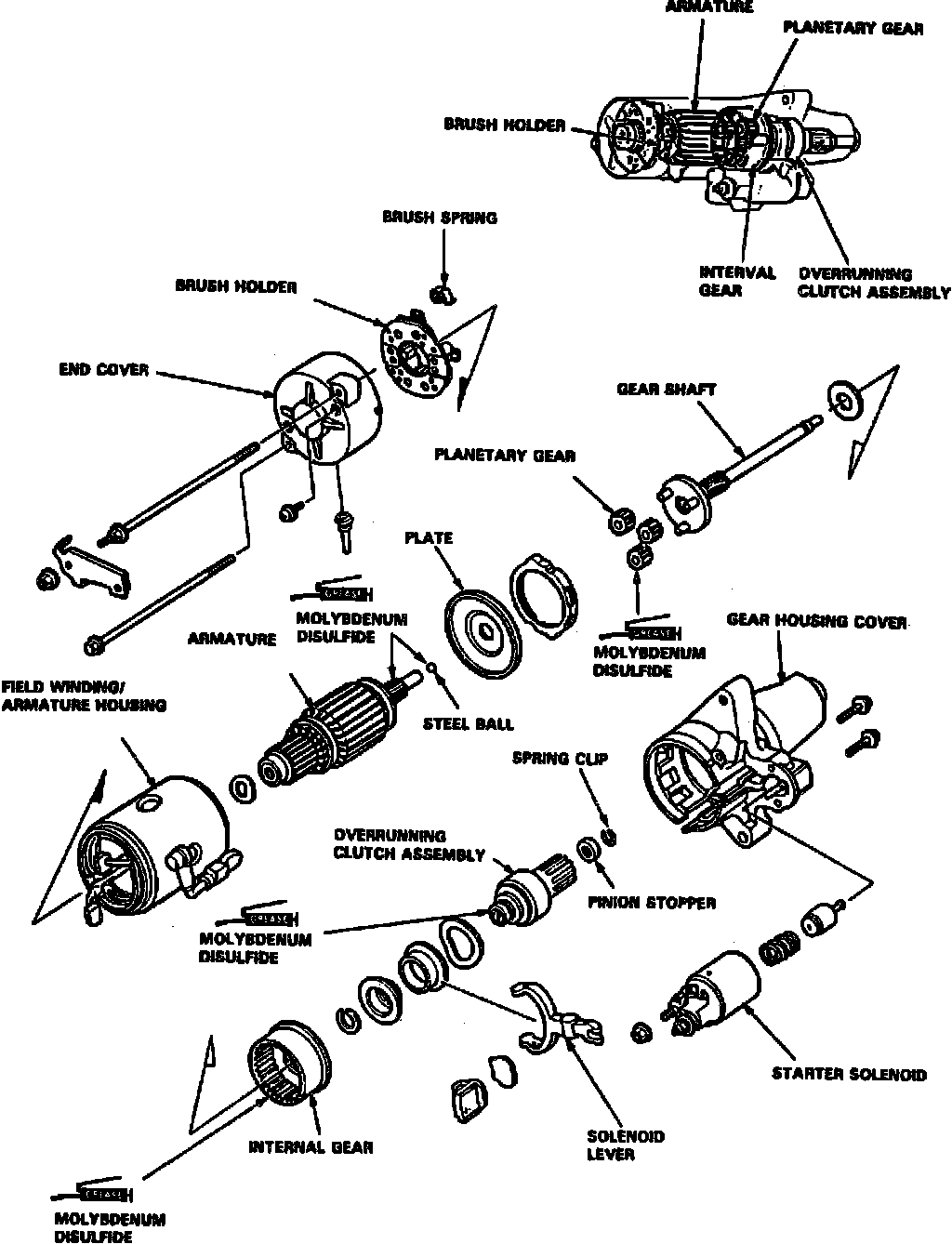

Fig. 4 Starter Motor Exploded View:
