Radiator Cooling Fan Control Module
>>
Manual Heating and Air Conditioning
>>

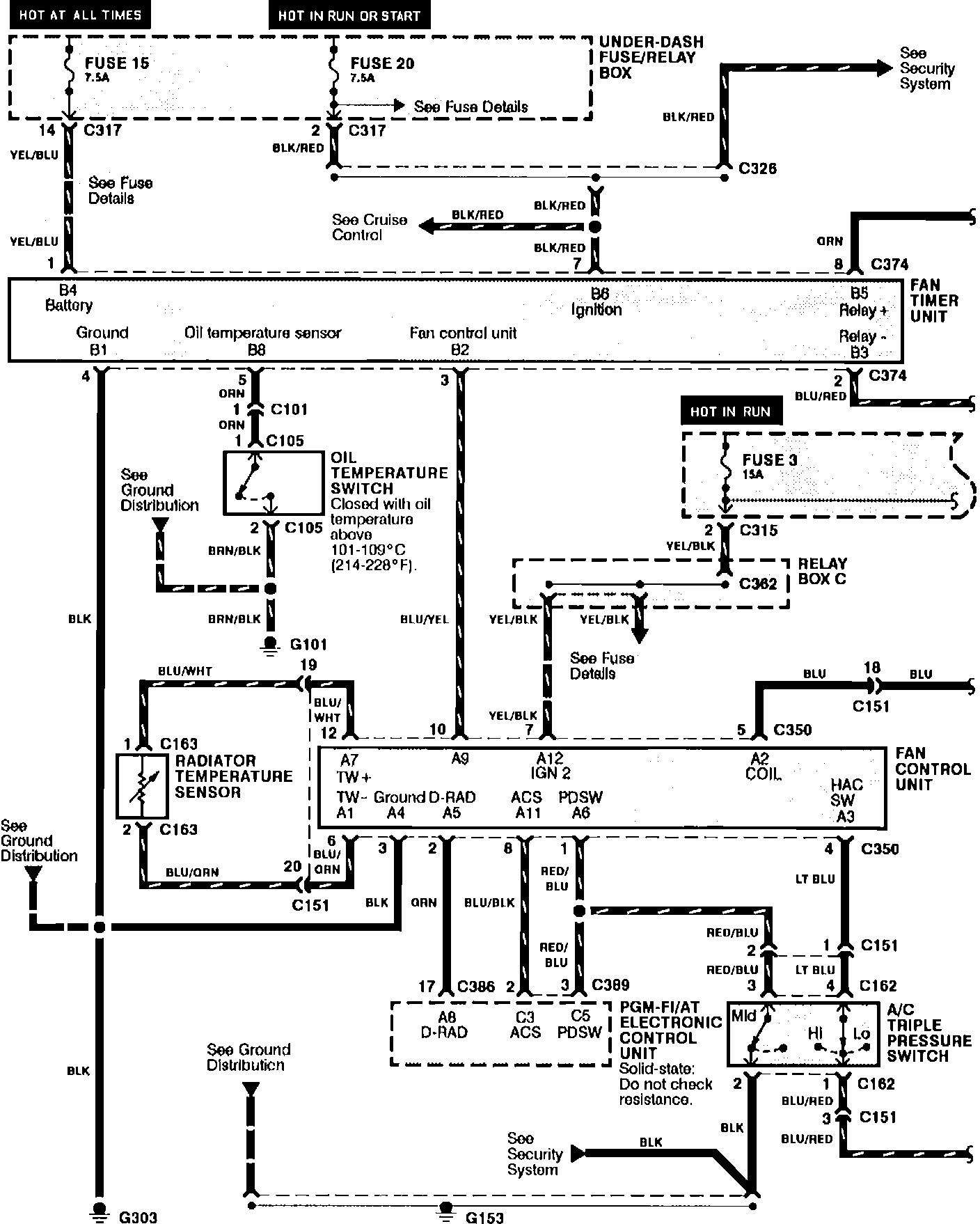

Electrical Schematic

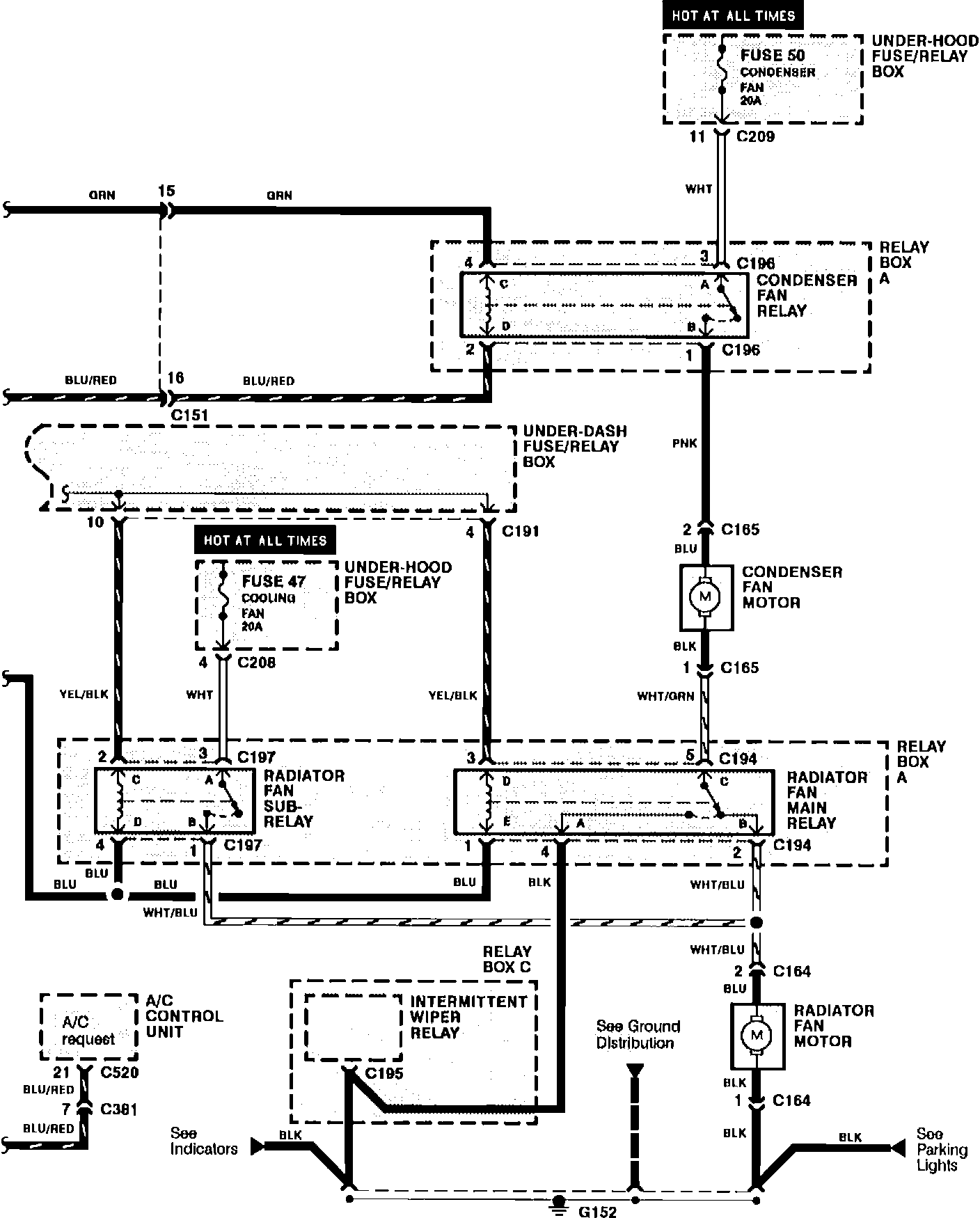

Electrical Schematic
A/C (Manual): Fans:
A/C (Manual): Fans:
