Home >> Acura >> 1992 >> Legend Coupe V6-3206cc 3.2L SOHC FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> System Diagram >> Entry Light Timer System >> Less Alarm >> LS Model

LS Model

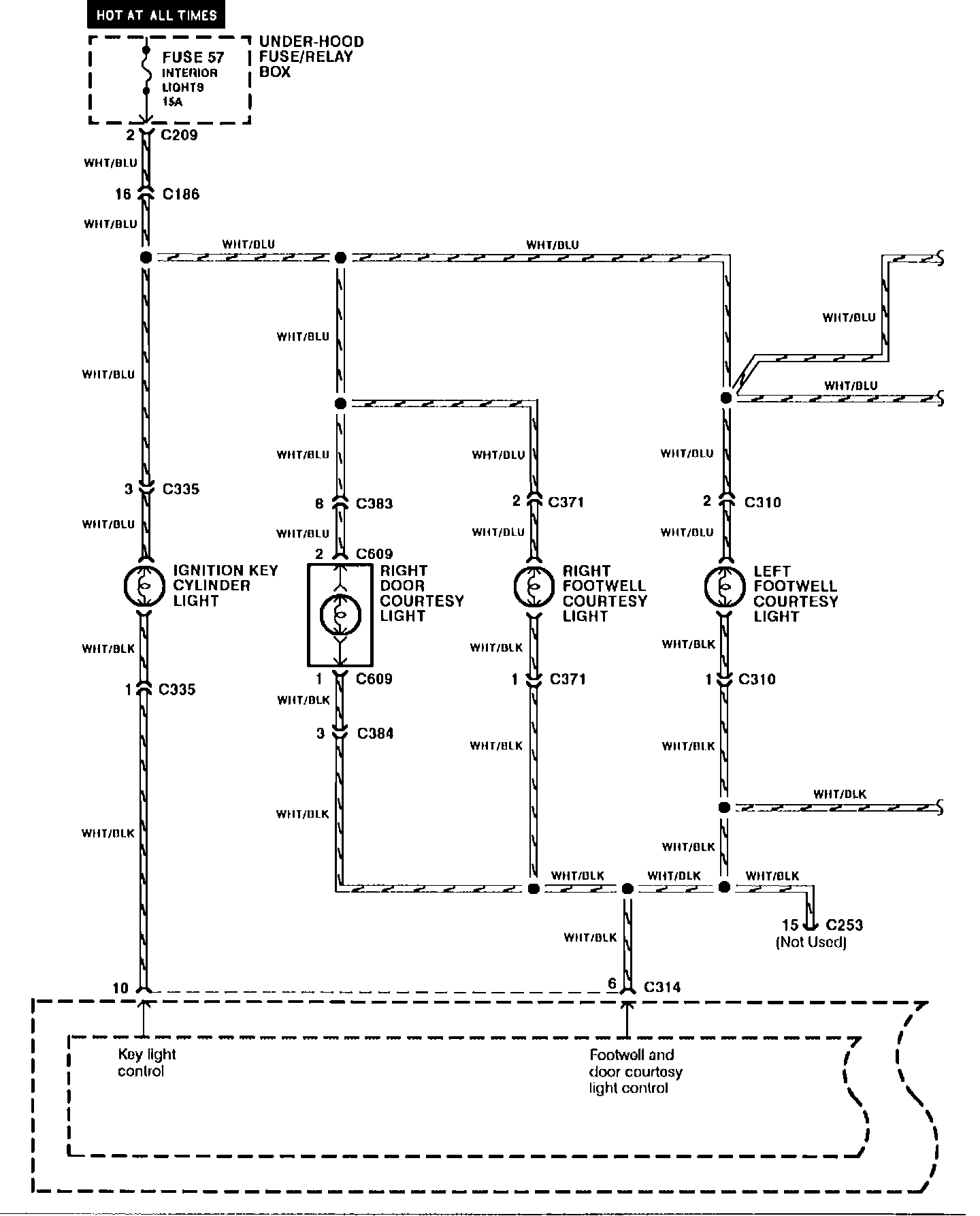

Entry Light Timer System: LS Model:

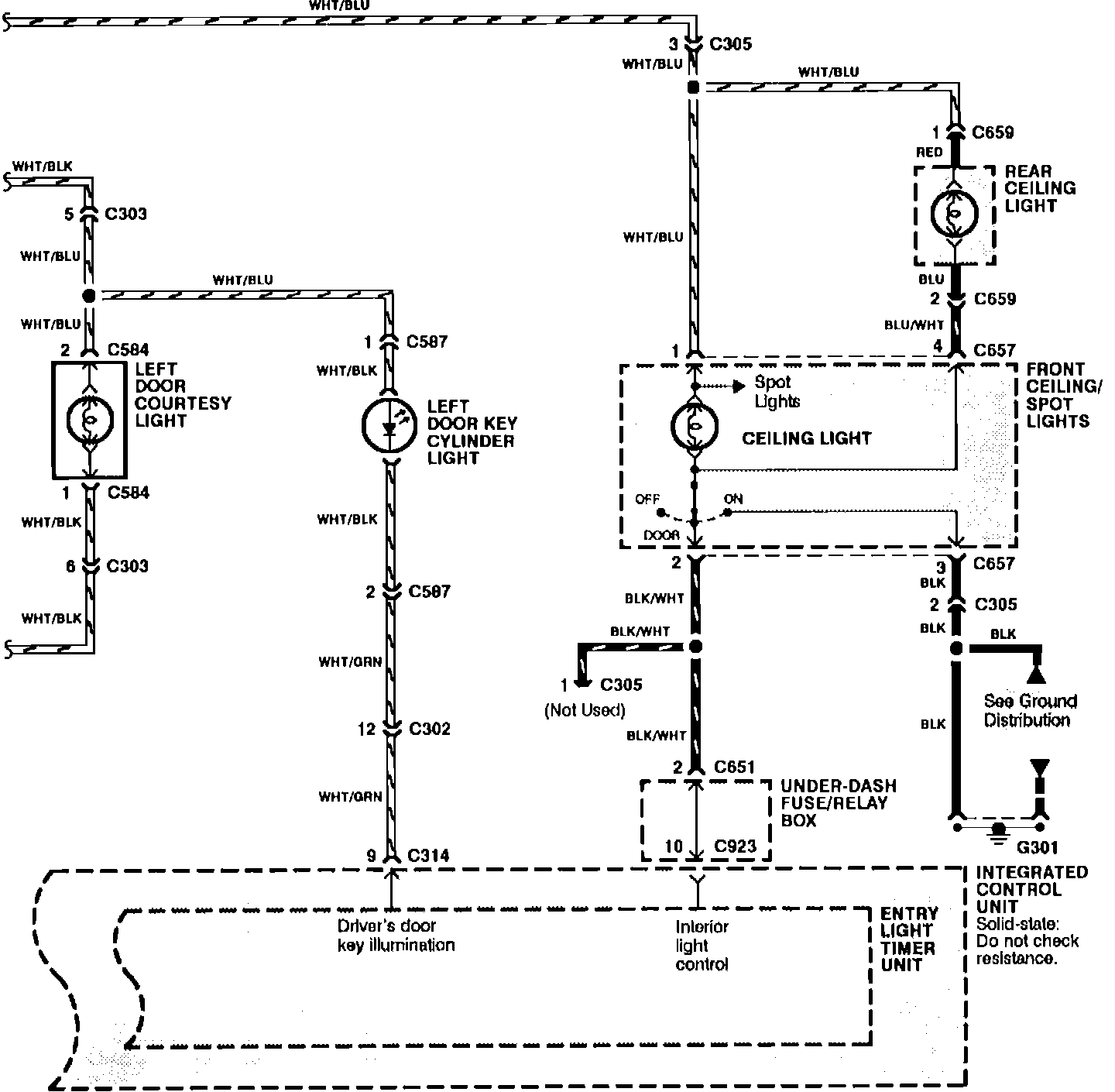

Entry Light Timer System: LS Model:
