Home
>>
Acura
>>
1992
>>
Legend Coupe V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Lamp
>>
System Diagram
>>
Entry Light Timer System
>>
Less Alarm
>>
L Model
L Model

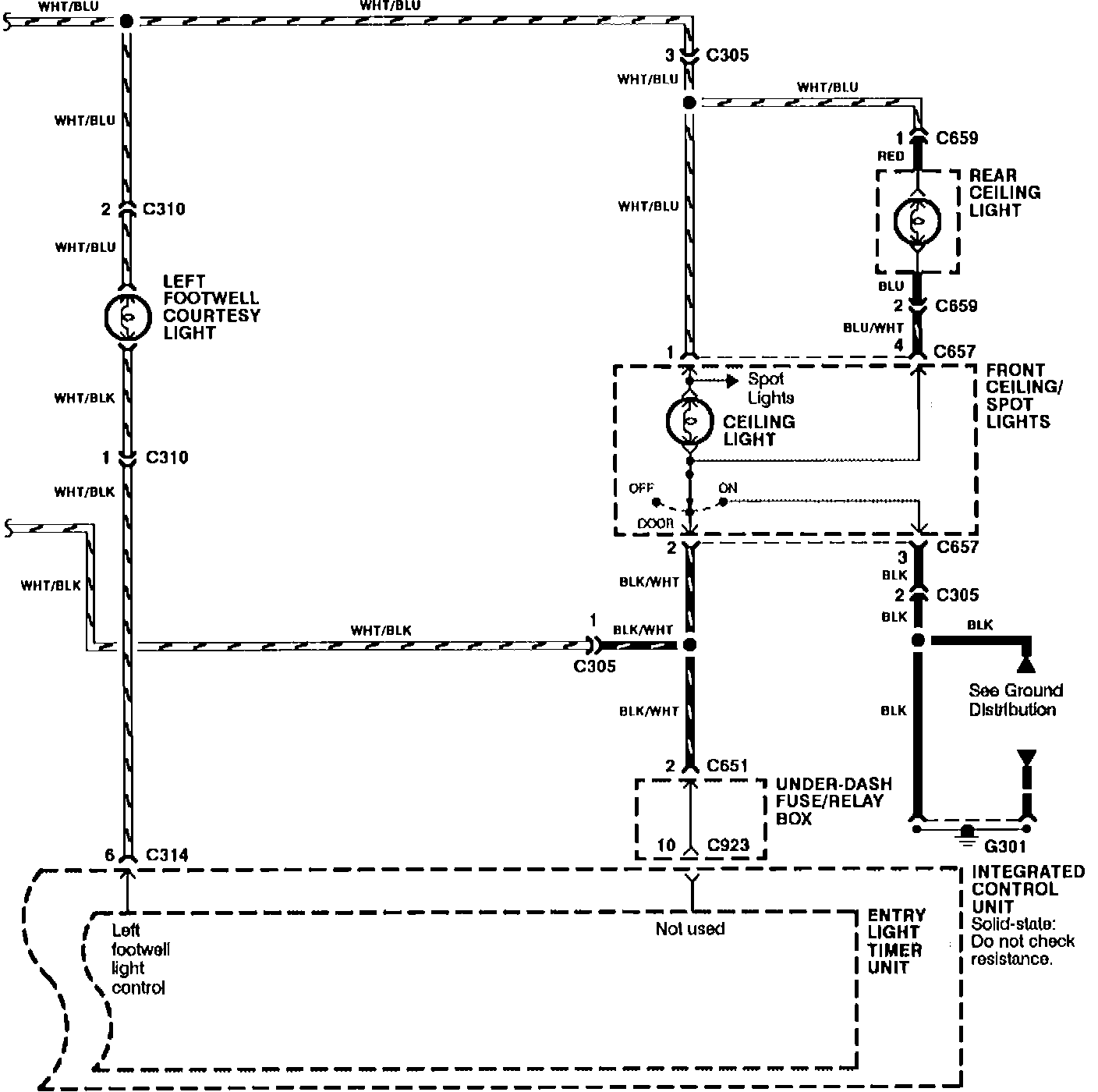

Entry Light Timer System: L Model:

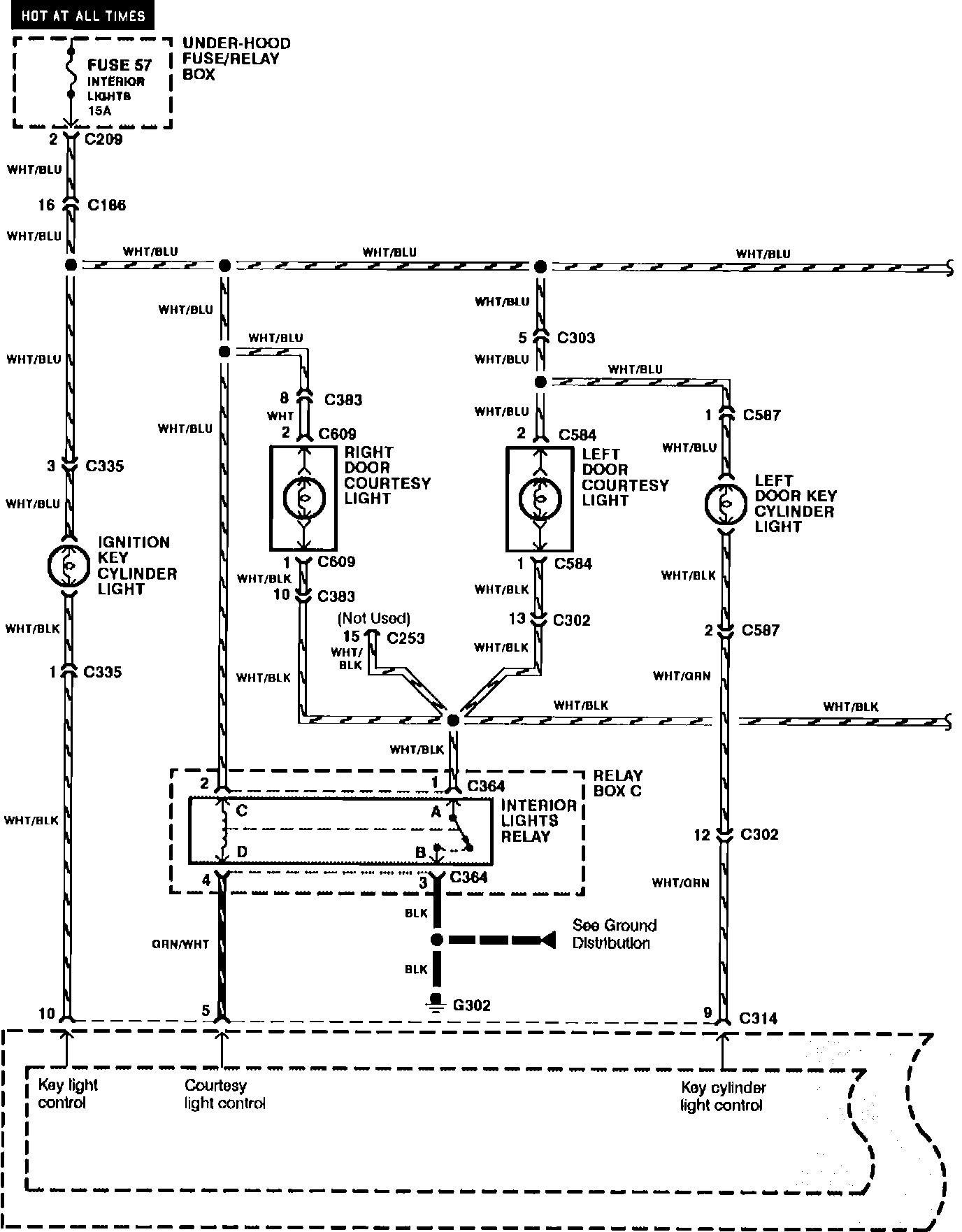

Entry Light Timer System: L Model:
