Rear

Thickness and Parallelism Inspection

1. Support the rear of the car on safety stands and remove the rear wheels.

2. Remove the rear brake caliper. Service and Repair

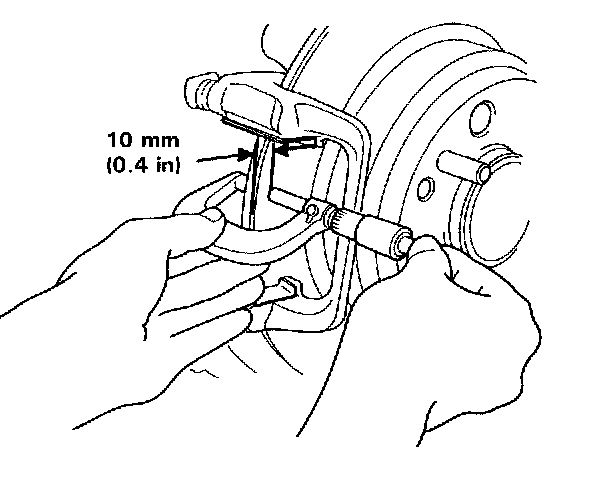

3. Using a micrometer, measure the brake disc thick- ness at eight points, approximately 45° apart and 10 mm (0.4 in) in from the outer edge of the disc.

Brake Disc Thickness:
Standard: 9.0 mm (0.35 in)

Brake Disc Parallelism: 0.015 mm (0.0006 in) max.

NOTE: This is the maximum allowable difference between any thickness measurements.

4. If the disc is beyond the limit for parallelism, refinish the disc.

Max. Refinishing Limit: 7.5 mm (0.30 in)
