Home >> Acura >> 1992 >> Integra L4-1834cc 1.8L DOHC FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls >> USA

USA

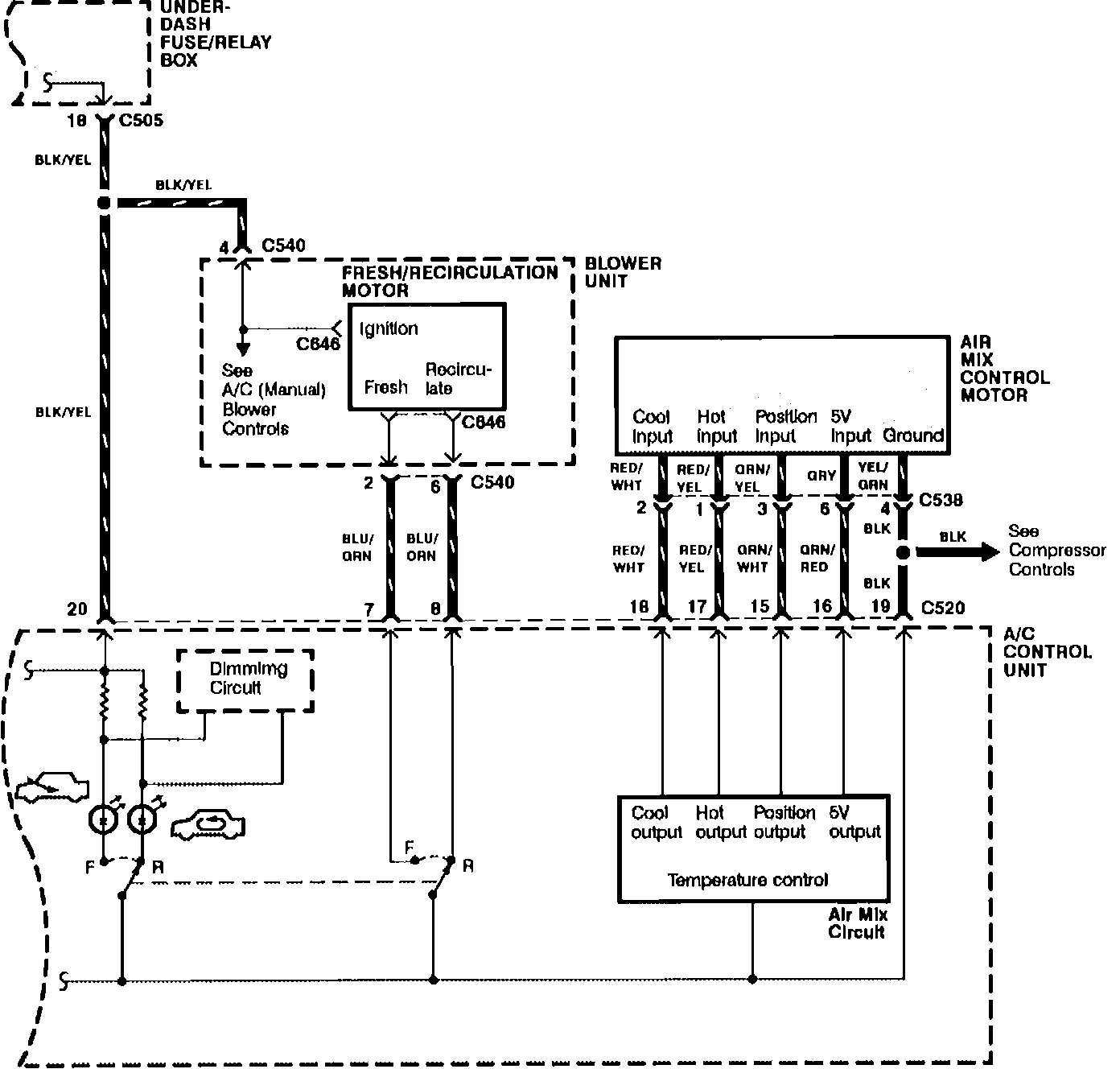

A/C (Manual): Compressor Controls:

A/C (Manual): Air Delivery:
