Reverse Idler Gear: Service and Repair

Reverse Shift Fork, Reverse Idler Gear Removal

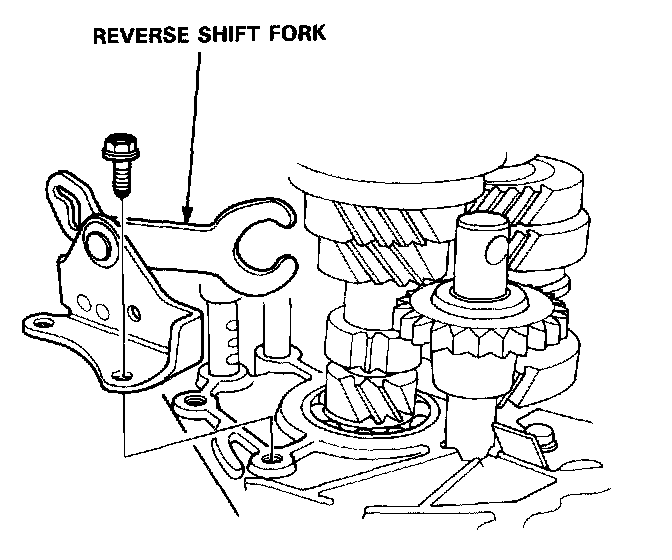

1. Remove the reverse shift fork.

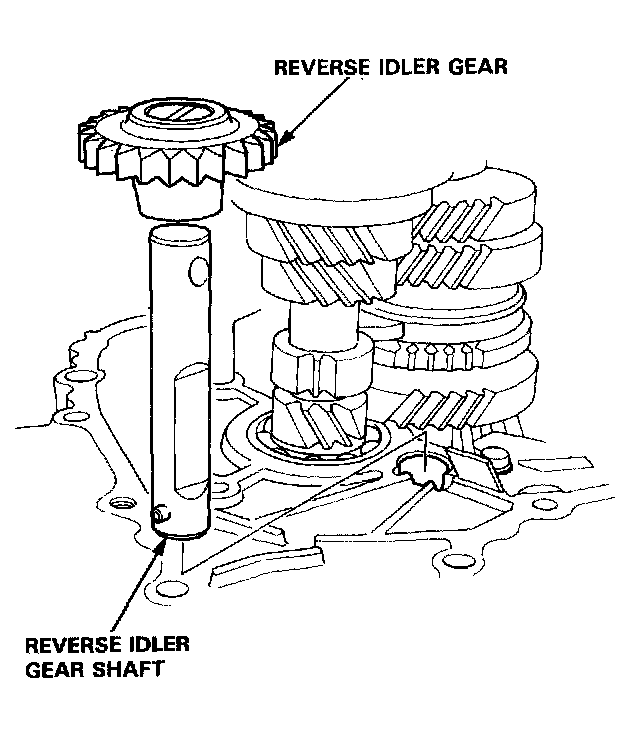

2. Shift the 3rd/4th shift fork to the 4th side, then remove the reverse idler gear and reverse idler gear shaft.
