Seat Belt Buckle Switch: Testing and Inspection

Driver's Lap Seat Belt Switch Test

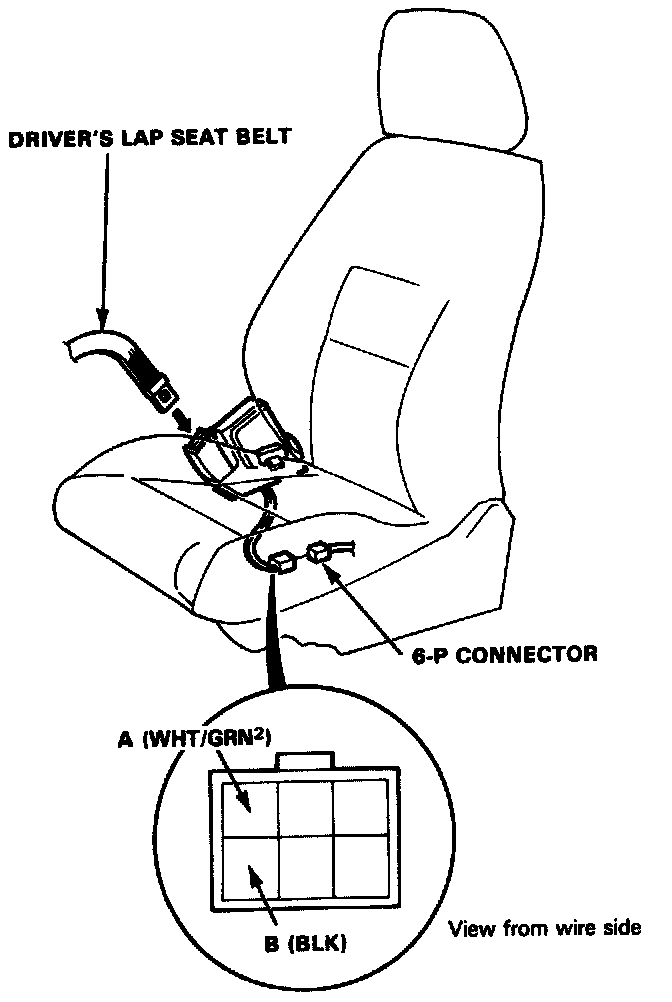

1. Slide the driver's seat forward to disconnect the 6-P connector from the shoulder seat belt retractor.

2. There should be continuity between the A (WHT/ GRN2) and B (BLK) terminals when the driver's lap seat belt is not buckled.

Note: There should be no continuity when the driver's lap seat belt is buckled.
