Acura
>>
1992
>>
Integra L4-1678cc 1.7L DOHC (VTEC) FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>

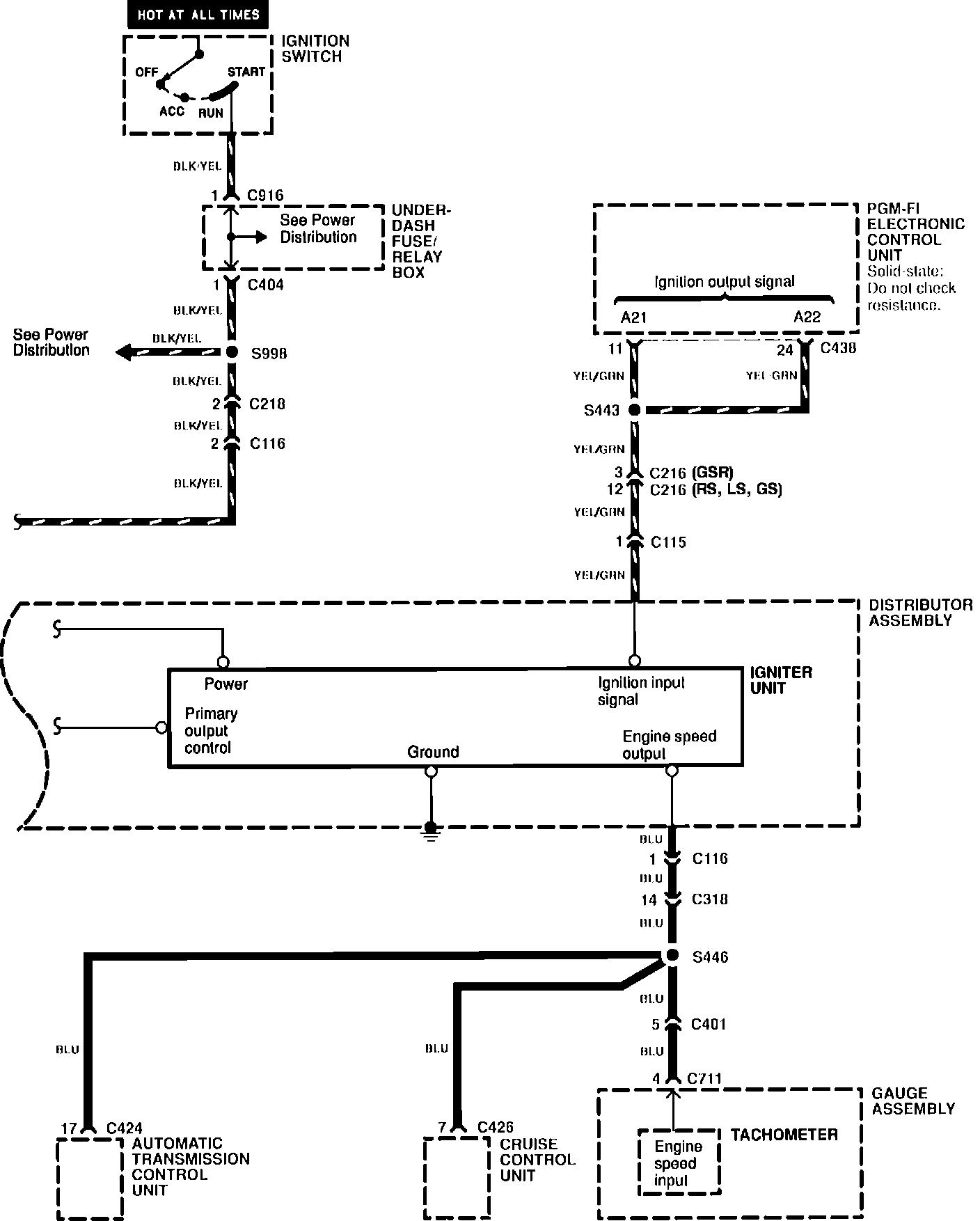

Ignition System Wiring Diagrams
Ignition System Wiring Diagrams
Ignition System:
Ignition System:
