Fuel Pressure Regulator: Service and Repair

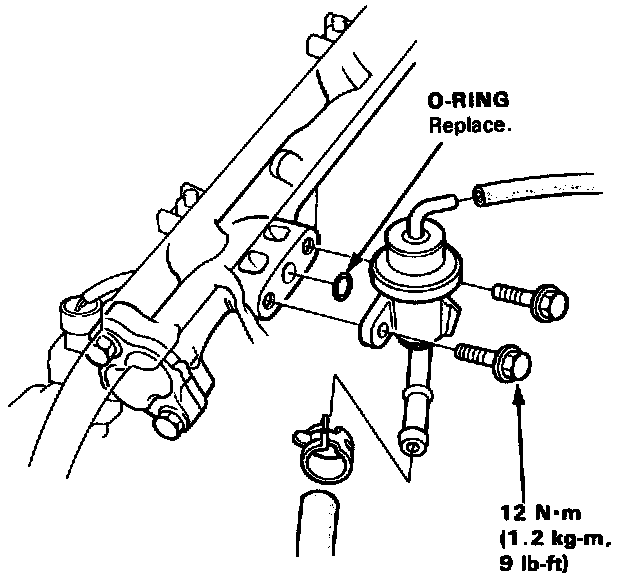

Pressure Regulator Replacement

WARNING: Do not smoke while working on fuel system. Keep open flame away from work area.

1. Place a shop towel under pressure regulator, then relieve fuel pressure. Service and Repair
2. Disconnect the vacuum hose and fuel return hose.
3. Remove the two 6 mm retainer bolts.

NOTE:
- Replace the 0-ring.
- When assembling the regulator, apply clean engine oil to the 0-ring and assemble it into its proper position, taking care not to damage the 0-ring.
