Emission Control Systems: Diagrams

Vacuum Hose Routing:





VACUUM HOSE ROUTING

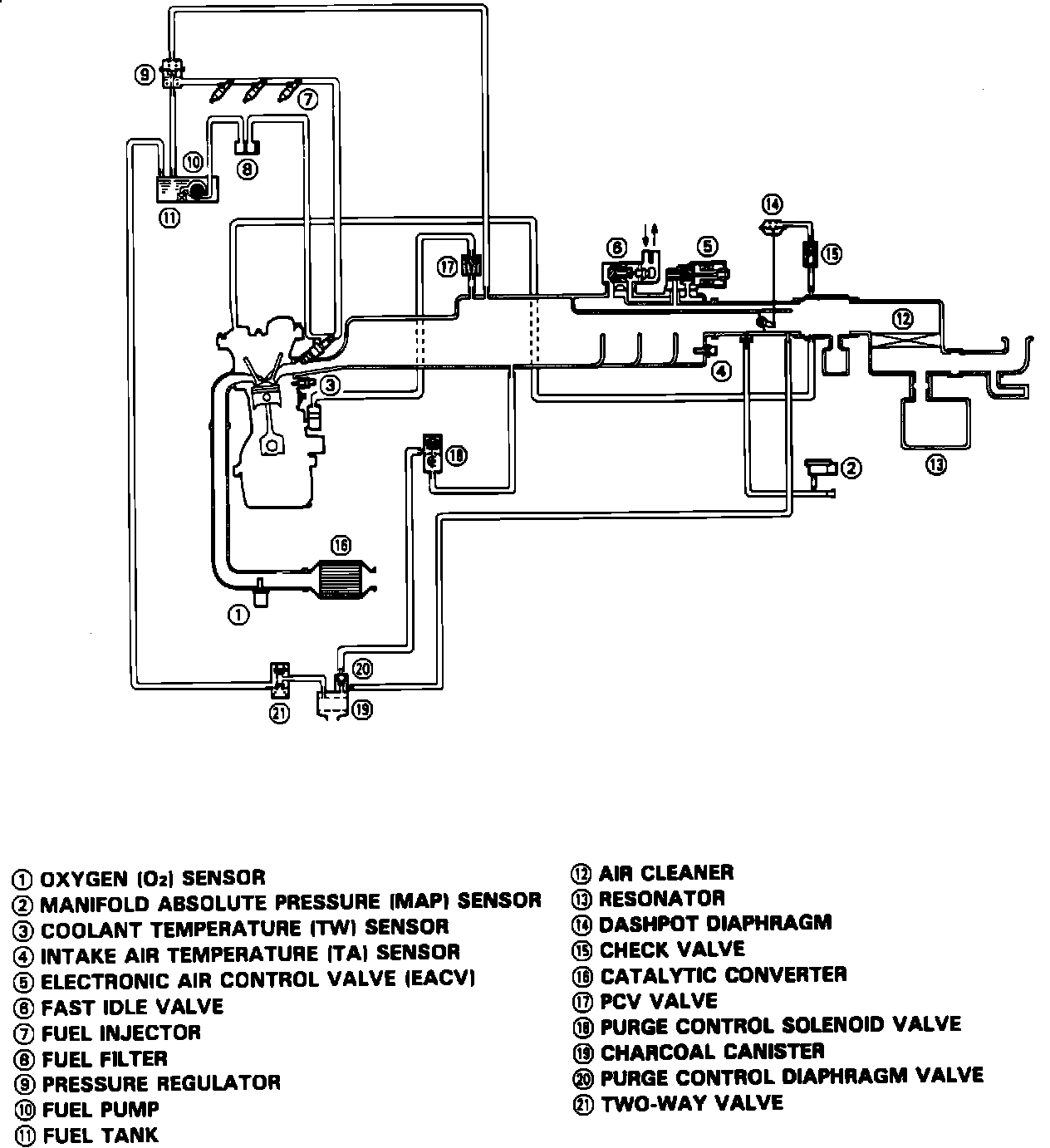

System Schematic:





SYSTEM SCHEMATIC
