Home
>>
Acura
>>
1992
>>
Integra L4-1678cc 1.7L DOHC (VTEC) FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Dash Fuse/Relay Box
>>

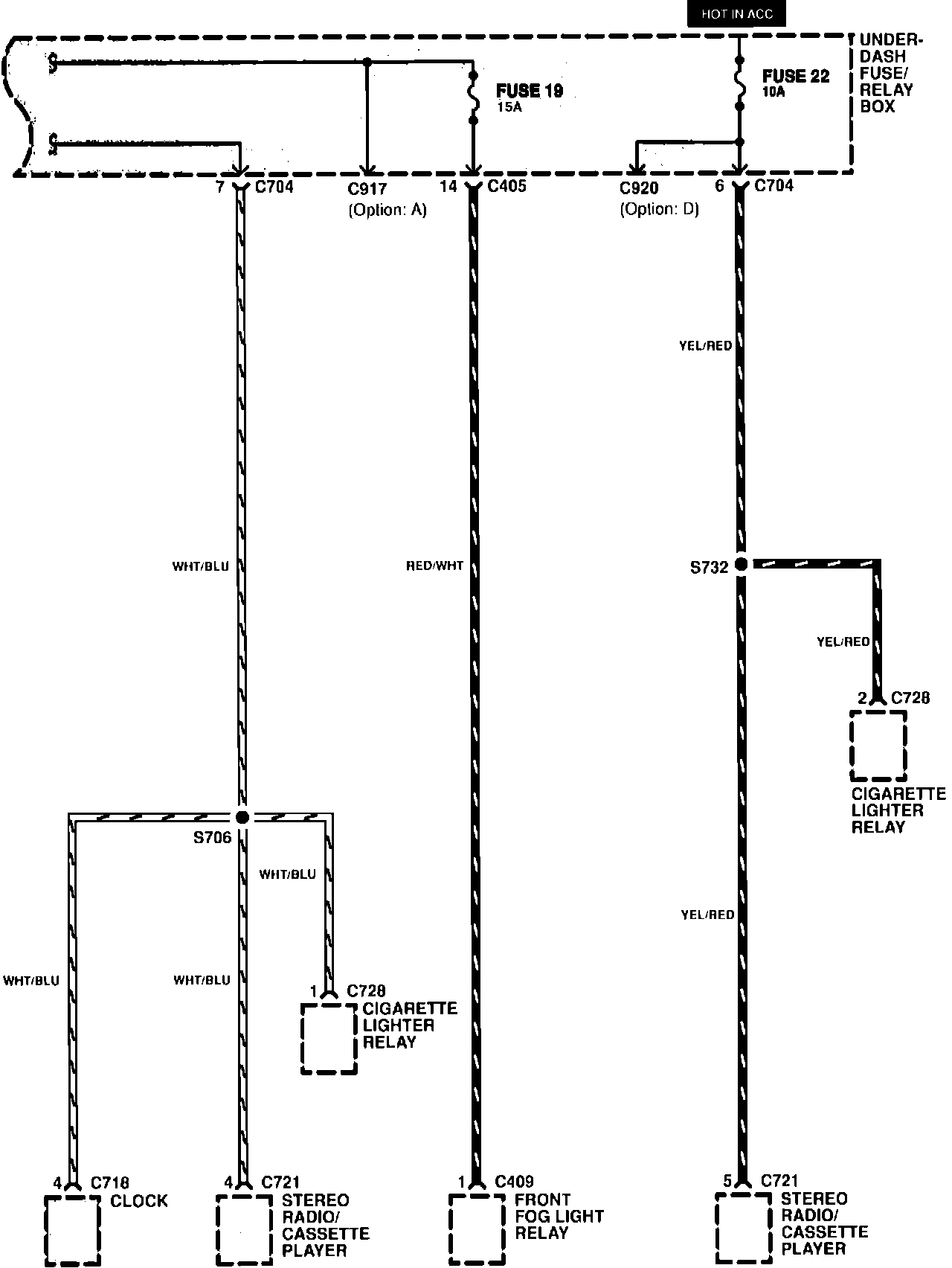

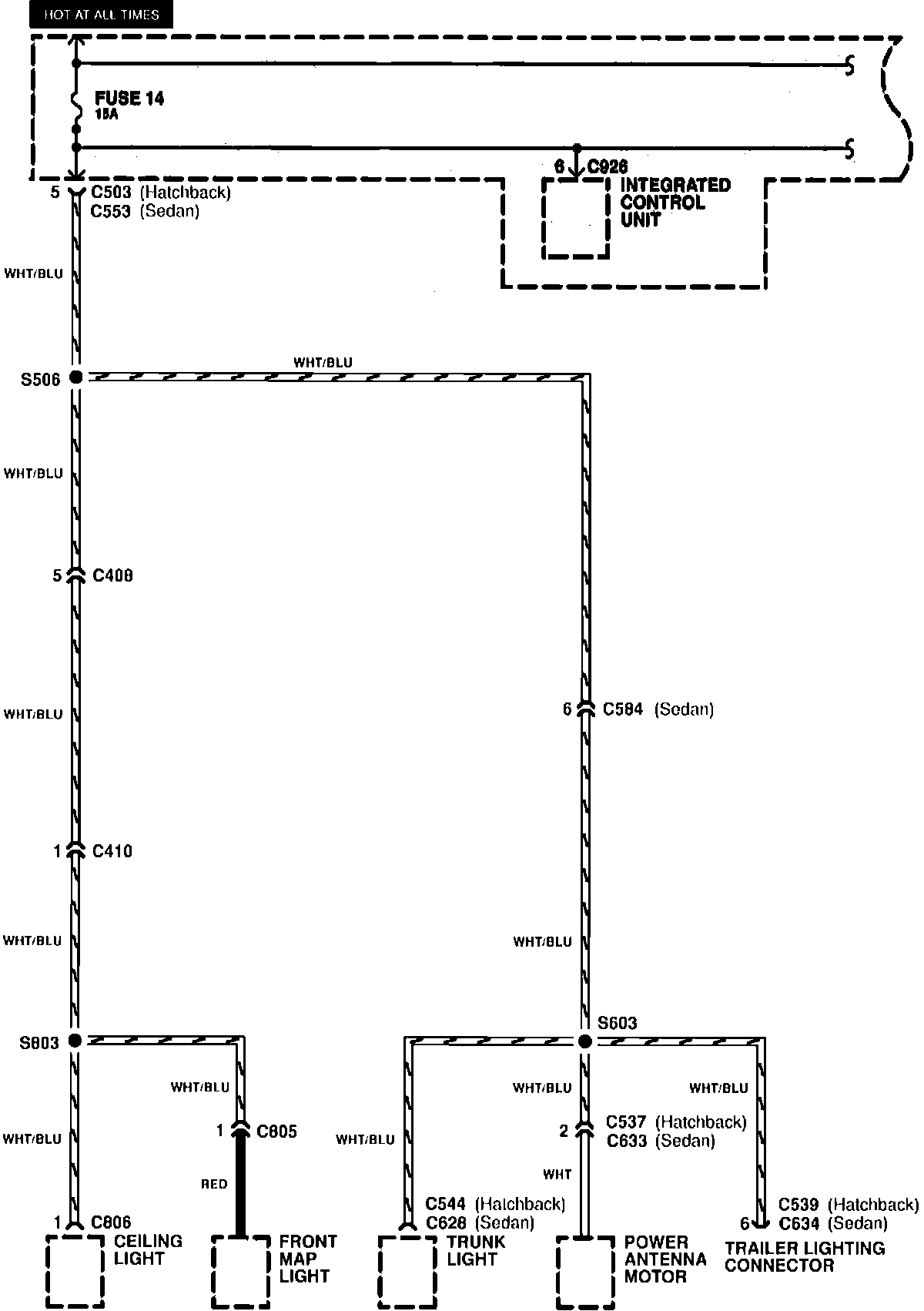

Fuse 14, 19, and 22
Fuse 14, 19, and 22
Power Distribution: Under-dash Fuse/Relay Box:
Power Distribution: Under-dash Fuse/Relay Box:
