Curiosii for ever!: Car repair manuals for everyone.
Home >> Acura >> 1992 >> Integra L4-1678cc 1.7L DOHC (VTEC) FI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Under-Dash Fuse/Relay Box >> Fuse 12, 18, 20, 21, and 25

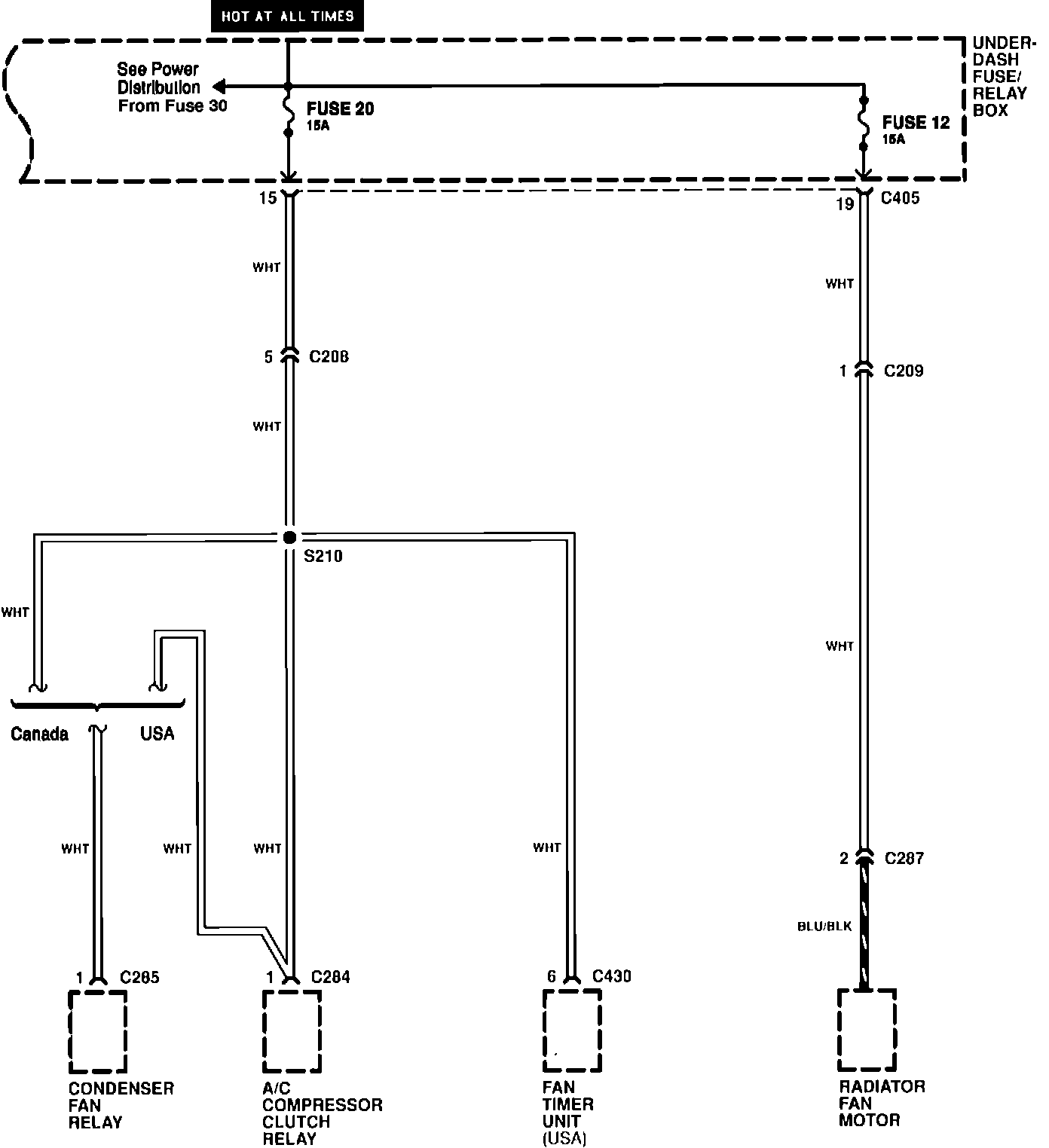

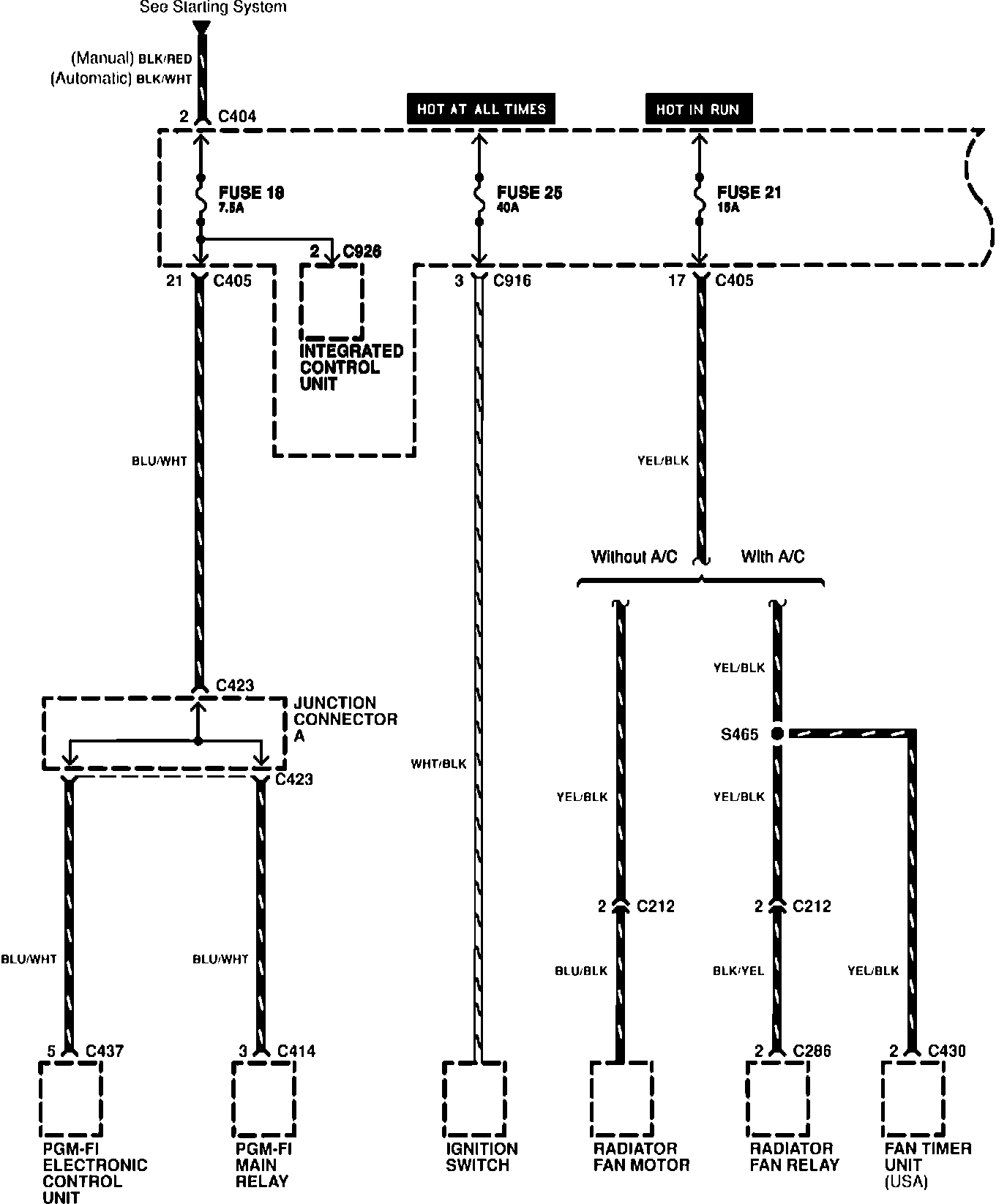

Fuse 12, 18, 20, 21, and 25

Power Distribution: Under-dash Fuse/Relay Box:



Power Distribution: Under-dash Fuse/Relay Box:
