Timing Belt: Adjustments

Tension Adjustment

CAUTION: Always adjust timing belt tension with the engine cold.

NOTE:
- The tensioner is spring-loaded to apply proper tension to the belt automatically after making the following adjustment.
- Always rotate the crankshaft counterclockwise when viewed from the pulley side. Rotating it clockwise may result in improper adjustment of the belt tension.

1. Remove the cylinder head cover.
2. Set the No. 1 piston at TDC.

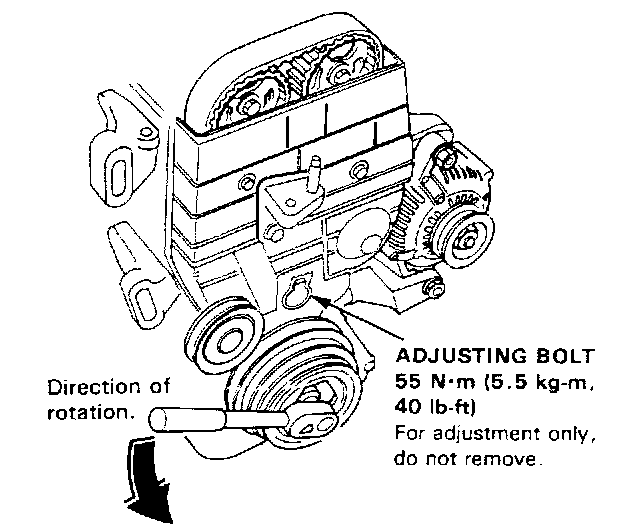

3. Rotate the crankshaft counterclockwise 3-teeth on the camshaft pulley, then loosen the adjusting boll to create tension on the timing belt.
4. Tighten the adjusting bolt.
5. After adjusting, retorque the crankshaft pulley bolt to 180 N.m (18.0 kg.m, 130 lb.ft).
