Home >> Acura >> 1992 >> Integra L4-1678cc 1.7L DOHC (VTEC) FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seat Belt Systems

Seat Belt Systems

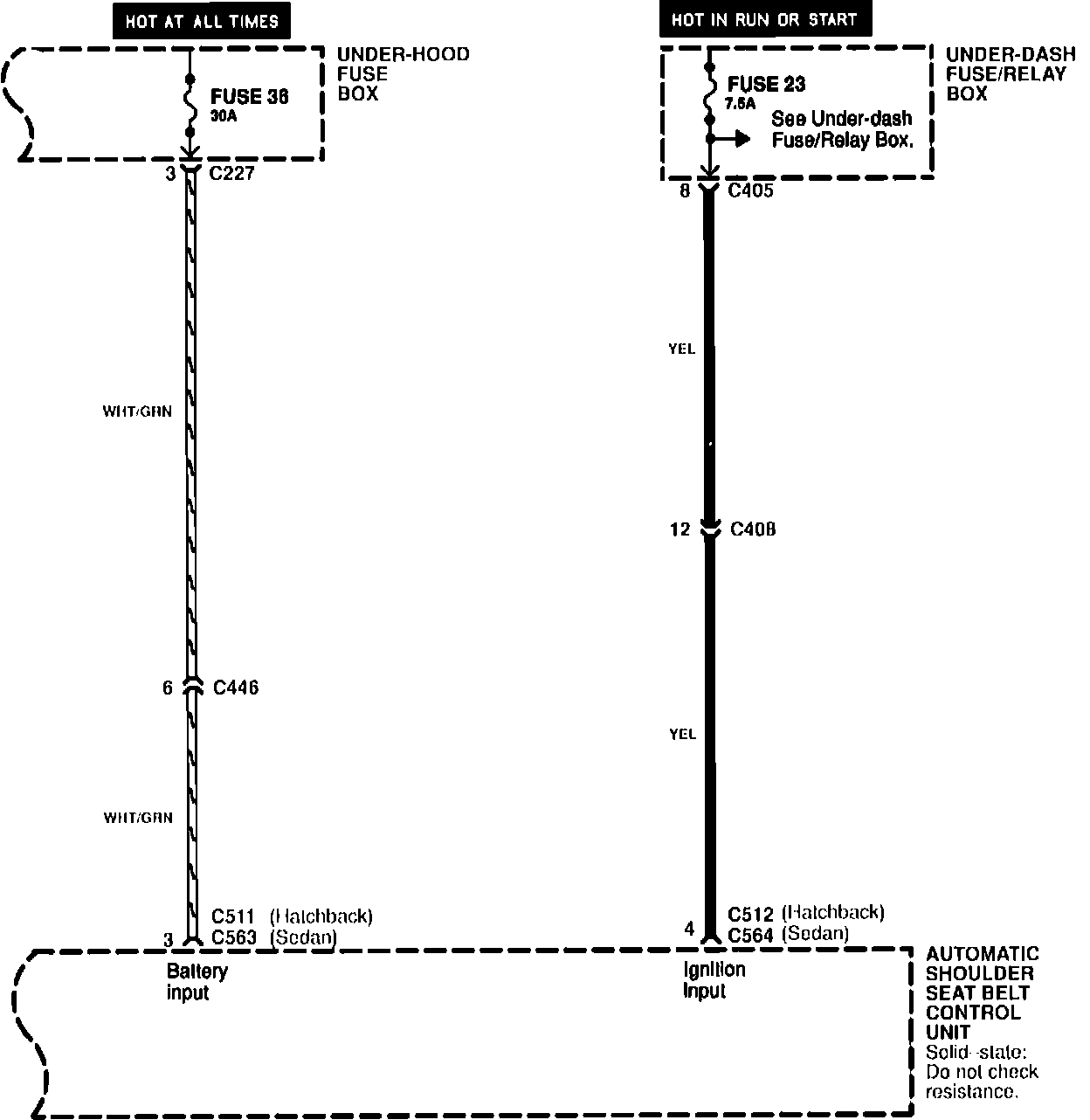

Automatic Shoulder Seat Belts:

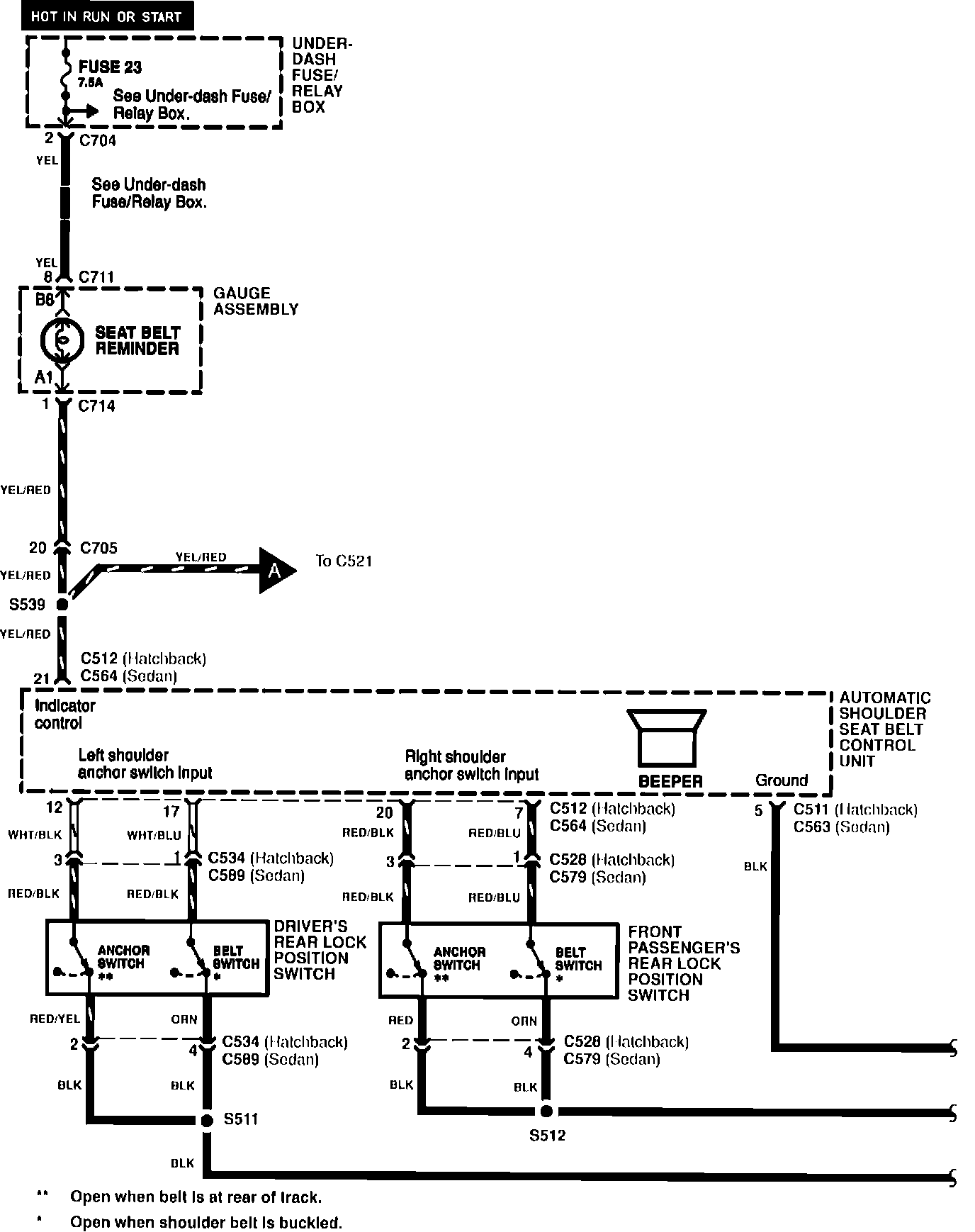

Automatic Shoulder Seat Belts:

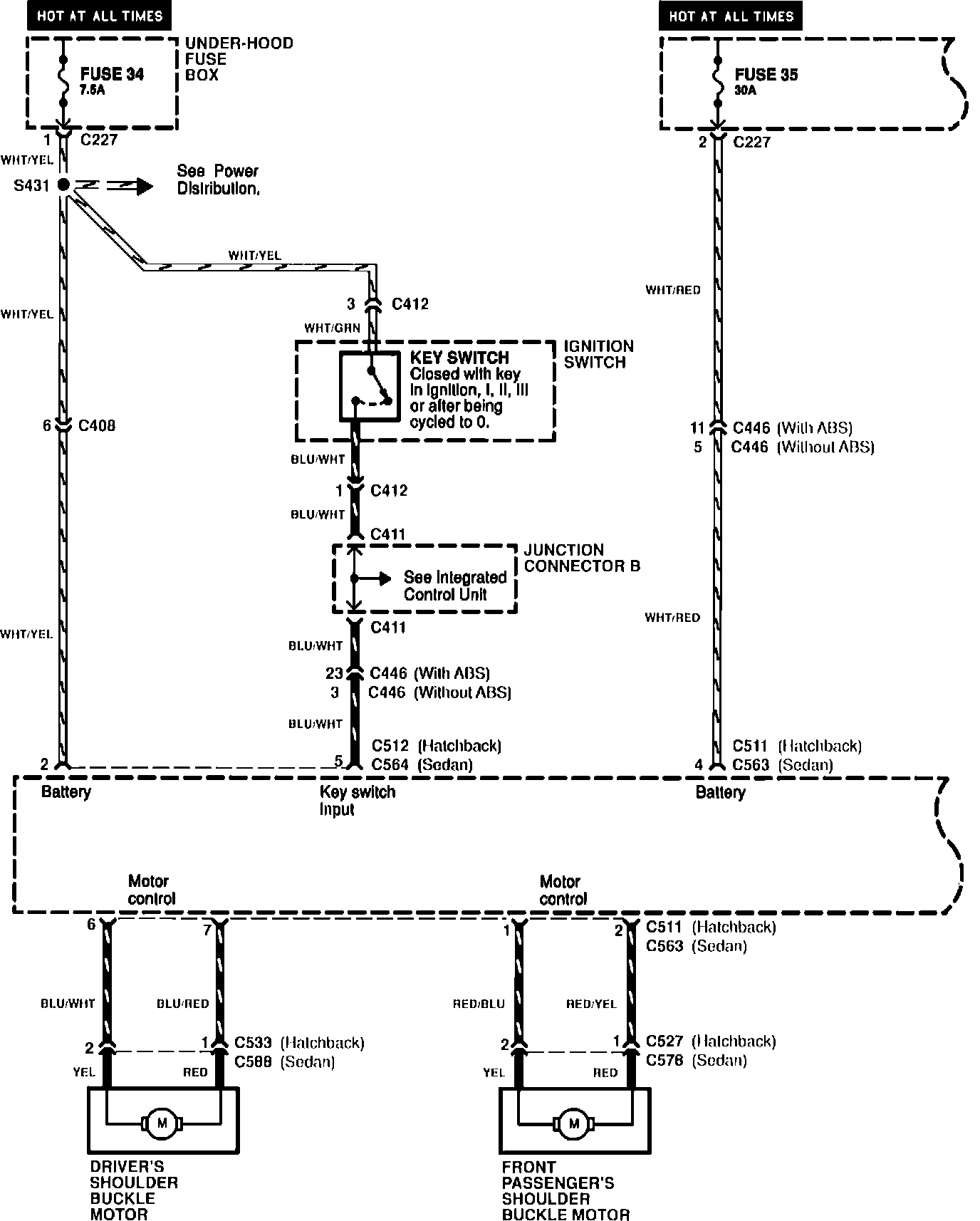

Automatic Shoulder Seat Belts:

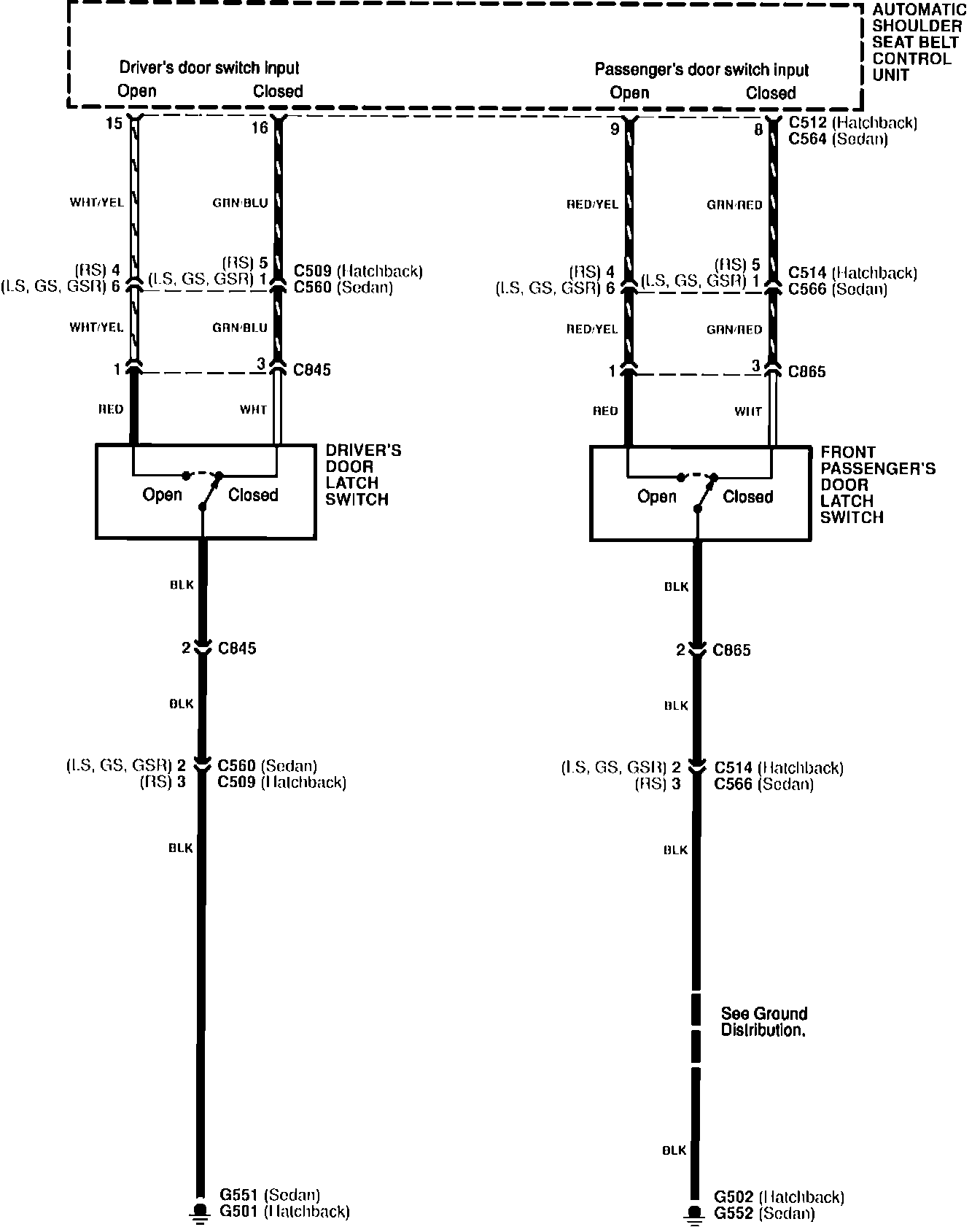

Automatic Shoulder Seat Belts:

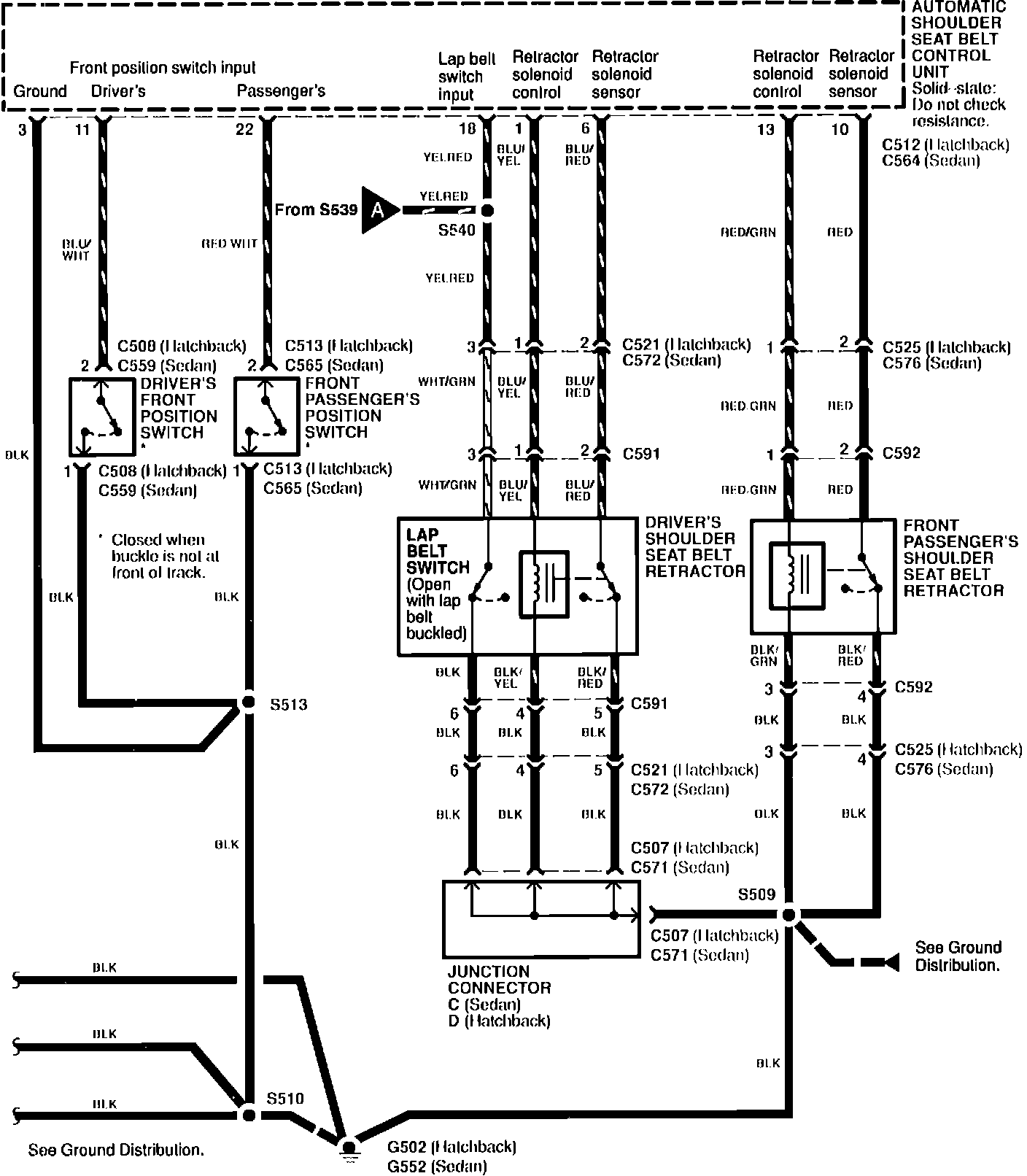

Automatic Shoulder Seat Belts:
