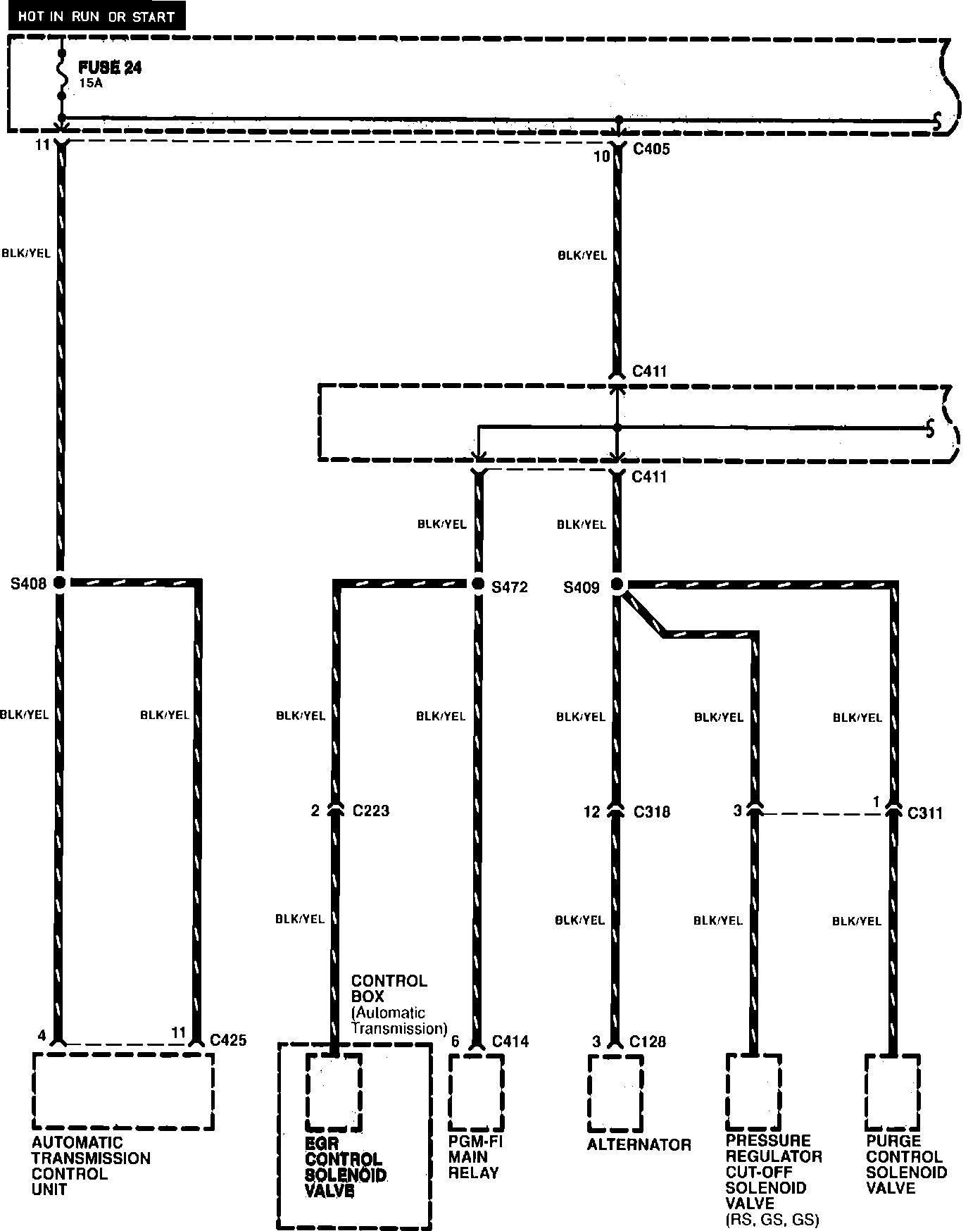

Fuse 24

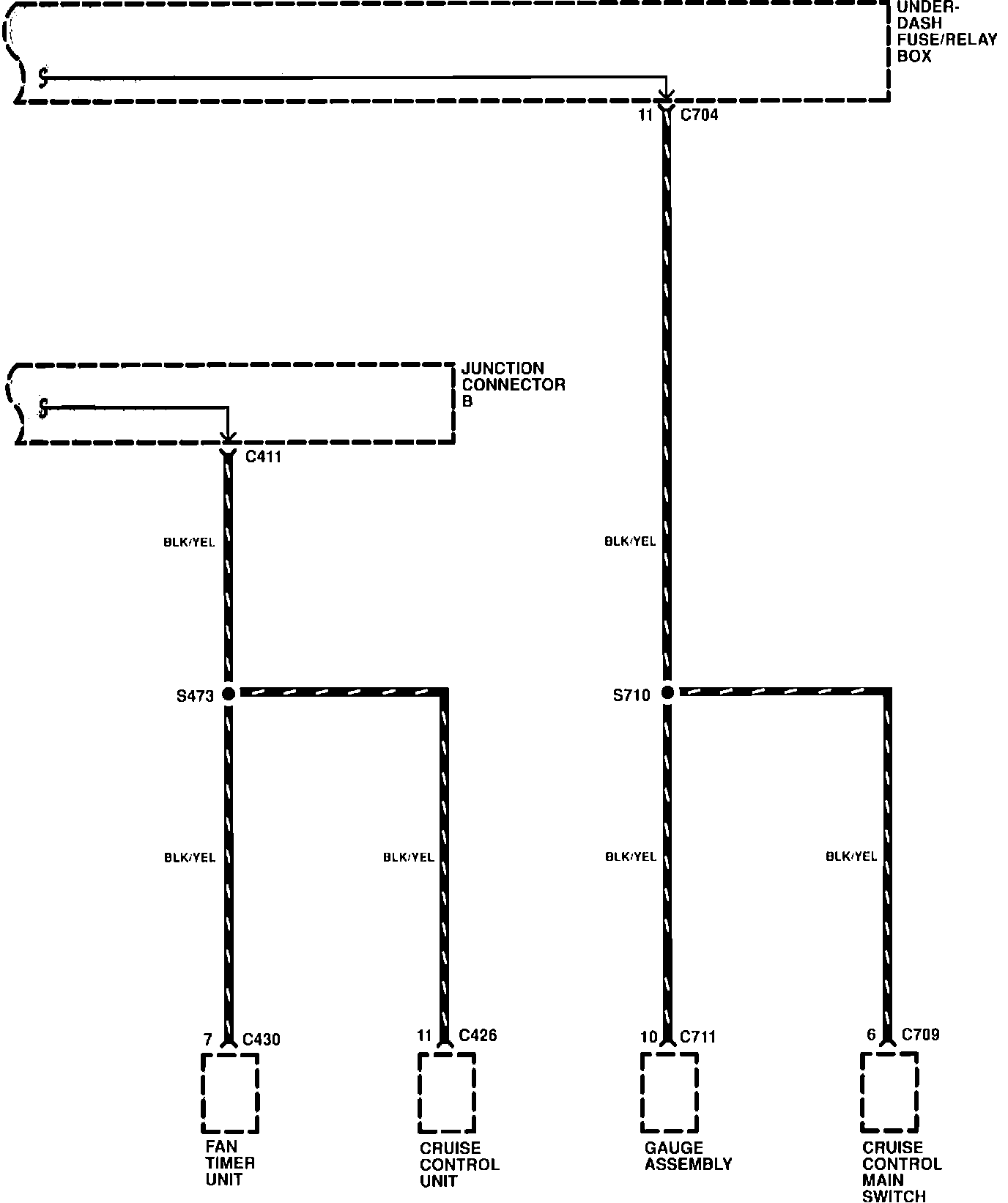

Power Distribution: Under-dash Fuse/Relay Box:



Power Distribution: Under-dash Fuse/Relay Box:
