DTC 3

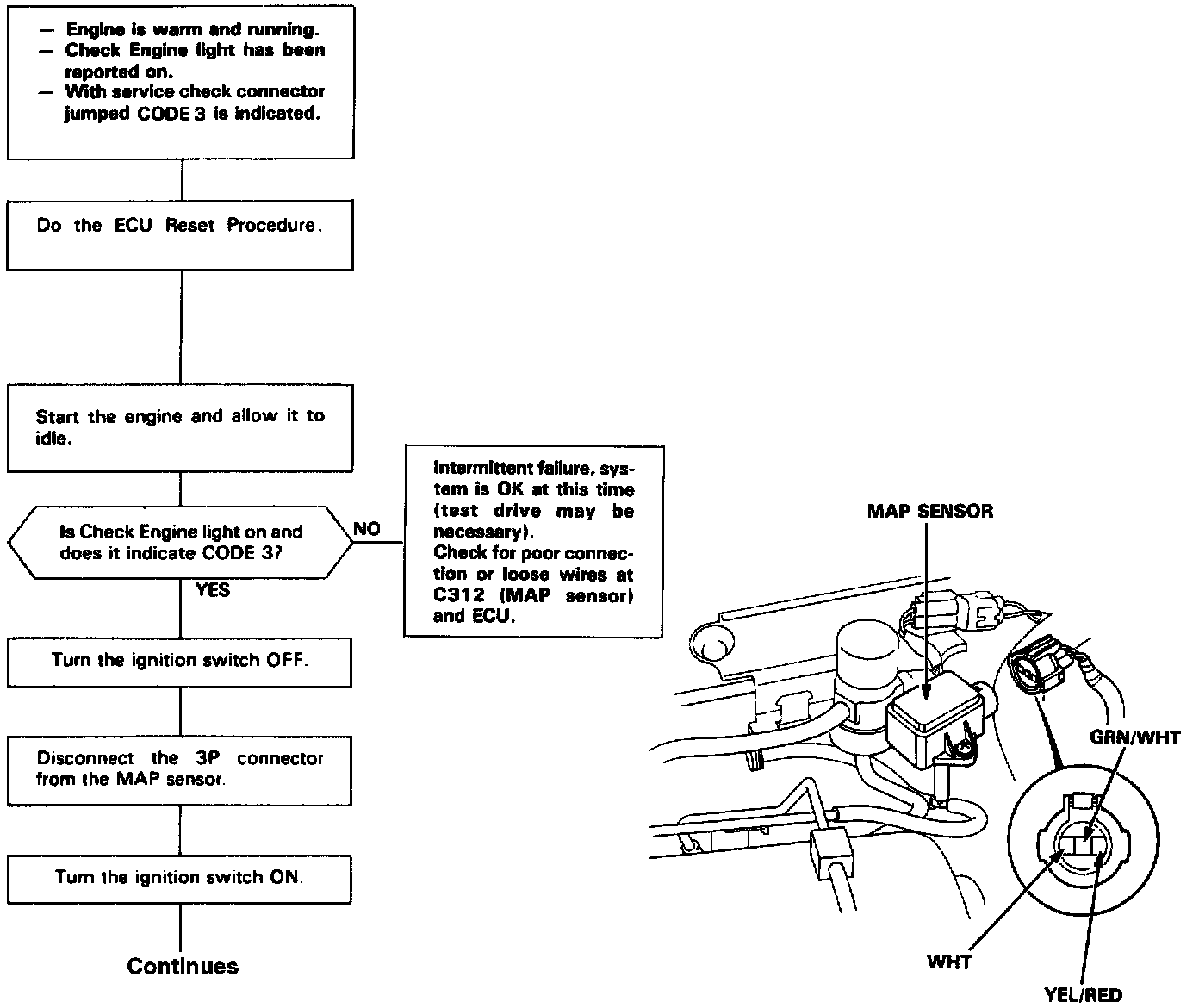

Self-diagnosis Check Engine light indicates code 3: An electrical problem in the Manifold Absolute Pressure (MAP) Sensor system.

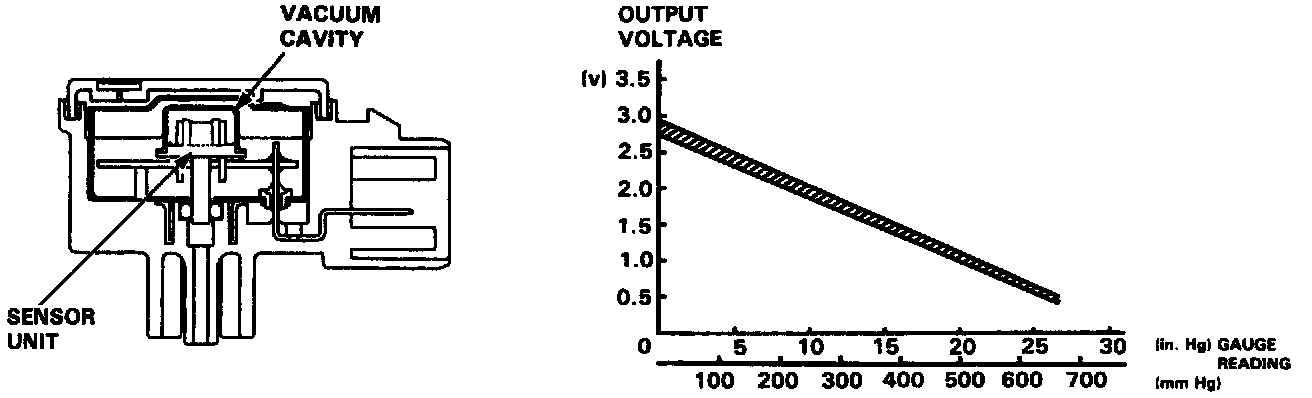

The MAP sensor converts manifold absolute pressure into electrical signals and inputs the ECU.
