Indicator Does Not Light

The SRS Indicator Does Not Light

CAUTION:
- Use only a digital multimeter (KS-AHM-32-003) to check the system.

NOTE: Before disconnecting the battery, be sure you get the customer's anti-theft radio code number (L, LS model)

SRS Indicator Does Not Light - Part 1:

SRS Indicator Does Not Light - Part 2:

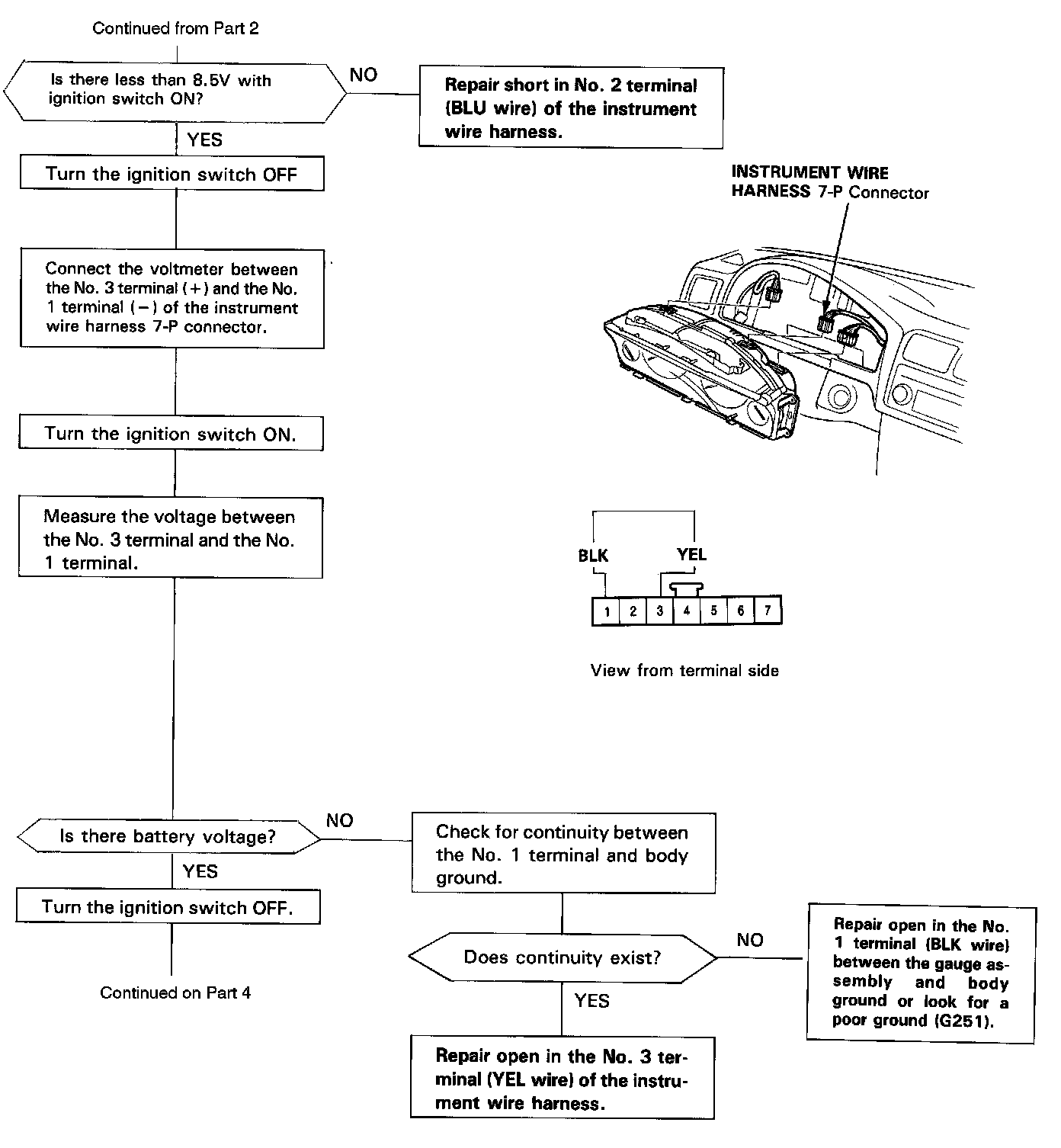

SRS Indicator Does Not Light - Part 3:

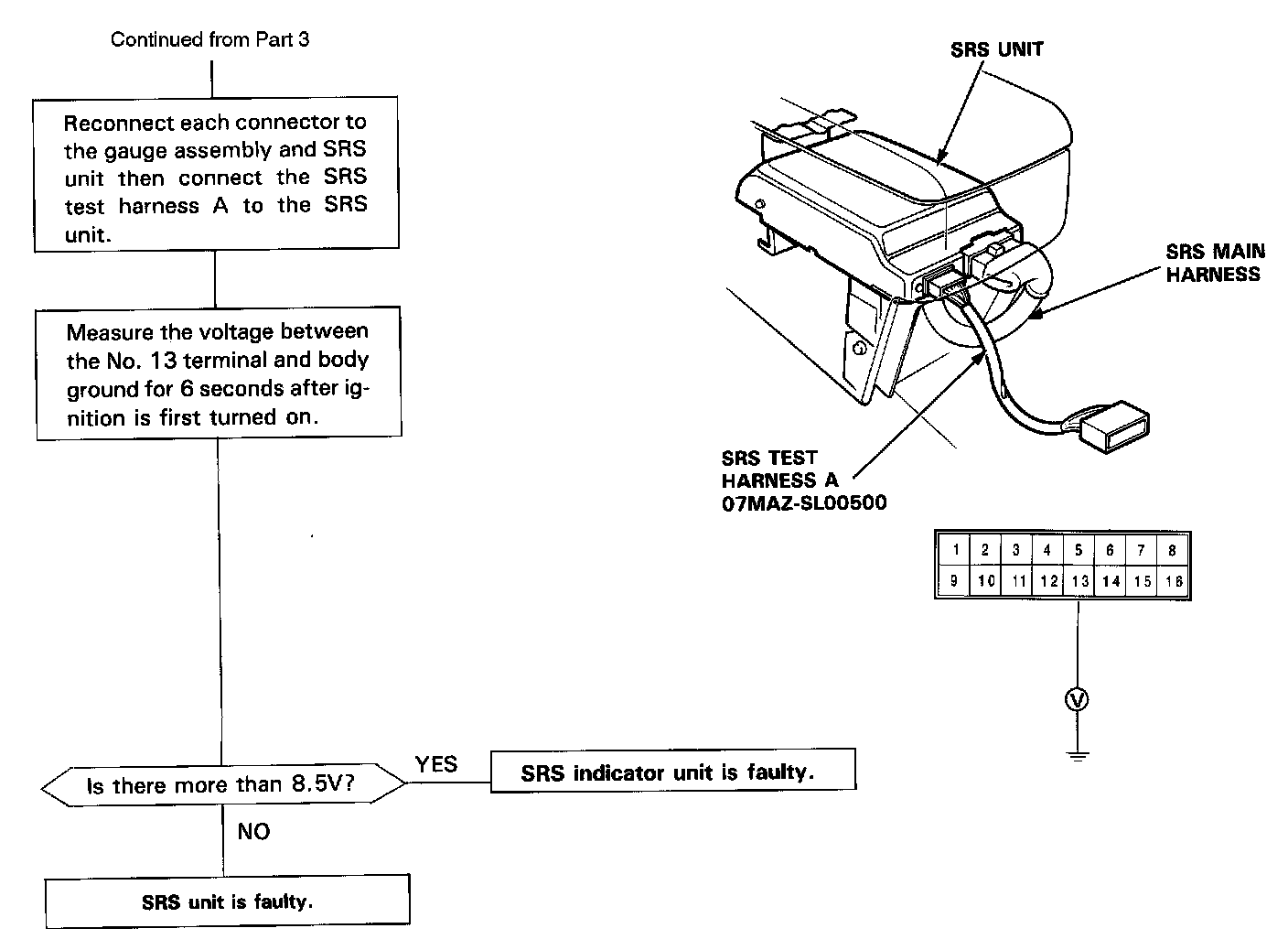

SRS Indicator Does Not Light - Part 4:
