Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
1991
>>
Legend Sedan V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

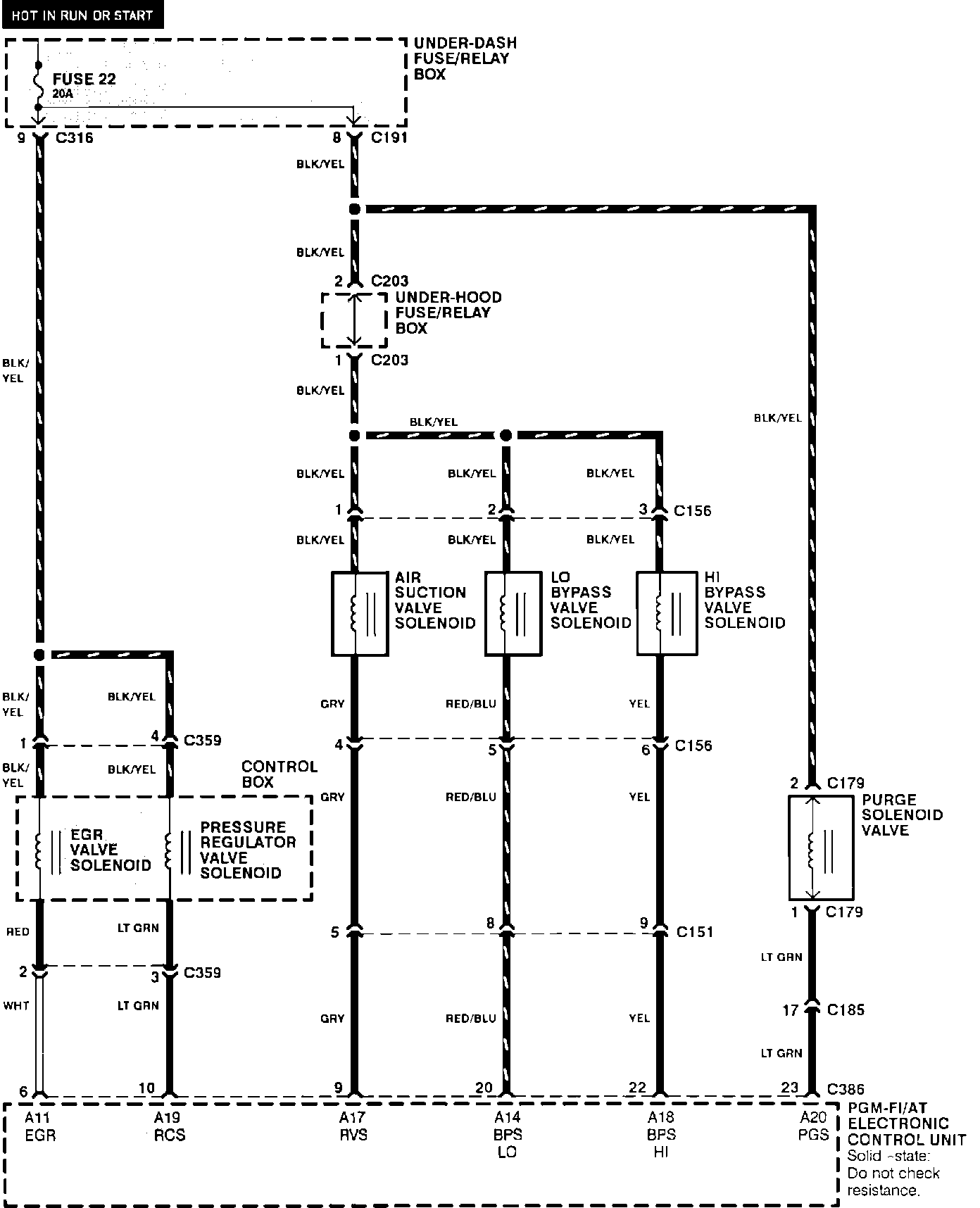

Engine Management: Emission Controls:
