Auxiliary Air Valve (Idle Speed): Service and Repair

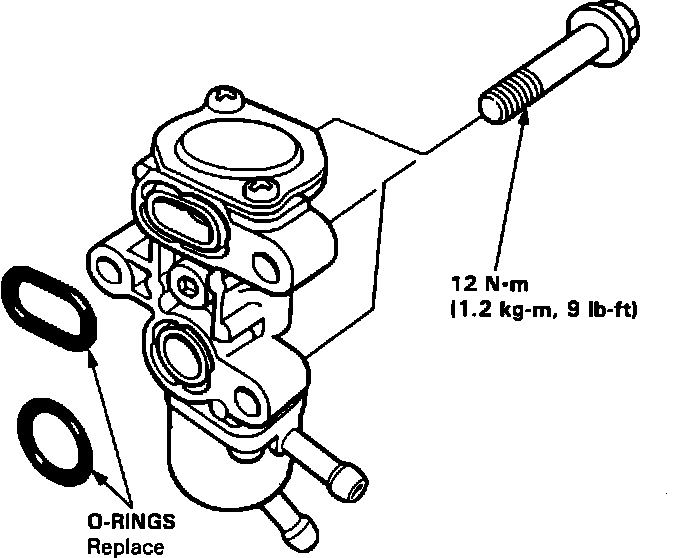

Fast Idle Valve Installation:

1. Remove and plug coolant hoses from fast idle valve
2. Remove attaching bolts (3).
3. Clean and inspect bypass ports.
4. Re-assemble in reverse order using NEW O-rings.
5. Torque retainer bolts to:

9 ft.lbs. (1.2 kg-m)
