Acura
>>
1991
>>
Legend Sedan V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 16
Fuse 16

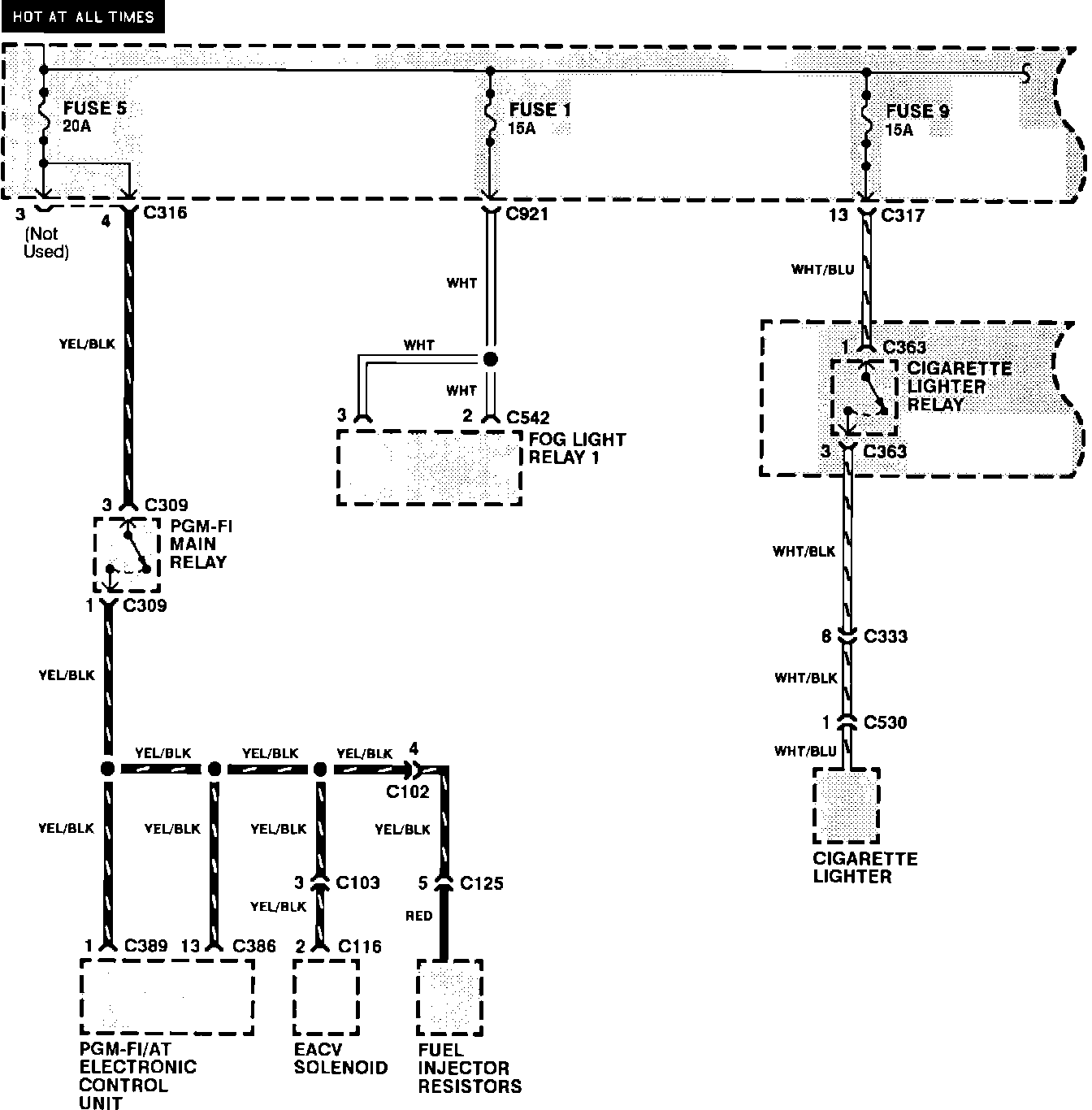

Power Distribution: Fuses 1, 5, 9, 10, 15 And 16:

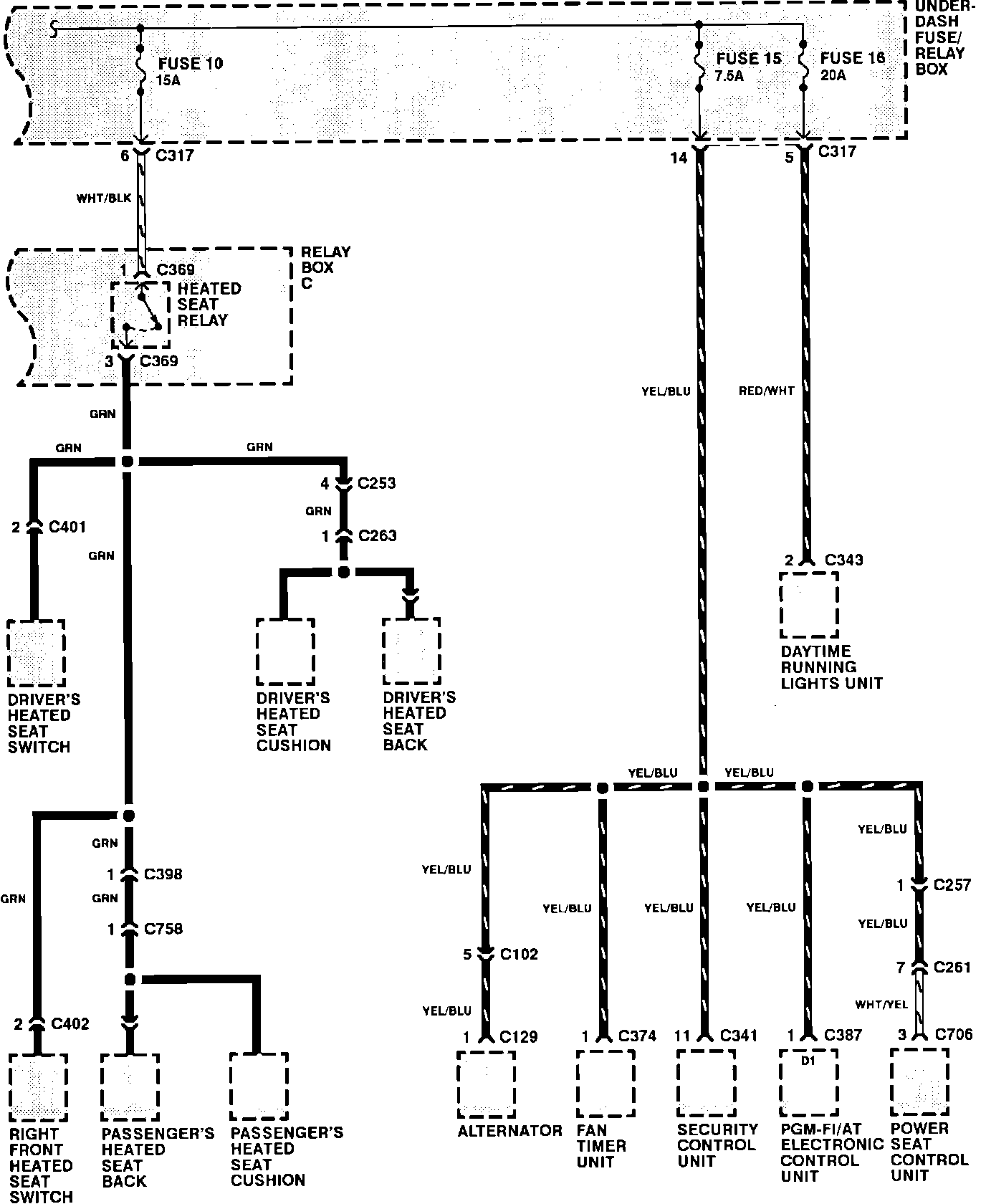

Power Distribution: Fuses 1, 5, 9, 10, 15 And 16:
