Panel Illumination Control Module: Testing and Inspection

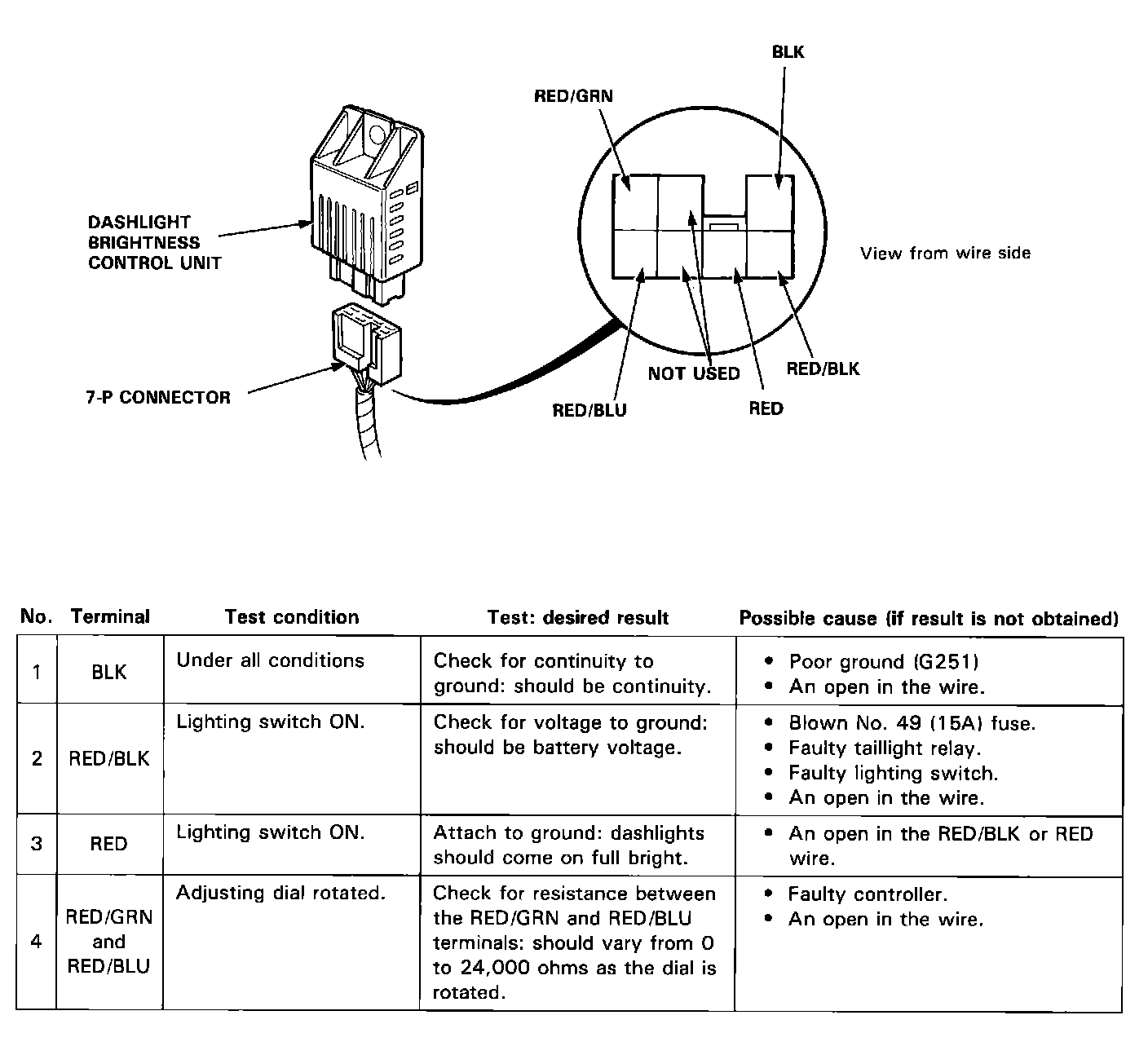

Control Unit Input Test
Disconnect the 7-P connector from the control unit. Make the following input tests at the harness pins. If all tests prove OK, yet the dashlights still cannot be controlled, check the connector for a good connection. If OK, substitute a known-good control unit and recheck.

Controller Resistance Test

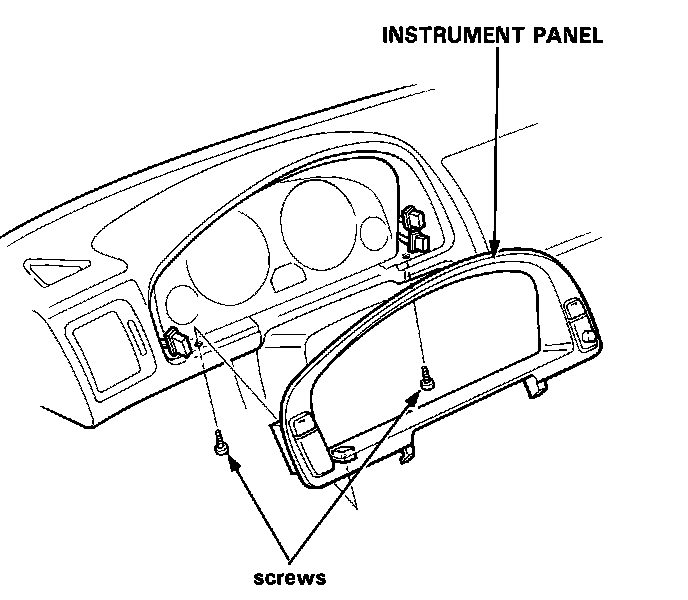

1. Remove the 2 screws, then disconnect each switch connector and remove the instrument panel.

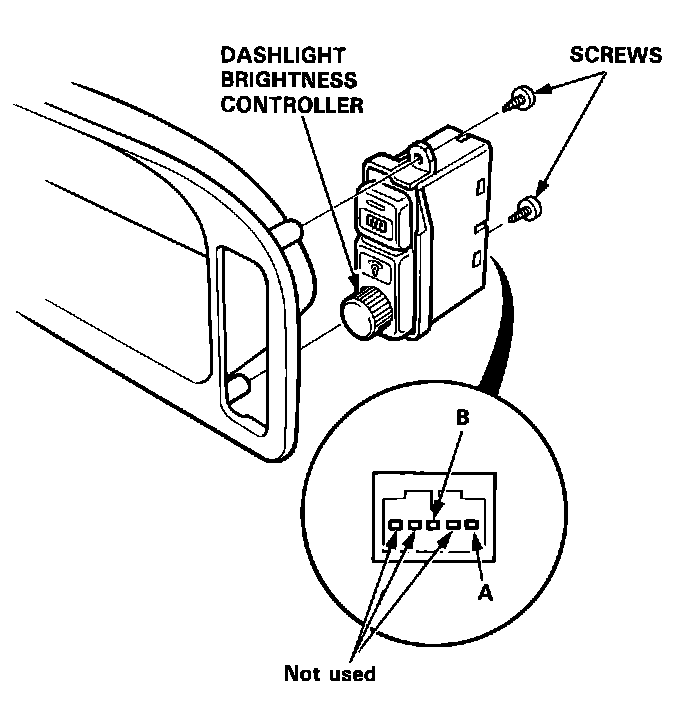

2. Remove the dashlight brightness controller from the instrument panel.





3. Measure resistance between A and B terminals while rotating the adjusting dial.

Resistance should vary from 0 to 24,000 ohms as the dial is rotated.

NOTE: Resistance will vary slightly with temperature.

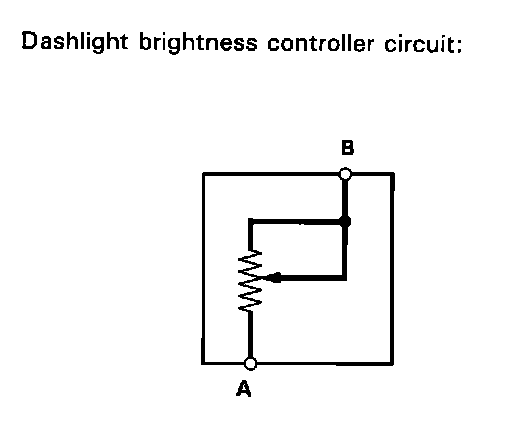

Dashlight Brightness Controller Circuit
