Climate Control Unit - Automatic Climate Control
Climate Control Unit - Automatic Climate Control

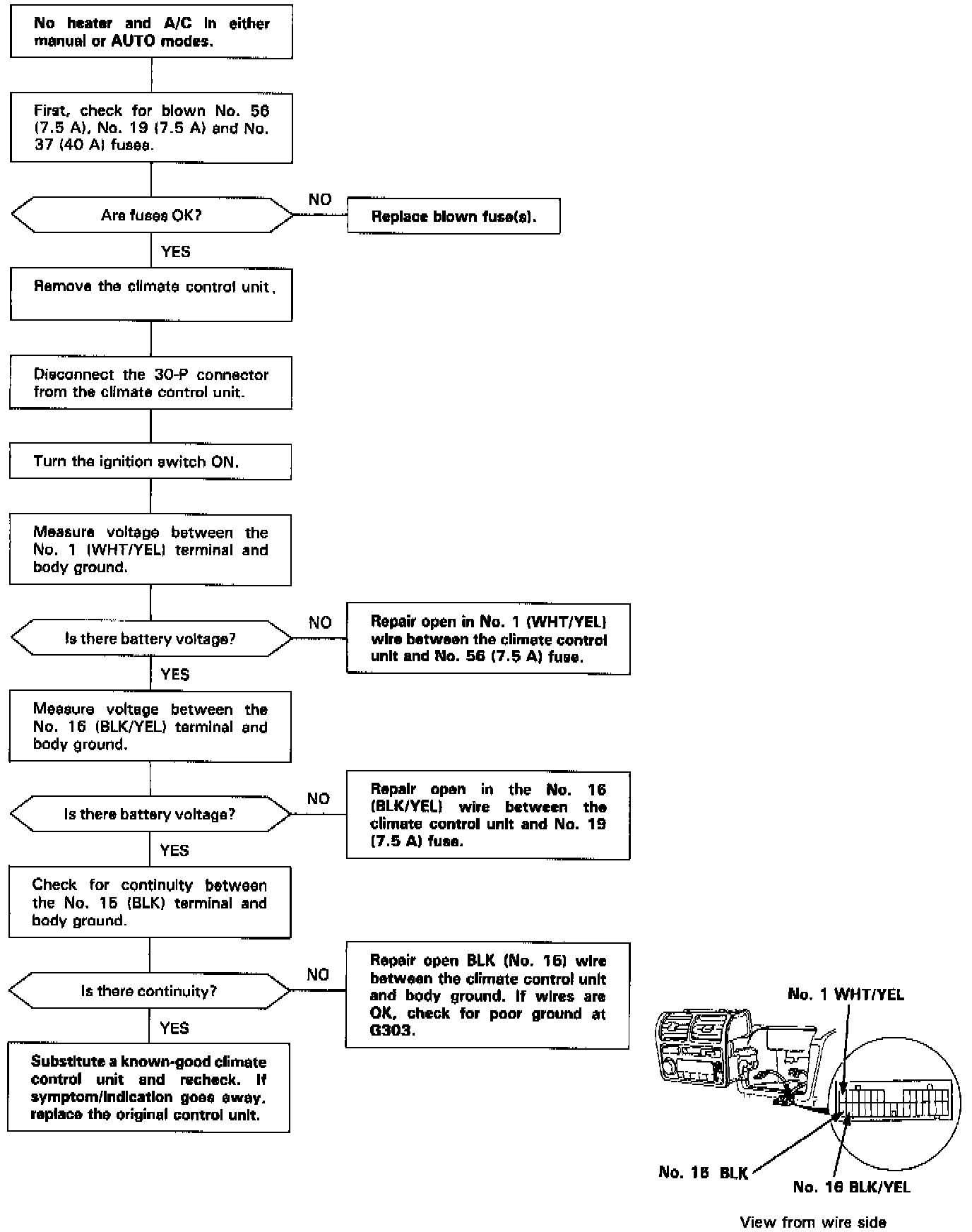

Power Circuits To A/C Control Unit:
